这里本人使用的系统为Win10，Qt为5.14，编译器为WinGW

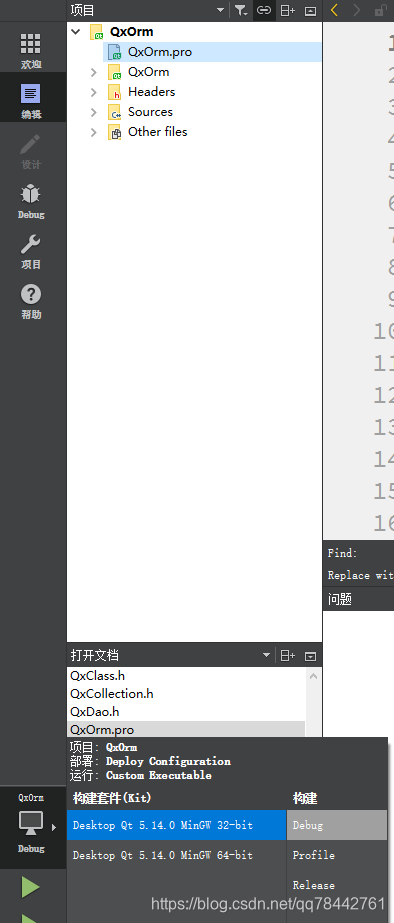

这里先简单说明下首先是用WinGW编译下QxOrm源码：

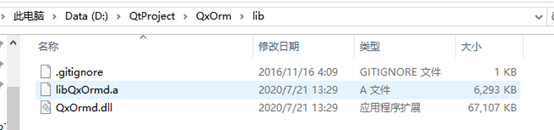

编译好后会在lib下生成dll以及.a（我这里是使用WinGW）
新建一个项目，结构是这样的：
这里有几个关键的地方一个是QxOrm，相当于使用QxOrm的配置文件。
以及export.h和precompiled.h都是必备的，并且这个需要在profile文件中进行配置：
源码如下：
export.h
#ifndef PRECOMPILED_H
#define PRECOMPILED_H
#include <QxOrm.h>
#include "export.h"
#endif // PRECOMPILED_H关键的是其qxDemo1.pro
include(./QxOrm/QxOrm.pri)
INCLUDEPATH += D:/QtProject/QxOrm/include
LIBS += -LD:\QtProject\QxOrm\lib
CONFIG(debug, debug|release) {
TARGET = Demo
LIBS += -l"QxOrmd"
} else {
TARGET = Demo
LIBS += -l"QxOrm"
})
DEFINES += _BUILDING_QX_DEMO
QT -= gui
!contains(DEFINES, _QX_NO_PRECOMPILED_HEADER) {
PRECOMPILED_HEADER = ./precompiled.h
} # !contains(DEFINES, _QX_NO_PRECOMPILED_HEADER)
CONFIG += c++11 console
CONFIG -= app_bundle
# The following define makes your compiler emit warnings if you use
# any Qt feature that has been marked deprecated (the exact warnings
# depend on your compiler). Please consult the documentation of the
# deprecated API in order to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS
# You can also make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000 # disables all the APIs deprecated before Qt 6.0.0
SOURCES += \
main.cpp \
user.cpp
# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += target
HEADERS += \
export.h \
precompiled.h \
user.h这里有几个地方要注意的：
通过下面这个脚本配置好QxOrm
其次是设置好链接库目录和文件包含：
设置好对应的动态链接库：
定义好预编译文件：
其他代码如下：
user.h
#ifndef USER_H
#define USER_H
class QX_DEMO_DLL_EXPORT User{
public:
int id;
QString name;
int age;
double capacity;
User(): id(1){}
virtual ~User(){}
};
QX_REGISTER_PRIMARY_KEY(User, int)
QX_REGISTER_HPP_QX_DEMO(User, qx::trait::no_base_class_defined, 0)
typedef std::shared_ptr<User> User_ptr;
typedef qx::QxCollection<int, User_ptr> List_user;
#endif // USER_Huser.cpp
#include <QCoreApplication>
#include <QxOrm_Impl.h>
#include <QDebug>
#include "precompiled.h"
#include "user.h"
int main(int argc, char *argv[])
{
QCoreApplication a(argc, argv);
QFile::remove("D:\\QtProject\\build-qxDemo1-Desktop_Qt_5_14_0_MinGW_32_bit-Debug\\qxDemo1.sqlite");
qx::QxSqlDatabase::getSingleton()->setDriverName("QSQLITE");
qx::QxSqlDatabase::getSingleton()->setDatabaseName("D:\\QtProject\\build-qxDemo1-Desktop_Qt_5_14_0_MinGW_32_bit-Debug\\qxDemo1.sqlite");
qx::QxSqlDatabase::getSingleton()->setHostName("localhost");
qx::QxSqlDatabase::getSingleton()->setUserName("root");
qx::QxSqlDatabase::getSingleton()->setPassword("");
qx::QxSqlDatabase::getSingleton()->setFormatSqlQueryBeforeLogging(true);
qx::QxSqlDatabase::getSingleton()->setDisplayTimerDetails(true);
qx::QxSqlDatabase::getSingleton()->setVerifyOffsetRelation(true);
//更具上面类型创建表
QSqlError daoError = qx::dao::create_table<User>();
User_ptr user_1, user_2;
user_1.reset(new User);
user_2.reset(new User);
user_1->id = 1;
user_1->name = "猪小明";
user_1->age = 18;
user_1->capacity = 99.9;
user_2->id = 2;
user_2->name = "球球";
user_2->age = 18;
user_2->capacity = 99999.9;
QSqlDatabase db = qx::QxSqlDatabase::getDatabase();
bool bCommit = db.transaction();
//猪小明入库
daoError = qx::dao::insert(user_1, &db);
bCommit = (bCommit && ! daoError.isValid());
qAssert(bCommit);
db.commit();
//球球入库
daoError = qx::dao::save(user_2);
bCommit = !daoError.isValid();
qAssert(bCommit);
//通过SQL进行检索，映射到 typedef qx::QxCollection<int, User_ptr> List_user;中
List_user list_user;
qx_query storedProc("select * from user");
daoError = qx::dao::execute_query(storedProc, list_user);
List_user::iterator it = list_user.begin();
qDebug() << "------------------华丽的分割线------------------";
while(it != list_user.end()){
qDebug() << "id:" << it.i->t().second->id;
qDebug() << "name:" << it.i->t().second->name;
qDebug() << "age:" << it.i->t().second->age;
qDebug() << "capacity:" << it.i->t().second->capacity;
it++;
}
qDebug() << "------------------华丽的分割线------------------";
//修改下
it = list_user.begin();
while(it != list_user.end()){
it.i->t().second->capacity = 59.9;
it++;
}
qx::dao::update(list_user);
//新增及删除
User_ptr user_3;
user_3.reset(new User);
user_3->id = 100;
user_3->name = "闰土";
user_3->age = 19;
user_3->capacity = 99999.9999;
list_user.removeByKey(2);
list_user.insert(100, user_3);
qx::dao::save(user_3);
qx::dao::delete_by_id<User>(*user_2);
return a.exec();
}main.cpp
#include "precompiled.h"
#include "user.h"
#include <QxOrm_Impl.h>
QX_REGISTER_CPP_QX_DEMO(User)
namespace qx{
template <> void register_class(QxClass<User> &t){
t.id(&User::id, "id");
t.data(&User::age, "age");
t.data(&User::name, "name");
t.data(&User::capacity, "capacity");
}

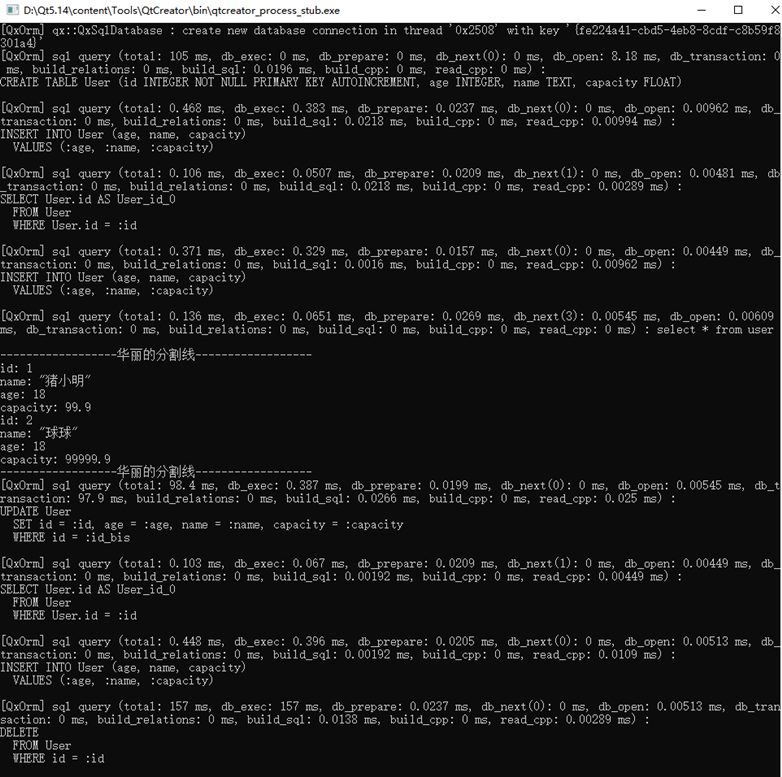

}程序运行截图如下：
这里是先添加了2条数据，然后再添加1条，再删除一条，最后数据库中文件是这样的：
源码打包下载地址：
