Docker 之 搭建Harbor私有镜像仓库并验证成功



1. 必备环境：
   CentOS 7.6 64位、docker、docker-compose、Harbor安装包
2. docker环境上篇文章已经记录，可以参考https://blog.csdn.net/N4start/article/details/104031762
3. 接下来安装docker-compose

   [root@VM_0_11_centos ~]# curl -L https://github.com/docker/compose/releases/download/1.22.0/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose

4. 然后授权限

   [root@VM_0_11_centos ~]# chmod +x /usr/local/bin/docker-compose
5. 就可以查看到docker-compose的版本了

   [root@VM_0_11_centos ~]# docker-compose -version
   docker-compose version 1.22.0, build f46880fe

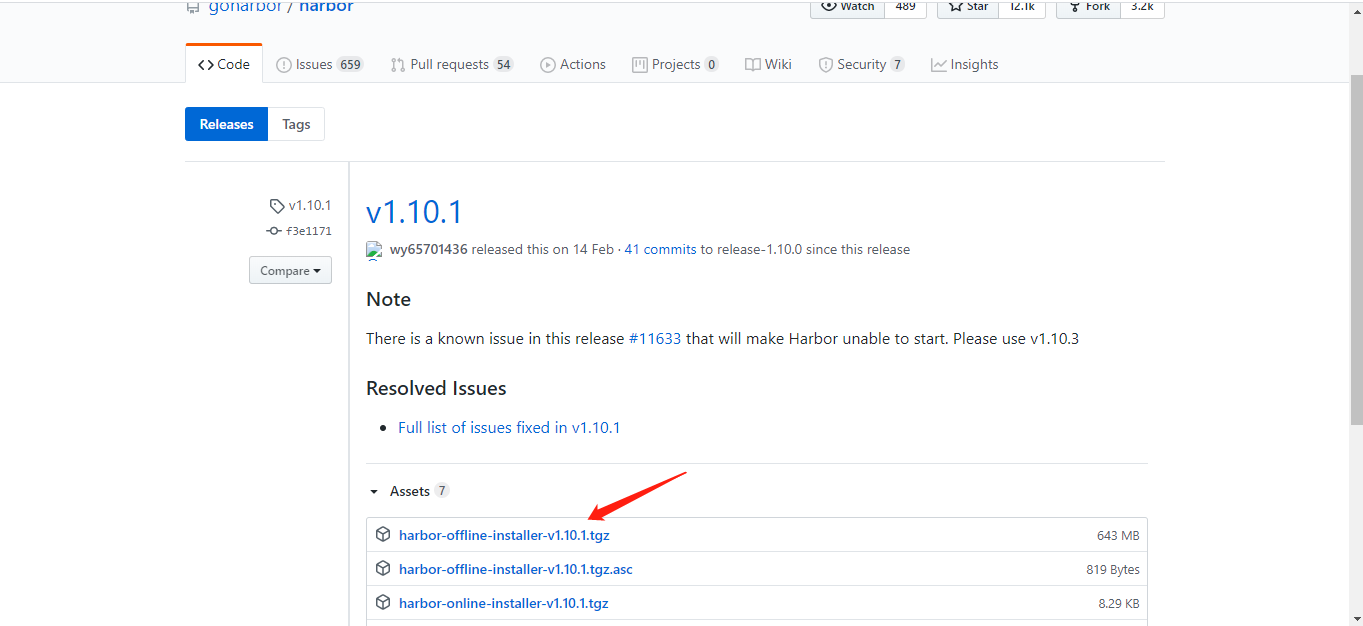

6.  下载安装harbor包：点击github查看下载
7. 拷贝进文件夹，解压：

8. [root@VM_0_11_centos /]# mkdiir /harbor
   [root@VM_0_11_centos /]# cd /harbor/
   [root@VM_0_11_centos harbor]#tar -xzvf harbor-offline-installer-v1.10.1.tgz


   解压完成后，进入harbor文件夹，修改配置文件：

   [root@VM_0_11_centos harbor]# cd ./harbor/
   [root@VM_0_11_centos harbor]# ls
   ca.key  common  common.sh  docker-compose.yml  harbor.v1.10.1.tar.gz  harbor.yml  install.sh  LICENSE  prepare
   [root@VM_0_11_centos harbor]# vim harbor.yml



9. harboe.yml里面简单修改：
   #hostname为服务器本机ip
   hostname: ip


   #采用http，port为harbor的访问端口，自行定义，默认80，但因为很多时候80是常用端口，避免占用，自行修改，注释https配置

   http:
     # port for http, default is 80. If https enabled, this port will redirect to https port
     port: 8881

   # https related config
   #https:
     # https port for harbor, default is 443
    # port: 443
     # The path of cert and key files for nginx
     #certificate: /your/certificate/path
     #private_key: /your/private/key/path


   #harbor_admin_password 为管理员登录密码，账号为admin，密码自行设置
   harbor_admin_password: password


   # Harbor DB configuration
   database:
     # The password for the root user of Harbor DB. Change this before any production use.
   #password 为数据库密码，自行设置
     password: password
     # The maximum number of connections in the idle connection pool. If it <=0, no idle connections are retained.
     max_idle_conns: 50
     # The maximum number of open connections to the database. If it <= 0, then there is no limit on the number of open connections.
     # Note: the default number of connections is 100 for postgres.
     max_open_conns: 100

10. 修改配置完，安装

    [root@VM_0_11_centos harbor]# ./install.sh

    等待安装即可。

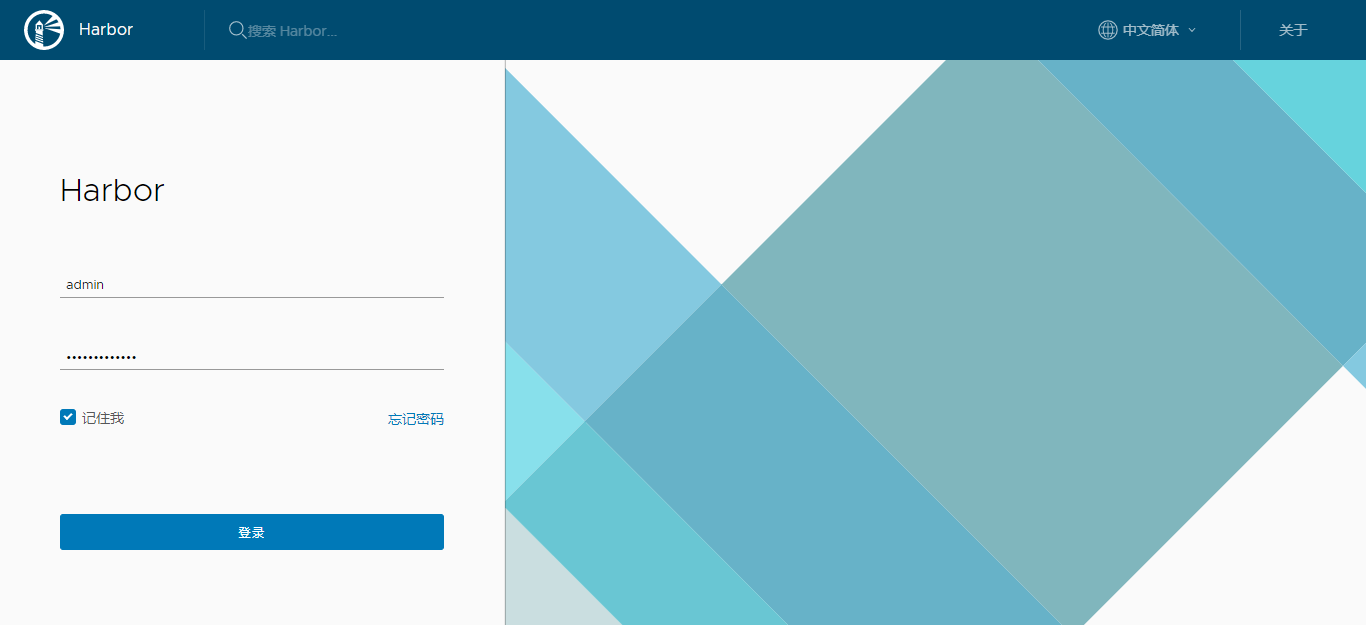

11. 打开浏览器，访问http://ip:port/（ip和port均为配置文件设置的值）
    登录密码为配置文件设置,登录后，新建一个test项目：

12. 这时，我们需要添加私有仓库地址配置才可以在宿主机上登录harbor

    [root@VM_0_11_centos harbor]# vim /etc/docker/daemon.json


    把配置添加进去：
    #注意：这里的ip为服务器ip，端口为配置文件port
    {
    "registry-mirrors": ["https://zydiol88.mirror.aliyuncs.com"],
    "insecure-registries": ["ip:port"]
    }
    执行重启：

    #使配置生效
    [root@VM_0_11_centos harbor]# systemctl daemon-reload
    #重启docker
    [root@VM_0_11_centos harbor]# systemctl restart docker
    #停harbor
    [root@VM_0_11_centos harbor]# docker-compose down
    #启动harbor
    [root@VM_0_11_centos harbor]# docker-compose up -d


    此时就可以在宿主机登录harbor了,ip和端口为配置文件设置值，第一次登录需要输入账号密码：

    [root@VM_0_11_centos harbor]# docker login XXX.XXX.XX.XX:XXXX
    Authenticating with existing credentials...
    WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
    Configure a credential helper to remove this warning. See
    https://docs.docker.com/engine/reference/commandline/login/#credentials-store

    Login Succeeded




13. 我们需要在docker镜像里面，找一个测试镜像进行打标签：

    #镜像列表
    [root@VM_0_11_centos harbor]# docker images
    mytomcat                              latest                           a881f3836c33        2 days ago          652MB
    tomcat                                latest                           f6ffbe316e00        2 days ago          652MB
    goharbor/chartmuseum-photon           v0.9.0-v1.10.1                   0245d66323de        4 months ago        128MB
    goharbor/harbor-migrator              v1.10.1                          a4f99495e0b0        4 months ago        364MB
    goharbor/redis-photon                 v1.10.1                          550a58b0a311        4 months ago        111MB
    goharbor/clair-adapter-photon         v1.0.1-v1.10.1                   2ec99537693f        4 months ago        61.6MB
    goharbor/clair-photon                 v2.1.1-v1.10.1                   622624e16994        4 months ago        171MB
    goharbor/notary-server-photon         v0.6.1-v1.10.1                   e4ff6d1f71f9        4 months ago        143MB
    goharbor/notary-signer-photon         v0.6.1-v1.10.1                   d3aae2fc17c6        4 months ago        140MB
    goharbor/harbor-registryctl           v1.10.1                          ddef86de6480        4 months ago        104MB
    goharbor/registry-photon              v2.7.1-patch-2819-2553-v1.10.1   1a0c5f22cfa7        4 months ago        86.5MB
    goharbor/nginx-photon                 v1.10.1                          01276d086ad6        4 months ago        44MB
    goharbor/harbor-log                   v1.10.1                          1f5c9ea164bf        4 months ago        82.3MB
    goharbor/harbor-jobservice            v1.10.1                          689368d30108        4 months ago        143MB
    goharbor/harbor-core                  v1.10.1                          14151d58ac3f        4 months ago        130MB
    goharbor/harbor-portal                v1.10.1                          8a9856c37798        4 months ago        52.1MB
    goharbor/harbor-db                    v1.10.1                          18548720d8ad        4 months ago        148MB
    goharbor/prepare                      v1.10.1                          897a4d535ced        4 months ago        192MB

    #打tag，例如:docker tag 镜像名:标签 私服地址/仓库项目名/镜像名:标签
    [root@VM_0_11_centos harbor]# docker tag mytomcat:latest ip:port/test/tomcat-test:v1.0


    推送镜像到私有仓库：

    # 推送 ，例如：docker push  私有仓库地址/仓库项目名/镜像名：标签
    [root@VM_0_11_centos harbor]# docker push ip:port/test/tomcat-test:v1.0

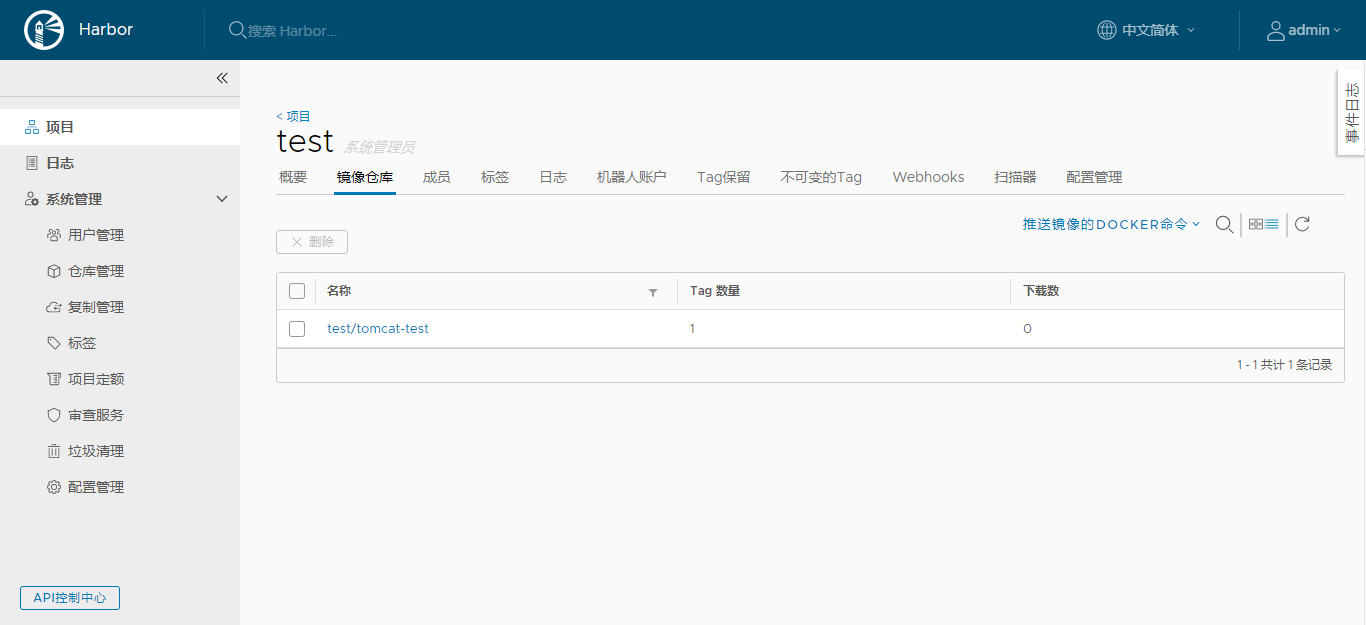

14. 等到推送成功，再次进去harbor的ui界面，即可看到推送的镜像：
    至此，harbor搭建完成！
