EMQ服务器学习2 mqtt和springboot的整合实现消息推送和发送

注：本次demo参考博客https://blog.csdn.net/zhangxing52077/article/details/80568244

并在原文的基础上进行了改造，以及加上一些自己对代码设计方面的一些理解。

代码放在了github上 地址：https://github.com/wws11/springboot-mqttdemo

EMQ服务器为我们提供了一个控制面板界面，在本地访问：http://192.168.3.93:18083/

默认账户：admn 密码public 当然这些可以配置，需要的自行百度。

登录进来是这样的界面：

默认是英文的界面，可以在下面的seting里进行设置。

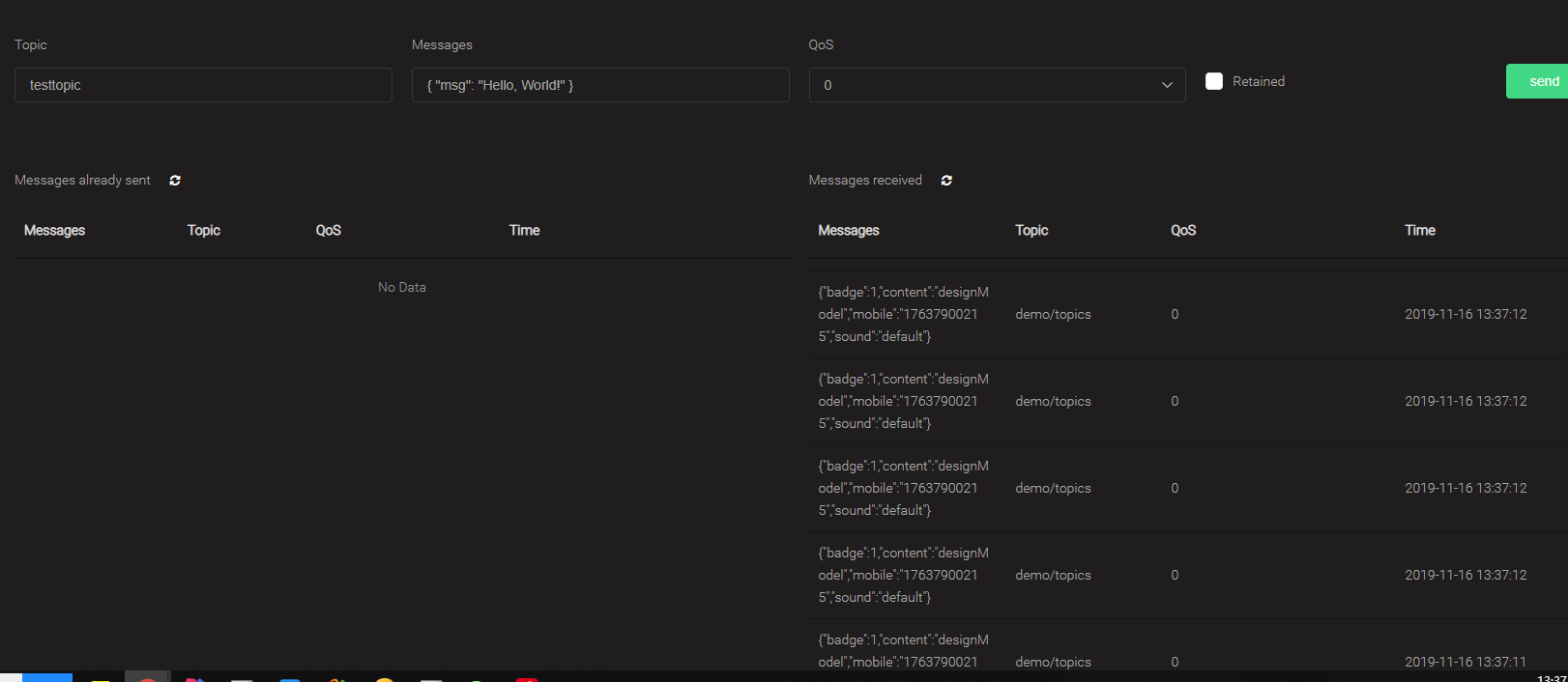

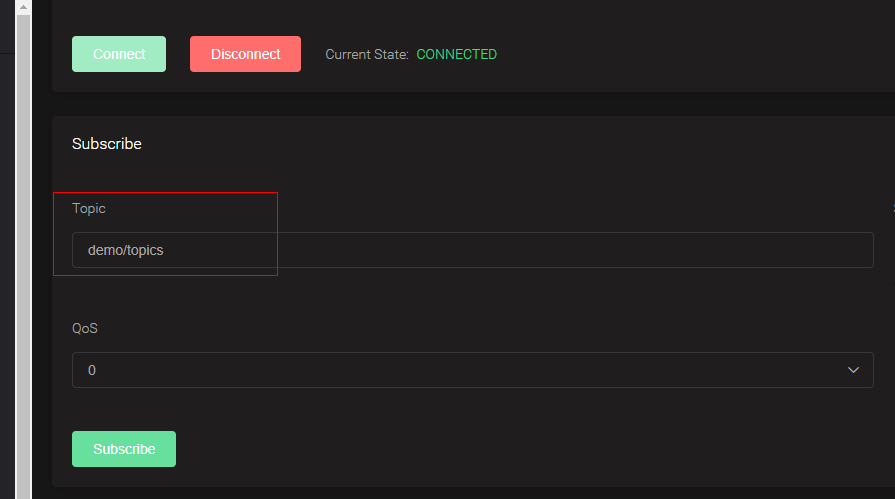

后面用到的是这里的websocket栏，通过这个进行接口的测试。

下面是整合springboot的代码

所需要的依赖

<!--mqtt-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-integration</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.integration</groupId>
            <artifactId>spring-integration-stream</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.integration</groupId>
            <artifactId>spring-integration-mqtt</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.18</version>
        </dependency>

消息publicsh端代码实现

mqtt发送消息的核心类，创建连接使用了单例的方式，

package com.gysoft.emqdemo.server;

import com.gysoft.emqdemo.bean.PushPayload;
import com.gysoft.emqdemo.util.PropertiesUtil;
import lombok.extern.slf4j.Slf4j;
import org.eclipse.paho.client.mqttv3.*;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;
import org.springframework.stereotype.Component;

/**
 *
 * @author 魏文思
 * @date 2019/11/14$ 15:55$
 */
@Slf4j
@Component
public class MqttPushServer {

    private MqttClient client;

    private static volatile MqttPushServer mqttPushClient = null;
    //重连次数
    private int reConnTimes;

    public int getReConnTimes() {
        return this.reConnTimes;
    }

    public void setReConnTimes(int reConnTimes) {
        if (this.isConnected()) {
            reConnTimes = 0;
        }

        this.reConnTimes = reConnTimes;
    }

    public int getMaxReconnTimes() {
        return PropertiesUtil.MQTT_MAXRECONNECTTIMES;
    }

    public int getReconnInterval() {
        return PropertiesUtil.MQTT_RECONNINTERVAL;
    }

    public static MqttPushServer getInstance(){

        if(null == mqttPushClient){
            synchronized (MqttPushServer.class){
                if(null == mqttPushClient){
                    mqttPushClient = new MqttPushServer();
                }
            }

        }
        return mqttPushClient;

    }

    private MqttPushServer() {
        connect();
    }

    public void connect(){
        try {
            client = new MqttClient(PropertiesUtil.MQTT_HOST, PropertiesUtil.MQTT_CLIENTID, new MemoryPersistence());
            MqttConnectOptions options = new MqttConnectOptions();
            /**
             * clean session 值为false,既保留会话，那么该客户端上线的时候，并订阅了主题“r”,那么该主题会一直存在，即使客户端离线，该主题也仍然会记忆在EMQ服务器内存。
             * 当客户端离线又上线时，仍然会接受到离线期间别人发来的publish消息（QOS=0,1,2）.类似及时通讯软件，终端可以接受离线消息。
             * 除非客户端主动取消订阅主题， 否则主题一直存在。另外，mnesia不会持久化session，subscription和topic，服务器重启则丢失。

             * 当clean session 为true
             * 该客户端上线，并订阅了主题“r”，那么该主题会随着客户端离线而删除。
             * 当客户端离线又上线时，接受不到离线期间别人发来的publish消息
             *
             * 不管clean session的值是什么，当终端设备离线时，QoS=0,1,2的消息一律接收不到。
             * 当clean session的值为true，当终端设备离线再上线时，离线期间发来QoS=0,1,2的消息一律接收不到。
             * 当clean session的值为false，当终端设备离线再上线时，离线期间发来QoS=0,1,2的消息仍然可以接收到。如果同个主题发了多条就接收多条，一条不差，照单全收
             *
             */
            options.setCleanSession(false);
            /*options.setUserName(PropertiesUtil.MQTT_USER_NAME);
            options.setPassword(PropertiesUtil.MQTT_PASSWORD.toCharArray());*/
            options.setConnectionTimeout(PropertiesUtil.MQTT_TIMEOUT);
            options.setKeepAliveInterval(PropertiesUtil.MQTT_KEEP_ALIVE);
            try {
                client.setCallback(new PushCallback());
                client.connect(options);
            } catch (Exception e) {
                e.printStackTrace();
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }


    /**
     * 发布，默认qos为0，非持久化
     * @param topic
     * @param pushMessage
     */
    public void publish(String topic,PushPayload pushMessage){
        publish(0, false, topic, pushMessage);
    }

    /**
     * 发布
     * @param qos
     * @param retained
     * @param topic
     * @param pushMessage
     */
    public void publish(int qos,boolean retained,String topic,PushPayload pushMessage){
        MqttMessage message = new MqttMessage();
        message.setQos(qos);
        message.setRetained(retained);
        message.setPayload(pushMessage.toString().getBytes());
        MqttTopic mTopic = client.getTopic(topic);
        if(null == mTopic){
            log.error("topic not exist");
        }
        MqttDeliveryToken token;
        try {
            token = mTopic.publish(message);
            token.waitForCompletion();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /**
     * 订阅某个主题，qos默认为0
     * @param topic
     */
    public void subscribe(String topic){
        subscribe(topic,0);
    }

    /**
     * 订阅某个主题
     * @param topic
     * @param qos
     */
    public void subscribe(String topic,int qos){
        try {
            client.subscribe(topic, qos);
        } catch (MqttException e) {
            e.printStackTrace();
        }
    }
    public boolean isConnected() {
        return client.isConnected();
    }

    public static void main(String[] args) throws Exception {
        String kdTopic = "demo/topics";
        PushPayload pushMessage = PushPayload.getPushPayloadBuider().setMobile("17637900215")
                .setContent("designModel")
                .bulid();
        MqttPushServer.getInstance().publish(0, false, kdTopic, pushMessage);

    }
}

配置类，用于读取mqtt的一些配置，服务器采用本的服务器不需要配置密码，这里我把账号密码都进行了注释

package com.gysoft.emqdemo.util;

import java.io.IOException;
import java.io.InputStream;
import java.util.Properties;

/**
 * @author 魏文思
 * @date 2019/11/14$ 15:56$
 */
public class PropertiesUtil {

    public static String MQTT_HOST;
    public static String MQTT_CLIENTID;
    public static String MQTT_USER_NAME;
    public static String MQTT_PASSWORD;
    public static int MQTT_TIMEOUT;
    public static int MQTT_KEEP_ALIVE;
    public  static String prefixUrl;
    /**
     * 最大重连次数
     */
    public  static int MQTT_MAXRECONNECTTIMES;
     public static  int MQTT_RECONNINTERVAL;



    static {
        MQTT_HOST = loadMqttProperties().getProperty("host");
        MQTT_CLIENTID = loadMqttProperties().getProperty("clientid");
      /*  MQTT_USER_NAME = loadMqttProperties().getProperty("username");
        MQTT_PASSWORD = loadMqttProperties().getProperty("password");*/
        MQTT_TIMEOUT = Integer.valueOf(loadMqttProperties().getProperty("timeout"));
        MQTT_KEEP_ALIVE = Integer.valueOf(loadMqttProperties().getProperty("keepalive"));
        MQTT_MAXRECONNECTTIMES=Integer.valueOf(loadMqttProperties().getProperty("maxReconnectTimes"));
        MQTT_RECONNINTERVAL=Integer.valueOf(loadMqttProperties().getProperty("reconnInterval"));
        prefixUrl = String.valueOf(loadMqttProperties().getProperty("prefixUrl"));
    }



    private static Properties loadMqttProperties() {
        InputStream inputstream = PropertiesUtil.class.getResourceAsStream("/application.yml");
        Properties properties = new Properties();
        try {
            properties.load(inputstream);
            return properties;
        } catch (IOException e) {
            throw new RuntimeException(e);
        } finally {
            try {
                if (inputstream != null) {
                    inputstream.close();
                }
            } catch (IOException e) {
                throw new RuntimeException(e);
            }
        }
    }


}

mqttqos支持的三种类型的枚举类

package com.gysoft.emqdemo.util;

/**
 * @author 魏文思
 * @date 2019/11/15$ 10:27$
 */
public enum QosType {

    QOS_AT_MOST_ONCE(0, "最多一次，有可能重复或丢失"),
    QOS_AT_LEAST_ONCE(1, "至少一次，有可能重复"),
    QOS_EXACTLY_ONCE(2, "只有一次，确保消息只到达一次");
    private int number;
    private String desc;

    QosType(int num, String desc) {
        this.number = num;
        this.desc = desc;
    }

    public int getNumber() {
        return number;
    }


    public String getDesc() {
        return desc;
    }

}

推送消息的实体类

package com.gysoft.emqdemo.bean;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.serializer.SerializerFeature;
import lombok.Getter;
import lombok.Setter;
import lombok.extern.slf4j.Slf4j;

/**
 * mqtt 消息推送实体
 *
 * @author 魏文思
 * @date 2019/11/14$ 15:52$
 */
@Slf4j
@Setter
@Getter
public class PushPayload {

    //推送类型
    private String type;
    //推送对象
    private String mobile;
    //标题
    private String title;
    //内容
    private String content;
    //数量
    private Integer badge = 1;
    //铃声
    private String sound = "default";
    public PushPayload(String type, String mobile, String title, String content, Integer badge , String sound){
        this.type = type;
        this.mobile = mobile;
        this.title = title;
        this.content = content;
        this.badge = badge;
        this.sound = sound;
    }

    public static class Builder{
        //推送类型
        private String type;
        //推送对象
        private String mobile;
        //标题
        private String title;
        //内容
        private String content;
        //数量
        private Integer badge = 1;
        //铃声
        private String sound = "default";

        public Builder setType(String type) {
            this.type = type;
            return this;
        }

        public Builder setMobile(String mobile) {
            this.mobile = mobile;
            return this;
        }

        public Builder setTitle(String title) {
            this.title = title;
            return this;
        }

        public Builder setContent(String content) {
            this.content = content;
            return this;
        }

        public Builder setBadge(Integer badge) {
            this.badge = badge;
            return this;
        }

        public Builder setSound(String sound) {
            this.sound = sound;
            return this;
        }

        public PushPayload bulid(){
            return new PushPayload(type,mobile,title,content,badge,sound);
        }
    }


    public static Builder getPushPayloadBuider(){
        return new Builder();
    }


    @Override
    public String toString() {
        return JSON.toJSONString(this, SerializerFeature.DisableCircularReferenceDetect);
    }

}

回调函数，用于在接受消息后，重连等一些操作，

messageArrived()方法 当消息到达后做的一些处理，操作

connectionLost()方法用于处理断线重连操作，我这里的实现现不用参考，这个地方我处理的还有点问题，还没有解决门后面解决了在更新。

deliveryComplete()  接收到已经发布的 QoS 1 或 QoS 2 消息的传递令牌时调用

package com.gysoft.emqdemo.server;

import com.gysoft.emqdemo.util.NetUtils;
import com.gysoft.emqdemo.util.PropertiesUtil;
import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;
import org.eclipse.paho.client.mqttv3.MqttCallback;
import org.eclipse.paho.client.mqttv3.MqttMessage;

import java.util.concurrent.TimeUnit;


/**
 * @author 魏文思
 * @date 2019/11/14$ 15:57$
 */
public class PushCallback implements MqttCallback {

    @Override
    public void connectionLost(Throwable throwable) {
       /* MqttPushServer mqttPushServer = MqttPushServer.getInstance();
        //在断开连接时使用，主要用于重连
        System.out.println("开始判断是否进入重连");
        do {
            System.out.println("进入重连");
            if (NetUtils.connectTest(PropertiesUtil.prefixUrl)) {
                mqttPushServer.connect();
                mqttPushServer.setReConnTimes(mqttPushServer.getReConnTimes() + 1);
            }

            try {
                TimeUnit.SECONDS.sleep((long) mqttPushServer.getReconnInterval());

            } catch (InterruptedException var3) {
                System.out.println("重连出现异常");
                var3.printStackTrace();
            }
        } while (!mqttPushServer.isConnected() && mqttPushServer.getReConnTimes() < mqttPushServer.getMaxReconnTimes());
        System.out.println("重试成功！！！");*/
    }


    @Override
    public void deliveryComplete(IMqttDeliveryToken token) {
    }

    @Override
    public void messageArrived(String topic, MqttMessage message) throws Exception {
        //服务端不用关心，客户端的业务
        // subscribe后得到的消息会执行到这里面
       /* System.out.println("接收消息主题 : " + topic);
        System.out.println("接收消息Qos : " + message.getQos());
        System.out.println("接收消息内容 : " + new String(message.getPayload()));*/

    }
}

mqtt yml 配置文件

#mq配置
com:
  mqtt:

    host: tcp://localhost:1883
    clientid: JavaSample
    topic: demo/topics
    timeout: 10
    keepalive: 20
    maxReconnectTimes: 5
    reconnInterval: 1
    prefixUrl: http://192.168.3.93:18083

server:
  port: 9090

测试controller，使用main方法测试，这里我将mqtt交给了spring进行维护管理

package com.gysoft.emqdemo.controller;

import com.gysoft.emqdemo.bean.PushPayload;
import com.gysoft.emqdemo.server.MqttPushServer;
import com.gysoft.emqdemo.util.QosType;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.FutureTask;


/**
 * @author 魏文思
 * @date 2019/11/15$ 14:36$
 */
@RestController
public class EMQController {


    @GetMapping("/sendMessage")
    public String testMQ() {
        String kdTopic = "demo/topics";
        PushPayload pushMessage = PushPayload.getPushPayloadBuider().setMobile("17637900215")
                .setContent("designModel")
                .bulid();
        /**
         * mqtt发布消息的时候，可以设置保留消息标志，保留消息会驻留在消息服务器，后来的订阅主题仍然可以接受该消息
         * 关于retain的说明：
         * 终端设备publish消息时，如果retain值是true，则会服务器一直记忆，哪怕是服务重启。因为Mnesia会本地持久化。
         * publish某主题的消息，payload为空且retain值是true，则会删除这条持久化的消息。
         *
         * publish某主题的消息，payload为空且retain值是false，则不会删除这条持久化的消息。

         QOS_AT_MOST_ONCE(0, "最多一次，有可能重复或丢失"),
         QOS_AT_LEAST_ONCE(1, "至少一次，有可能重复"),
         QOS_EXACTLY_ONCE(2, "只有一次，确保消息只到达一次");

         */
        //这里将消息异步处理  使用futuretask，或者使用rabbimq进行异步处理或者spring的异步机制进行处理
        FutureTask futureTask = new FutureTask(() -> {
            MqttPushServer.getInstance().publish(QosType.QOS_AT_LEAST_ONCE.getNumber(), true, kdTopic, pushMessage);
            return true;
        });
        ExecutorService service = Executors.newCachedThreadPool();
        service.submit(futureTask);
        try {
            Boolean result = (Boolean) futureTask.get();
            if (result == true) {
                System.out.println("消息发送成功");
            } else {
                System.out.println("消息推送异常");
            }
        } catch (Exception e) {
            System.out.println("消息推送异常");
            e.printStackTrace();
        }
        return "ok";
    }

}

接收端先使用dashboard界面提供的websocket进行测试

首先连接emq服务器

然后再订阅我们的消息指定订阅主题topic

接口访问：多刷新了几次，看看效果

消息推送结果

在最下面可以看到我们从服务端发来的消息

从官网上找了一下客户端java的实现，其实实现和服务端基本一致就是一个订阅，一个发布，订阅和发布相同的主题

package com.gysoft.emqdemo.client;

import org.eclipse.paho.client.mqttv3.*;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;

/**
 * @author 魏文思
 * @date 2019/11/15$ 17:43$
 */
public class Client {

    public static void main(String[] args) {

        String topic        = "demo/topics";
        String content      = "Message from MqttPublishSample";
        int qos             = 1;
        String broker       = "tcp://localhost:1883";
        String clientId     = "client1";
        MemoryPersistence persistence = new MemoryPersistence();

        try {
            MqttClient sampleClient = new MqttClient(broker, clientId, persistence);
            MqttConnectOptions connOpts = new MqttConnectOptions();
            connOpts.setCleanSession(true);
            System.out.println("Connecting to broker: "+broker);
            sampleClient.connect(connOpts);
            System.out.println("Connected");
            System.out.println("Publishing message: "+content);
            MqttMessage message = new MqttMessage(content.getBytes());
            message.setQos(qos);
            sampleClient.subscribe("demo/topics",1);
            sampleClient.setCallback(new MqttCallback() {
                @Override
                public void connectionLost(Throwable throwable) {

                }

                @Override
                public void messageArrived(String s, MqttMessage mqttMessage) throws Exception {
                    System.out.println(mqttMessage);
                    System.out.println();
                    System.out.println(s);
                }

                @Override
                public void deliveryComplete(IMqttDeliveryToken iMqttDeliveryToken) {

                }
            });
          /*  System.out.println("Message published");
            sampleClient.disconnect();
            System.out.println("Disconnected");
            System.exit(0);*/
        } catch(MqttException me) {
            System.out.println("reason "+me.getReasonCode());
            System.out.println("msg "+me.getMessage());
            System.out.println("loc "+me.getLocalizedMessage());
            System.out.println("cause "+me.getCause());
            System.out.println("excep "+me);
            me.printStackTrace();
        }
    }
}

在控制台看到服务端推送的结果：

至此mqtt的推送订阅就已经实现。后面继续加深研究mqtt的其他特性。
