Struts2框架
Struts2是经典的javaEE的web框架,提供了基于mvc应用程序的开发模式。
(一)搭建Struts2环境
- 新建Dynamic Web project工程
- 导入jar包
- 在配置文件web.xml中配置struts2的启动信息(如下)
<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
- 在src目录下添加struts.xml
(二)创建web程序步骤
- 创建工程,搭建环境
- 设计模型层(JavaBean类),设计有关的业务逻辑处理——大多为具体的实体类
- 设计控制层(Action类),实现模型和视图间的交互
- 设计视图层(jsp页面),实现信息的提交与显示
- 修改映射文件struts.xml,在其中添加有关的Action和视图类之间的映射
例如:求两数之和

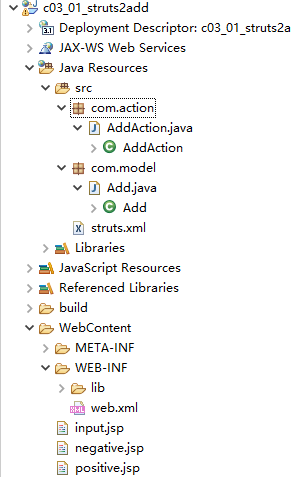

(1)结构图如下:
(2)代码如下:
(1)web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>c03_01_struts2add</display-name>
<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
</web-app>
(2)Add.java
package com.model;
public class Add {
double x; //第1个加数
double y; //第2个加数
double sum; //和值
//构造方法
public Add() {
this.x = 0;
this.y = 0;
}
//带参数的构造方法
public Add(double x, double y) {
this.x = x;
this.y = y;
}
public double getX() {
return x;
}
public void setX(double x) {
this.x = x;
}
public double getY() {
return y;
}
public void setY(double y) {
this.y = y;
}
public double getSum() {
return x+y;
}
public void setSum(double sum) {
this.sum = sum;
}
}
(3)AddAction.java
package com.action;
import com.model.Add;
public class AddAction {
private Add add; // 业务模型对象属性
// 不带参数的默认构造方法
public AddAction() {
}
public Add getAdd() {
return add;
}
public void setAdd(Add add) {
this.add = add;
}
// 求值Action方法,并返回"-"或“+”
public String executeAdd() throws Exception {
String forward = null;
if (add.getSum() < 0) {
forward = "-";
} else {
forward = "+";
}
return forward;
}
}
(4)struts.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.3//EN"
"http://struts.apache.org/dtds/struts-2.3.dtd">
<struts>
<package name="default" namespace="/" extends="struts-default">
<action name="opadd" class="com.action.AddAction" method="executeAdd" >
<result name="-">negative.jsp</result>
<result name="+">positive.jsp</result>
</action>
</package>
</struts>
(5)input.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<html>
<head>
<title>提交两实数的页面</title>
</head>
<body>
<form action="opadd" method="post">
<table>
<tr>
<th colspan="2">请输入两个实数:</th>
</tr>
<tr>
<td align="right">加数:</td>
<td><input type="text" name="add.x" /></td>
</tr>
<tr>
<td align="right">被加数:</td>
<td><input type="text" name="add.y" /></td>
</tr>
<tr>
<td align="right"><input type="submit" value="求和" /></td>
</tr>
</table>
</form>
</body>
</html>
(6)positive.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<html>
<head>
<title>计算结果为大于等于0的页面</title>
</head>
<body>
代数和为非负整数,其和值为:${add.x}+${add.y}=${add.sum}<br>
</body>
</html>
(7)negative.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<html>
<head>
<title>计算结果为负数的页面</title>
</head>
<body>
代数和为负整数,其和值为:${add.x}+${add.y}=${add.sum}
</body>
</html>
