框架
3.获得xxxMapper对象并执行
- 总体的过程
- 接下来我们就来执行自己写的增删改查的方法
//得到SqlSessionFactory
SqlSessionFactory sessionFactory=
new SqlSessionFactoryBuilder().build(reader);
//使用SqlSessionFactory拿到SqlSession
SqlSession session = sessionFactory.openSession();
//生成动态代理对象
StudentMapper studentMapper = session.getMapper(StudentMapper.class);
//在此处打断点，Debug我们自己的方法
Student student = studentMapper.queryStudentByStuno(1);
- 结果我们进入到了Mapper的动态代理类，这个类实现了InvocationHandler，这个就是Mapper的动态代理对象
public class MapperProxy<T> implements InvocationHandler, Serializable {
private static final long serialVersionUID = -6424540398559729838L;
private final SqlSession sqlSession;
private final Class<T> mapperInterface;
private final Map<Method, MapperMethod> methodCache;
public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethod> methodCache) {
this.sqlSession = sqlSession;
this.mapperInterface = mapperInterface;
this.methodCache = methodCache;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
if (Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
} else if (isDefaultMethod(method)) {
return invokeDefaultMethod(proxy, method, args);
}
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
//缓存操作
final MapperMethod mapperMethod = cachedMapperMethod(method);
return mapperMethod.execute(sqlSession, args);
}
- 我们再看一下InvocationHandler JDK动态代理接口，在我们实现增删改查时，并不是我们定义的方法来执行，而是交给代理类MapperProxy来执行的
package java.lang.reflect;
/**
* {@code InvocationHandler} is the interface implemented by
* the <i>invocation handler</i> of a proxy instance.
*
* <p>Each proxy instance has an associated invocation handler.
* When a method is invoked on a proxy instance, the method
* invocation is encoded and dispatched to the {@code invoke}
* method of its invocation handler.
*
* @author Peter Jones
* @see Proxy
* @since 1.3
*/
public interface InvocationHandler {
/**
* Processes a method invocation on a proxy instance and returns
* the result. This method will be invoked on an invocation handler
* when a method is invoked on a proxy instance that it is
* associated with.
*
* @param proxy the proxy instance that the method was invoked on
*
* @param method the {@code Method} instance corresponding to
* the interface method invoked on the proxy instance. The declaring
* class of the {@code Method} object will be the interface that
* the method was declared in, which may be a superinterface of the
* proxy interface that the proxy class inherits the method through.
*
* @param args an array of objects containing the values of the
* arguments passed in the method invocation on the proxy instance,
* or {@code null} if interface method takes no arguments.
* Arguments of primitive types are wrapped in instances of the
* appropriate primitive wrapper class, such as
* {@code java.lang.Integer} or {@code java.lang.Boolean}.
*
* @return the value to return from the method invocation on the
* proxy instance. If the declared return type of the interface
* method is a primitive type, then the value returned by
* this method must be an instance of the corresponding primitive
* wrapper class; otherwise, it must be a type assignable to the
* declared return type. If the value returned by this method is
* {@code null} and the interface method's return type is
* primitive, then a {@code NullPointerException} will be
* thrown by the method invocation on the proxy instance. If the
* value returned by this method is otherwise not compatible with
* the interface method's declared return type as described above,
* a {@code ClassCastException} will be thrown by the method
* invocation on the proxy instance.
*
* @throws Throwable the exception to throw from the method
* invocation on the proxy instance. The exception's type must be
* assignable either to any of the exception types declared in the
* {@code throws} clause of the interface method or to the
* unchecked exception types {@code java.lang.RuntimeException}
* or {@code java.lang.Error}. If a checked exception is
* thrown by this method that is not assignable to any of the
* exception types declared in the {@code throws} clause of
* the interface method, then an
* {@link UndeclaredThrowableException} containing the
* exception that was thrown by this method will be thrown by the
* method invocation on the proxy instance.
*
* @see UndeclaredThrowableException
*/
//动态代理接口的invoke（执行方法）
public Object invoke(Object proxy, Method method, Object[] args)
throws Throwable;
}
- mapperMethod执行DefaultSqlSession，里面有Configuration和Executor，args指的是参数
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
if (Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
} else if (isDefaultMethod(method)) {
return invokeDefaultMethod(proxy, method, args);
}
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
final MapperMethod mapperMethod = cachedMapperMethod(method);
return mapperMethod.execute(sqlSession, args);
}

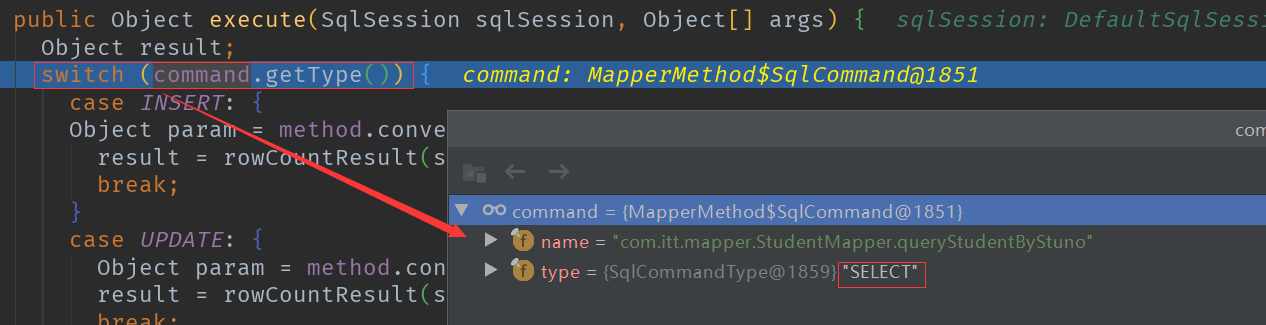

- 然后进入到execute这个方法中
public Object execute(SqlSession sqlSession, Object[] args) {
Object result;
//通过command.geteType()来判断当前进行的是什么操作，例如select ,update,delete等等
switch (command.getType()) {
case INSERT: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.insert(command.getName(), param));
break;
}
case UPDATE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.update(command.getName(), param));
break;
}
case DELETE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.delete(command.getName(), param));
break;
}
case SELECT:
if (method.returnsVoid() && method.hasResultHandler()) {
executeWithResultHandler(sqlSession, args);
result = null;
} else if (method.returnsMany()) {
result = executeForMany(sqlSession, args);
} else if (method.returnsMap()) {
result = executeForMap(sqlSession, args);
} else if (method.returnsCursor()) {
result = executeForCursor(sqlSession, args);
} else {
Object param = method.convertArgsToSqlCommandParam(args);
result = sqlSession.selectOne(command.getName(), param);
}
break;
case FLUSH:
result = sqlSession.flushStatements();
break;
default:
throw new BindingException("Unknown execution method for: " + command.getName());
}
if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
throw new BindingException("Mapper method '" + command.getName()
+ " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
}
return result;
}
case SELECT:
if (method.returnsVoid() && method.hasResultHandler()) {
executeWithResultHandler(sqlSession, args);
result = null;
} else if (method.returnsMany()) {
result = executeForMany(sqlSession, args);
} else if (method.returnsMap()) {
result = executeForMap(sqlSession, args);
} else if (method.returnsCursor()) {
result = executeForCursor(sqlSession, args);
} else {
//处理增删改查参数的方法
Object param = method.convertArgsToSqlCommandParam(args);
result = sqlSession.selectOne(command.getName(), param);
}
break;
- 进入到 Object param = method.convertArgsToSqlCommandParam(args);方法中
public Object getNamedParams(Object[] args) {
final int paramCount = names.size();
//如果参数为0个，则返回null
if (args == null || paramCount == 0) {
return null;
//如果参数为1个，则返回第一个值
} else if (!hasParamAnnotation && paramCount == 1) {
return args[names.firstKey()];
} else {
//如果参数是多个，则放到一个Map集合中
final Map<String, Object> param = new ParamMap<Object>();
int i = 0;
for (Map.Entry<Integer, String> entry : names.entrySet()) {
//取出对应的键K，值
param.put(entry.getValue(), args[entry.getKey()]);
// add generic param names (param1, param2, ...)
final String genericParamName = GENERIC_NAME_PREFIX + String.valueOf(i + 1);
// ensure not to overwrite parameter named with @Param
if (!names.containsValue(genericParamName)) {
param.put(genericParamName, args[entry.getKey()]);
}
i++;
}
return param;
}
}

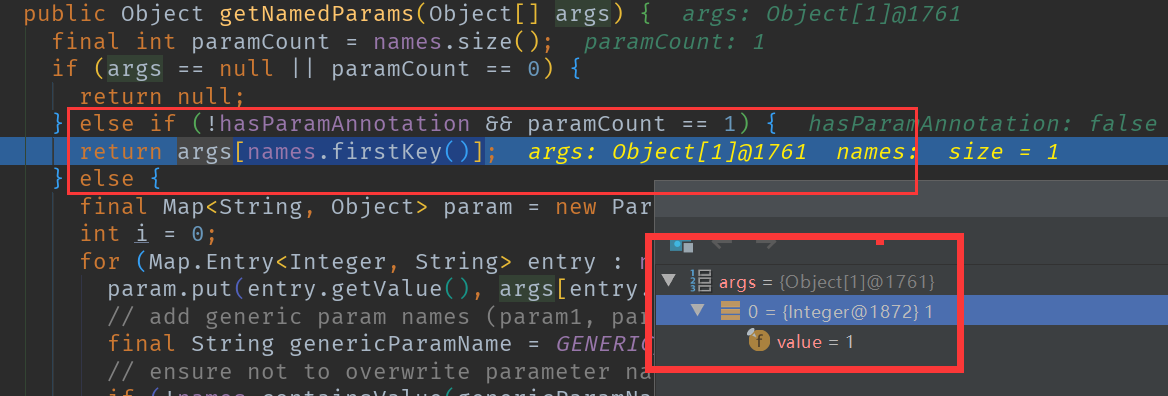

- 我输入的参数为1个，就执行一个参数的，然后返回的是我要查询的1
- 处理完参数之后就可以真正的查询了
result = sqlSession.selectOne(command.getName(), param);
- selectOne里面使用的是selectList方法来查询
@Override
public <T> T selectOne(String statement, Object parameter) {
// Popular vote was to return null on 0 results and throw exception on too many.
List<T> list = this.<T>selectList(statement, parameter);
if (list.size() == 1) {
return list.get(0);
} else if (list.size() > 1) {
throw new TooManyResultsException("Expected one result (or null) to be returned by selectOne(), but found: " + list.size());
} else {
return null;
}
}
@Override
public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
try {
//使用configuration.getMappedStatement拿到所有的增删改查的对象
MappedStatement ms = configuration.getMappedStatement(statement);
return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
} catch (Exception e) {
throw ExceptionFactory.wrapException("Error querying database. Cause: " + e, e);
} finally {
ErrorContext.instance().reset();
}
}

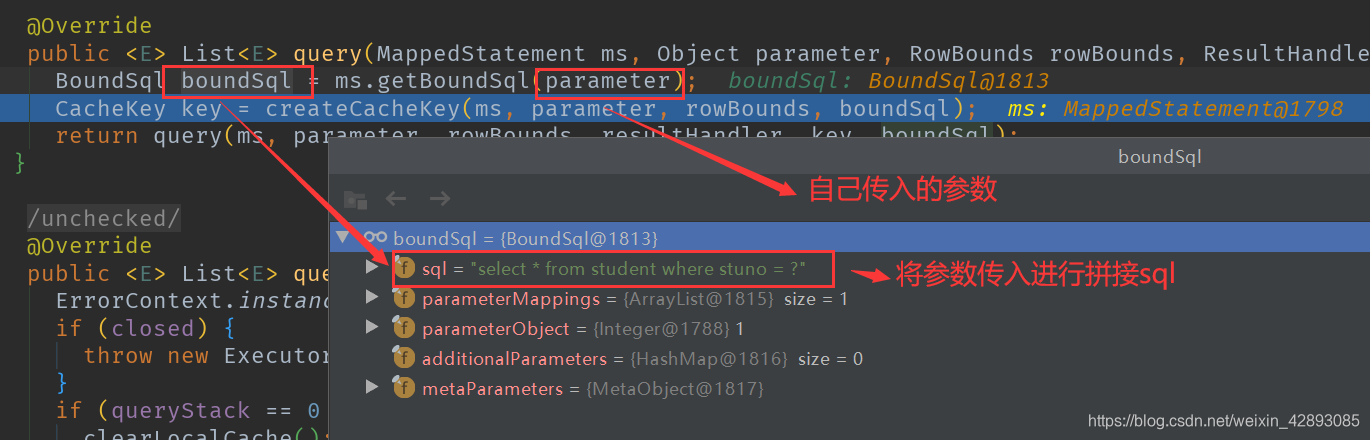

- 进入到query方法中
return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
@Override
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
BoundSql boundSql = ms.getBoundSql(parameter);
CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);
return query(ms, parameter, rowBounds, resultHandler, key, boundSql);
}
- 执行SQL是Executor
- private final Executor delegate;

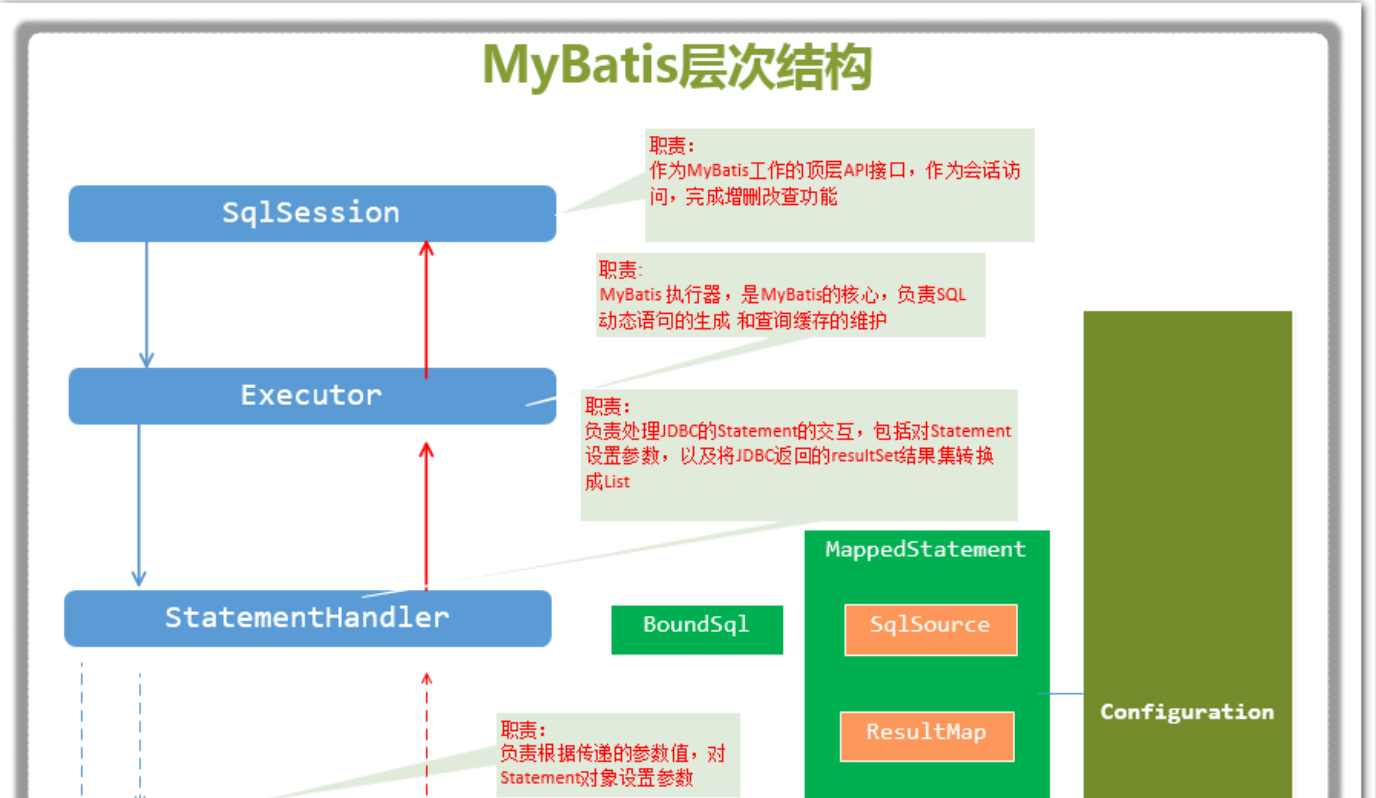

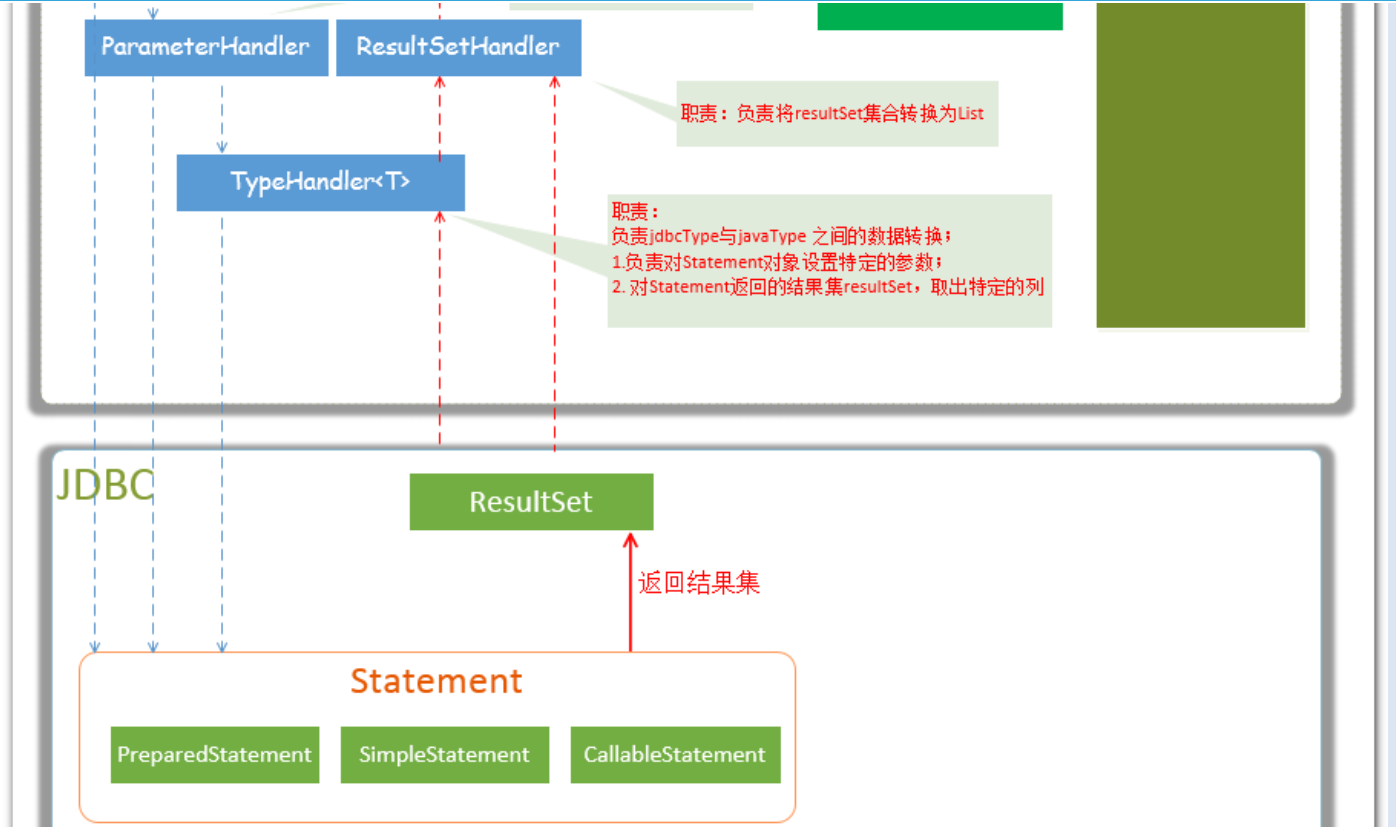

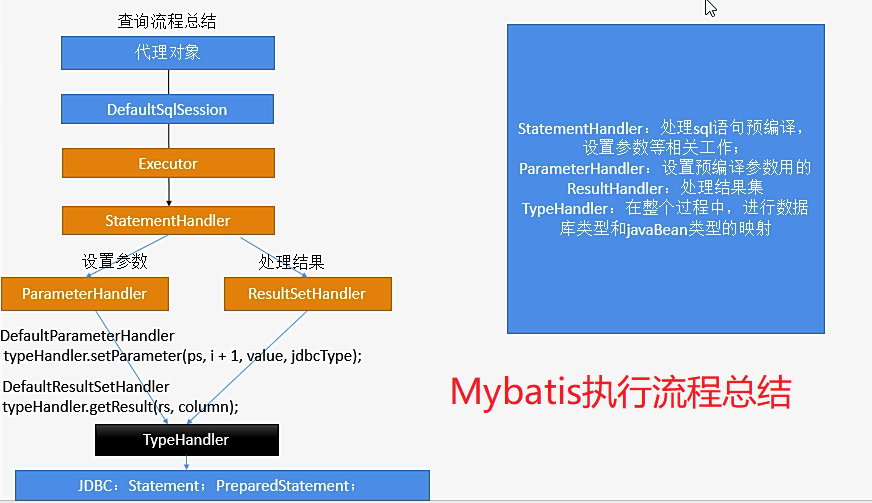

- Mybatis执行流程总结
- 原理总结
- 根据 配置文件（全局、sql映射）初始化Configuration对象
- 创建一个DefaultSqlSession对象，
他里面包含Configuration以及

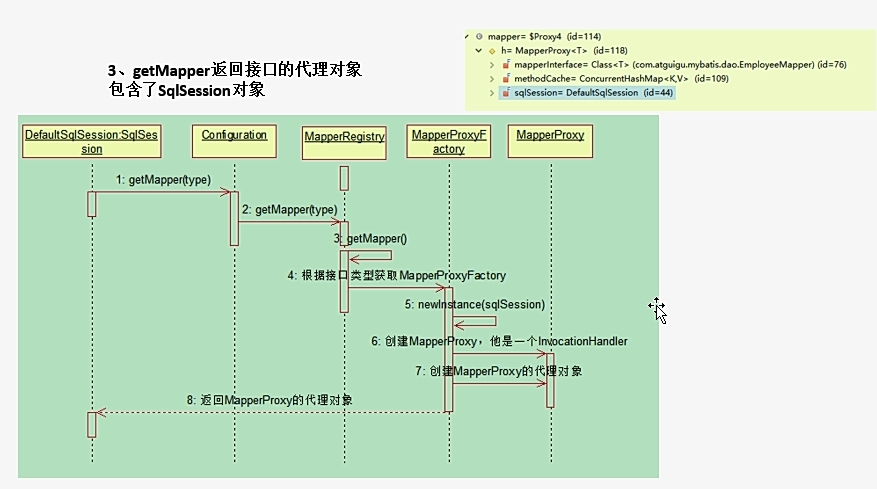

Executor(根据全局配置文件中的defaultExecutorType创建对应的Executor) - DefaultSqlSession.getMapper()，拿到Mapper接口对应的MapperProxy.
- MapperProxy里面有（DefaultSqlSession）；
- 执行增删改查方法：
- 调用 DefaultSqlSession的增删改查(Executor);

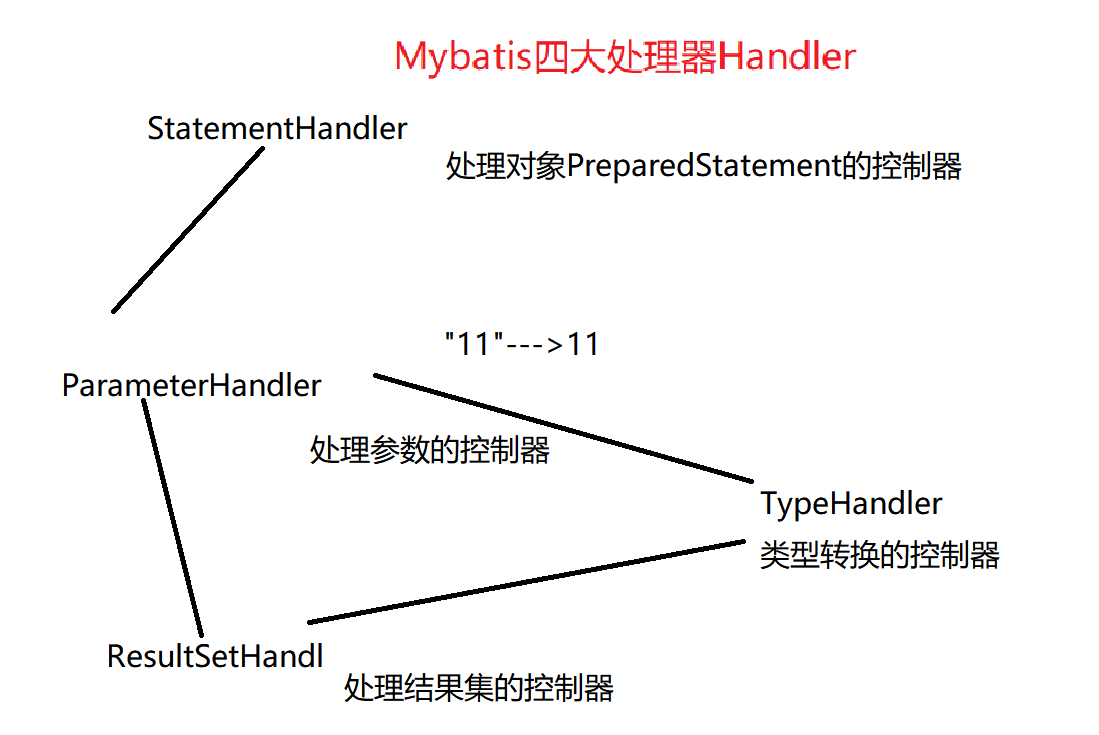

- 会创建一个StatementHandler对象。（同时也会创建ParameterHandler和ResultSethandler）
- 调用StatementHandler预编译参数以及设置参数值，使用ParameterHandler
- 调用StatementHandler的增删改查方法；
- ResultSethandler封装结果；
- 注意：
四大对象每个创建的时候都有：interceptorChain.pluginall(parameterHandler);
