SpringBoot2.x 自定义400、500等错误页面，自定义扩展返回信息

今天给大家分享一篇SpringBoot2.x中如何自定义状态为400和500的错误页面。接下来我们来看默认的页面。

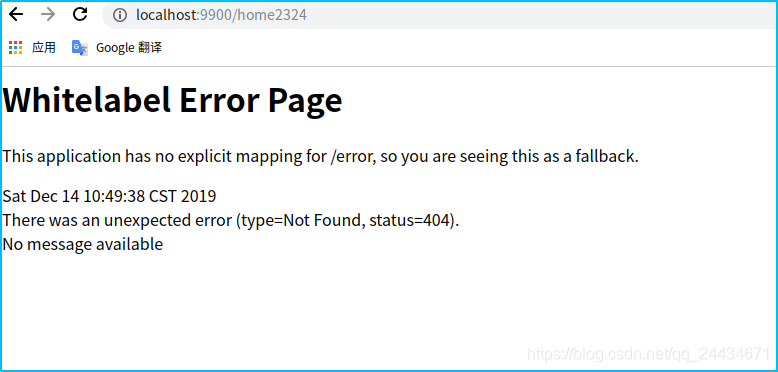

以上是一个404的错误。再来看一个500的错误。

在SpringBoot2.x中我们可以找到BasicErrorController，这个类主要用来处理异常

/*
 * Copyright 2012-2019 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.boot.autoconfigure.web.servlet.error;

import java.util.Collections;
import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.boot.autoconfigure.web.ErrorProperties;
import org.springframework.boot.autoconfigure.web.ErrorProperties.IncludeStacktrace;
import org.springframework.boot.web.servlet.error.ErrorAttributes;
import org.springframework.boot.web.servlet.server.AbstractServletWebServerFactory;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.util.Assert;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

/**
 * Basic global error {@link Controller @Controller}, rendering {@link ErrorAttributes}.
 * More specific errors can be handled either using Spring MVC abstractions (e.g.
 * {@code @ExceptionHandler}) or by adding servlet
 * {@link AbstractServletWebServerFactory#setErrorPages server error pages}.
 *
 * @author Dave Syer
 * @author Phillip Webb
 * @author Michael Stummvoll
 * @author Stephane Nicoll
 * @since 1.0.0
 * @see ErrorAttributes
 * @see ErrorProperties
 */
@Controller
//如果没有配置server.error.path就去error.path找，如果没有配置默认路径为/error
@RequestMapping("${server.error.path:${error.path:/error}}")
public class BasicErrorController extends AbstractErrorController {

	private final ErrorProperties errorProperties;

	/**
	 * Create a new {@link BasicErrorController} instance.
	 * @param errorAttributes the error attributes
	 * @param errorProperties configuration properties
	 */
	public BasicErrorController(ErrorAttributes errorAttributes, ErrorProperties errorProperties) {
		this(errorAttributes, errorProperties, Collections.emptyList());
	}

	/**
	 * Create a new {@link BasicErrorController} instance.
	 * @param errorAttributes the error attributes
	 * @param errorProperties configuration properties
	 * @param errorViewResolvers error view resolvers
	 */
	public BasicErrorController(ErrorAttributes errorAttributes, ErrorProperties errorProperties,
			List<ErrorViewResolver> errorViewResolvers) {
		super(errorAttributes, errorViewResolvers);
		Assert.notNull(errorProperties, "ErrorProperties must not be null");
		this.errorProperties = errorProperties;
	}

	@Override
	public String getErrorPath() {
		return this.errorProperties.getPath();
	}

    //如果是浏览器请求的话进入这个
	@RequestMapping(produces = MediaType.TEXT_HTML_VALUE)
	public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {
		HttpStatus status = getStatus(request);
		Map<String, Object> model = Collections
				.unmodifiableMap(getErrorAttributes(request, isIncludeStackTrace(request, MediaType.TEXT_HTML)));
		response.setStatus(status.value());
		ModelAndView modelAndView = resolveErrorView(request, response, status, model);
        //这里是去error下面找
		return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);
	}

    //非浏览器请求的话进入这个，主要是利用MediaType.TEXT_HTML_VALUE来区分
	@RequestMapping
	public ResponseEntity<Map<String, Object>> error(HttpServletRequest request) {
		HttpStatus status = getStatus(request);
		if (status == HttpStatus.NO_CONTENT) {
			return new ResponseEntity<>(status);
		}
		Map<String, Object> body = getErrorAttributes(request, isIncludeStackTrace(request, MediaType.ALL));
		return new ResponseEntity<>(body, status);
	}

	/**
	 * Determine if the stacktrace attribute should be included.
	 * @param request the source request
	 * @param produces the media type produced (or {@code MediaType.ALL})
	 * @return if the stacktrace attribute should be included
	 */
	protected boolean isIncludeStackTrace(HttpServletRequest request, MediaType produces) {
		IncludeStacktrace include = getErrorProperties().getIncludeStacktrace();
		if (include == IncludeStacktrace.ALWAYS) {
			return true;
		}
		if (include == IncludeStacktrace.ON_TRACE_PARAM) {
			return getTraceParameter(request);
		}
		return false;
	}

	/**
	 * Provide access to the error properties.
	 * @return the error properties
	 */
	protected ErrorProperties getErrorProperties() {
		return this.errorProperties;
	}

}

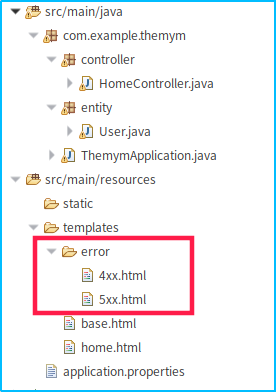

SpringBoot2.x发生404或者500后默认会去claspath下面的templates/error目录下查找，4xx或者是5xx,这里的xx代表了404,401等异常错误。

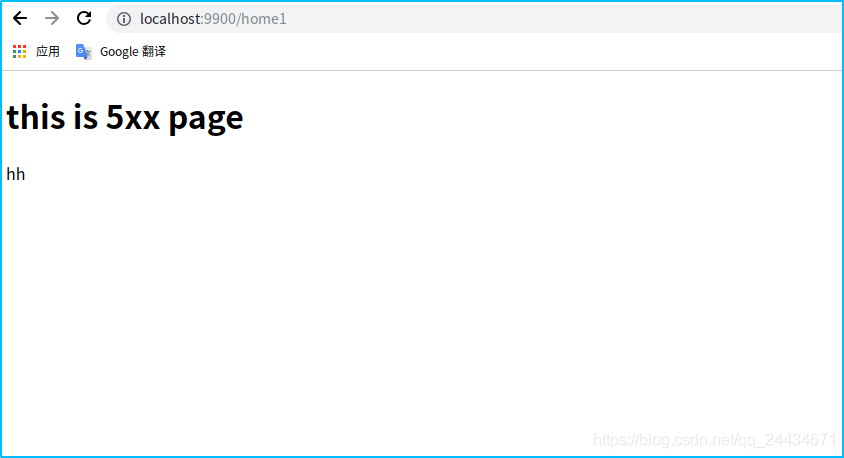

增加了error/4xx.html 和 5xx.html再次访问页面我们来看效果：

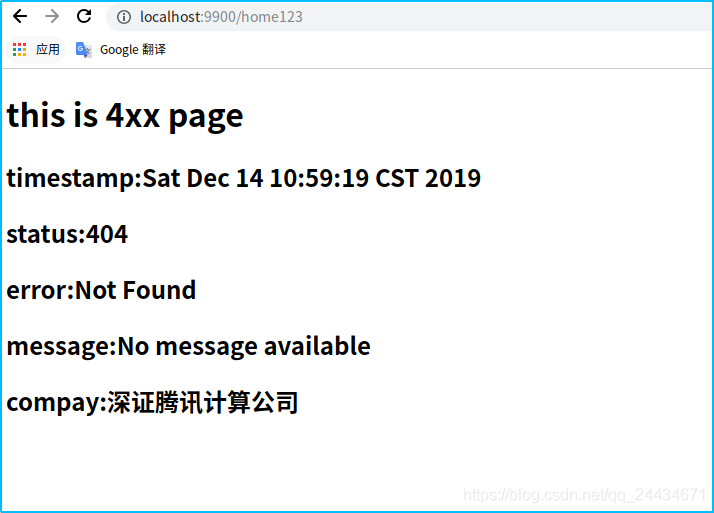

接下来访问一个404的错误来看看：

接下来我们来看SpringBoot默认返回的错误信息，通过DefaultErrorAttruites类可以找到：

/*
 * Copyright 2012-2019 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.boot.web.servlet.error;

import java.io.PrintWriter;
import java.io.StringWriter;
import java.util.Date;
import java.util.LinkedHashMap;
import java.util.Map;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.http.HttpStatus;
import org.springframework.util.StringUtils;
import org.springframework.validation.BindingResult;
import org.springframework.validation.ObjectError;
import org.springframework.web.bind.MethodArgumentNotValidException;
import org.springframework.web.context.request.RequestAttributes;
import org.springframework.web.context.request.WebRequest;
import org.springframework.web.servlet.HandlerExceptionResolver;
import org.springframework.web.servlet.ModelAndView;

/**
 * Default implementation of {@link ErrorAttributes}. Provides the following attributes
 * when possible:
 * <ul>
 * <li>timestamp - The time that the errors were extracted</li>
 * <li>status - The status code</li>
 * <li>error - The error reason</li>
 * <li>exception - The class name of the root exception (if configured)</li>
 * <li>message - The exception message</li>
 * <li>errors - Any {@link ObjectError}s from a {@link BindingResult} exception
 * <li>trace - The exception stack trace</li>
 * <li>path - The URL path when the exception was raised</li>
 * </ul>
 *
 * @author Phillip Webb
 * @author Dave Syer
 * @author Stephane Nicoll
 * @author Vedran Pavic
 * @since 2.0.0
 * @see ErrorAttributes
 */
@Order(Ordered.HIGHEST_PRECEDENCE)
public class DefaultErrorAttributes implements ErrorAttributes, HandlerExceptionResolver, Ordered {

	private static final String ERROR_ATTRIBUTE = DefaultErrorAttributes.class.getName() + ".ERROR";

	private final boolean includeException;

	/**
	 * Create a new {@link DefaultErrorAttributes} instance that does not include the
	 * "exception" attribute.
	 */
	public DefaultErrorAttributes() {
		this(false);
	}

	/**
	 * Create a new {@link DefaultErrorAttributes} instance.
	 * @param includeException whether to include the "exception" attribute
	 */
	public DefaultErrorAttributes(boolean includeException) {
		this.includeException = includeException;
	}

	@Override
	public int getOrder() {
		return Ordered.HIGHEST_PRECEDENCE;
	}

	@Override
	public ModelAndView resolveException(HttpServletRequest request, HttpServletResponse response, Object handler,
			Exception ex) {
		storeErrorAttributes(request, ex);
		return null;
	}

	private void storeErrorAttributes(HttpServletRequest request, Exception ex) {
		request.setAttribute(ERROR_ATTRIBUTE, ex);
	}

	@Override
	public Map<String, Object> getErrorAttributes(WebRequest webRequest, boolean includeStackTrace) {
		Map<String, Object> errorAttributes = new LinkedHashMap<>();
        //这里添加返回的错误信息
		errorAttributes.put("timestamp", new Date());
		addStatus(errorAttributes, webRequest);
		addErrorDetails(errorAttributes, webRequest, includeStackTrace);
		addPath(errorAttributes, webRequest);
		return errorAttributes;
	}

	private void addStatus(Map<String, Object> errorAttributes, RequestAttributes requestAttributes) {
		Integer status = getAttribute(requestAttributes, "javax.servlet.error.status_code");
		if (status == null) {
			errorAttributes.put("status", 999);
			errorAttributes.put("error", "None");
			return;
		}
		errorAttributes.put("status", status);
		try {
			errorAttributes.put("error", HttpStatus.valueOf(status).getReasonPhrase());
		}
		catch (Exception ex) {
			// Unable to obtain a reason
			errorAttributes.put("error", "Http Status " + status);
		}
	}

	private void addErrorDetails(Map<String, Object> errorAttributes, WebRequest webRequest,
			boolean includeStackTrace) {
		Throwable error = getError(webRequest);
		if (error != null) {
			while (error instanceof ServletException && error.getCause() != null) {
				error = error.getCause();
			}
			if (this.includeException) {
				errorAttributes.put("exception", error.getClass().getName());
			}
			addErrorMessage(errorAttributes, error);
			if (includeStackTrace) {
				addStackTrace(errorAttributes, error);
			}
		}
		Object message = getAttribute(webRequest, "javax.servlet.error.message");
		if ((!StringUtils.isEmpty(message) || errorAttributes.get("message") == null)
				&& !(error instanceof BindingResult)) {
			errorAttributes.put("message", StringUtils.isEmpty(message) ? "No message available" : message);
		}
	}

	private void addErrorMessage(Map<String, Object> errorAttributes, Throwable error) {
		BindingResult result = extractBindingResult(error);
		if (result == null) {
			errorAttributes.put("message", error.getMessage());
			return;
		}
		if (result.hasErrors()) {
			errorAttributes.put("errors", result.getAllErrors());
			errorAttributes.put("message", "Validation failed for object='" + result.getObjectName()
					+ "'. Error count: " + result.getErrorCount());
		}
		else {
			errorAttributes.put("message", "No errors");
		}
	}

	private BindingResult extractBindingResult(Throwable error) {
		if (error instanceof BindingResult) {
			return (BindingResult) error;
		}
		if (error instanceof MethodArgumentNotValidException) {
			return ((MethodArgumentNotValidException) error).getBindingResult();
		}
		return null;
	}

	private void addStackTrace(Map<String, Object> errorAttributes, Throwable error) {
		StringWriter stackTrace = new StringWriter();
		error.printStackTrace(new PrintWriter(stackTrace));
		stackTrace.flush();
		errorAttributes.put("trace", stackTrace.toString());
	}

	private void addPath(Map<String, Object> errorAttributes, RequestAttributes requestAttributes) {
		String path = getAttribute(requestAttributes, "javax.servlet.error.request_uri");
		if (path != null) {
			errorAttributes.put("path", path);
		}
	}

	@Override
	public Throwable getError(WebRequest webRequest) {
		Throwable exception = getAttribute(webRequest, ERROR_ATTRIBUTE);
		if (exception == null) {
			exception = getAttribute(webRequest, "javax.servlet.error.exception");
		}
		return exception;
	}

	@SuppressWarnings("unchecked")
	private <T> T getAttribute(RequestAttributes requestAttributes, String name) {
		return (T) requestAttributes.getAttribute(name, RequestAttributes.SCOPE_REQUEST);
	}

}

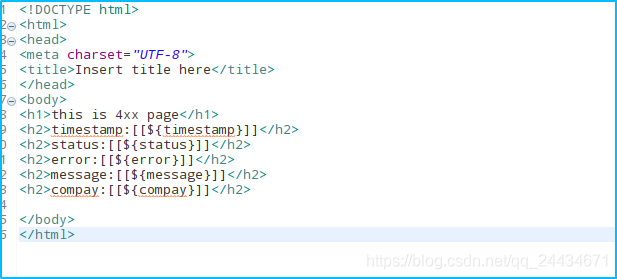

如果要想自定义扩展返回的信息怎么办呢，可以自定义一个类来继承这个类，代码如下：

@Component
class CustomDefaultErrorAttribute extends DefaultErrorAttributes{
	@Override
	public Map<String, Object> getErrorAttributes(WebRequest webRequest, boolean includeStackTrace) {
		// TODO Auto-generated method stub
		Map<String, Object>  map = new HashMap<String, Object>();
				map.put("compay", "深证腾讯计算公司");
                //调用父类来添加之前Spring的错误信息
				map.putAll(super.getErrorAttributes(webRequest, includeStackTrace));
				return map;
	}
}

页面获取的代码如下：

有问题可以在评论区留言，技术问题可以私信我。
