webRTC（十二）：webrtc 传输速率控制

设置传输速率的值

			<div>
				<label>BandWidth:</label>
				<select id="bandwidth" disabled>
					<option value="unlimited" selected>unlimited</option>
					<option value="2000">2000</option>
					<option value="1000">1000</option>
					<option value="500">500</option>
					<option value="250">250</option>
					<option value="125">125</option>
				</select>
				kps
			</div>

传输速率控制

//控制传输速率
function chang_bw(){
	optBw.disabled =true;
	var bw = optBw.options[optBw.selectedIndex].value;

	var vsender = null;
	var senders = pc.getSenders();
	senders.forEach(sender=>{
		if(sender&&sender.track && sender.track.kind === 'video'){
			vsender = sender;
		}
	});
	var parameters= vsender.getParameters();
	if(!parameters.encodings){
		return;
	}
	if(bw === 'unlimited'){
		return;
	}
	parameters.encodings[0].maxBitrate = bw * 1000;
	vsender.setParameters(parameters)
		   .then(()=>{
		   		optBw.disabled =false;
		   	 console.log('Successed to set parameters!');
		   })
		   .catch(err=>{
		   		 console.error(err);
		   })

}

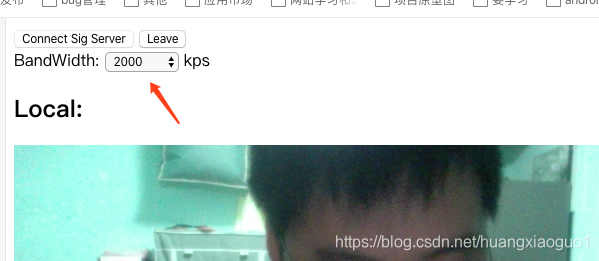

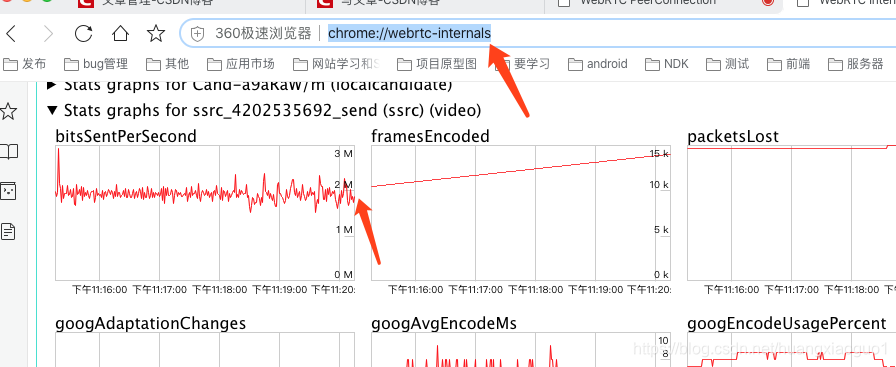

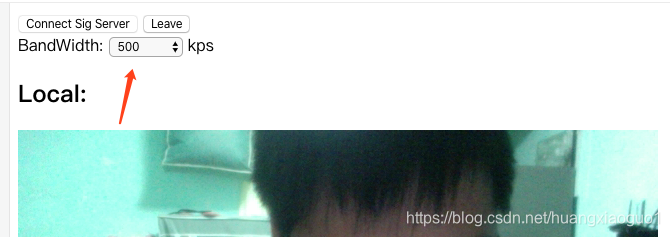

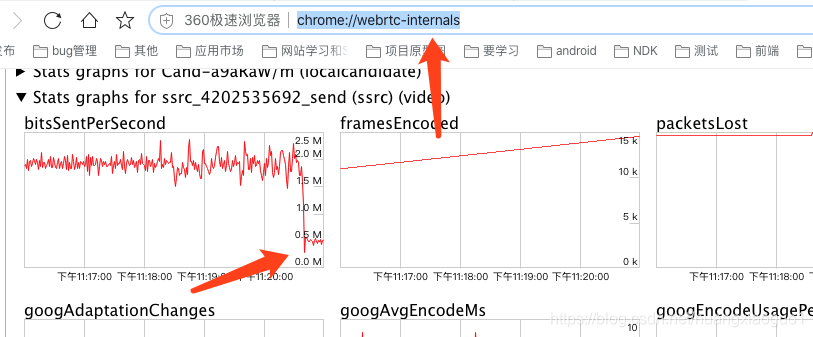

效果

在这里插入图片描述

源码

html

<html>
	<head>
		<title>WebRTC PeerConnection</title>
		<style>
			.preview{
				display: flex;
			}
			.remote{
				margin-left: 20px;
			}
		</style>
	</head>
	<body>
		<div>
			<div>
				<button id="connserver">Connect Sig Server</button>
				<button id="leave" disabled>Leave</button>
			</div>
			<div>
				<label>BandWidth:</label>
				<select id="bandwidth" disabled>
					<option value="unlimited" selected>unlimited</option>
					<option value="2000">2000</option>
					<option value="1000">1000</option>
					<option value="500">500</option>
					<option value="250">250</option>
					<option value="125">125</option>
				</select>
				kps
			</div>
			<div class="preview">
				<div>
					<h2>Local:</h2>
					<video id="localvideo" autoplay playsinline></video>
				</div>
				<div class="remote">
					<h2>Remote:</h2>
					<video id="remotevideo" autoplay playsinline></video>
				</div>
			</div>
		</div>
		<script src="https://cdnjs.cloudflare.com/ajax/libs/socket.io/2.0.3/socket.io.js"></script>
		<script src="https://webrtc.github.io/adapter/adapter-latest.js"></script>
		<script src="./js/main_bw.js"></script>
	</body>
</html>

'use strict'

var localVideo = document.querySelector('video#localvideo');
var remoteVideo = document.querySelector('video#remotevideo');

var btnConn = document.querySelector('button#connserver');
var btnLeave = document.querySelector('button#leave');

var optBw = document.querySelector('select#bandwidth')


var localStream = null;

var roomid = '333333';
var socket =null;

var state = 'init';

var pc = null;

var pcConfig={
		'iceServers':[{
			'urls':'turn:121.41.76.43:3478',
			'credential':'123456',
			'username':'huang'
		}]
	}

function sendMessage(roomid,data){
	if(socket){
		socket.emit('message',roomid,data);
	}
}

function getAnswer(desc){
	pc.setLocalDescription(desc);
	optBw.disabled =false;
	sendMessage(roomid,desc);
}

function handleAnswerError(err){
	console.error('Failed to get Answer!',err);
}

function getOffer(desc){
	pc.setLocalDescription(desc);
	sendMessage(roomid,desc)
}
function handleOfferError(err){
	console.error('Failed to get Offer!',err);
}

//接收远端流通道
function call(){
	if(state === 'joined_conn'){
		if(pc){
			var options = {
				offerToReceiveAudio:1,
				offerToReceiveVideo:1
			}
			pc.createOffer(options)
			  .then(getOffer)
			  .catch(handleOfferError);
		}
	}
}

// 第一步：开始服务
function connSignalServer(){
	//开启本地视频
	start();
	return true;
}

function conn(){
	//1 触发socke连接
	socket = io.connect();

	//2 加入房间后的回调
	socket.on('joined',(roomid,id)=>{

		state = 'joined';

		createPeerConnection();

		btnConn.disabled = true;
		btnLeave.disabled =false;

		console.log("reveive joined message:state=",state);
	});
	socket.on('otherjoin',(roomid,id)=>{

		if (state === 'joined_unbind') {
			createPeerConnection();
		}
		state = 'joined_conn';

		//媒体协商
		call();
		console.log("reveive otherjoin message:state=",state);
	});
	socket.on('full',(roomid,id)=>{
		console.log('receive full message ', roomid, id);

		closePeerConnection();
		closeLocalMedia();

		state = 'leaved';

		btnConn.disabled = false;
		btnLeave.disabled = true;
		console.log("reveive full message:state=",state);
		alert("the room is full!");
	});

	socket.on('leaved',(roomid,id)=>{

		state = 'leaved';
		socket.disconnect();
		btnConn.disabled = false;
		btnLeave.disabled = true;
		console.log("reveive leaved message:state=",state);
	});

	socket.on('bye',(roomid,id)=>{

		state = 'joined_unbind';
		closePeerConnection();
		console.log("reveive bye message:state=",state);
	});
	socket.on('disconnect', (socket) => {
		console.log('receive disconnect message!', roomid);
		if(!(state === 'leaved')){
			closePeerConnection();
			closeLocalMedia();
		}
		state = 'leaved';

	});
	socket.on('message',(roomid,id,data)=>{

		//媒体协商
		if(data){
			if(data.type === 'offer'){
				pc.setRemoteDescription(new RTCSessionDescription(data));
				pc.createAnswer()
				  .then(getAnswer)
				  .catch(handleAnswerError);
			}else if(data.type === 'answer'){
				console.log("reveive client message=====>",data);
				optBw.disabled = false;
				pc.setRemoteDescription(new RTCSessionDescription(data));
			}else if(data.type === 'candidate'){
				var candidate = new RTCIceCandidate({
					sdpMLineIndex:data.label,
					candidate:data.candidate
				});
				pc.addIceCandidate(candidate);

			}else{
				console.error('the message is invalid!',data)
			}
		}

		console.log("reveive client message",roomid,id,data);
	});

	socket.emit('join',roomid);
	return;
}

// 扑捉本地视频
function getMediaStream(stream){

	localStream =stream;
	//2 ===============显示本地视频===============
	localVideo.srcObject = localStream;

	//这个函数的调用时机特别重要 一定要在getMediaStream之后再调用，否则会出现绑定失败的情况
	conn();
}

function handleError(err){
	if(err){
		console.error("getUserMedia  error:",err);
	}
}

// 第二步：采集本地视频
function start(){


	if (!navigator.mediaDevices||
			!navigator.mediaDevices.getUserMedia) {
		  console.log("getUserMedia is not supported!")
		  return;
	} else {

		//1 ===============配置音视频参数===============
		var constraints={
			video:true,
			audio: false
		}

		navigator.mediaDevices.getUserMedia(constraints)
							  .then(getMediaStream)
							  .catch(handleError)
	}
}

//关闭流通道
function closeLocalMedia(){
	if (localStream&&localStream.getTracks()) {
		localStream.getTracks().forEach((track)=>{
			track.stop();
		});
	}
	localStream = null;
}


function leave(){
	if(socket){
		socket.emit('leave',roomid);
	}

	//释放资源
	closePeerConnection();
	closeLocalMedia();

	btnConn.disabled = false;
	btnLeave.disabled = true;
}

//创建本地流媒体链接
function createPeerConnection(){
	console.log('create RTCPeerConnection!');
	if(!pc){
		pc = new RTCPeerConnection(pcConfig);
		pc.onicecandidate = (e) =>{
			if(e.candidate){
				sendMessage(roomid,{
					type:'candidate',
					label:e.candidate.sdpMLineIndex,
					id:e.candidate.sdpMid,
					candidate:e.candidate.candidate
				});
			}
		}
		pc.ontrack = (e)=>{
			remoteVideo.srcObject = e.streams[0];
		}
	}
	if(pc === null || pc === undefined){
			console.error('pc is null or undefined!');
			return;
	}

	if(localStream === null || localStream === undefined){
		console.error('localStream is null or undefined!');
		return;
	}

	if(localStream){
		localStream.getTracks().forEach((track)=>{
			pc.addTrack(track,localStream);
		})
	}
}

//关闭本地媒体流链接
function closePeerConnection(){
	console.log('close RTCPeerConnection!');
	if(pc){
		pc.close();
		pc = null;
	}
}

//控制传输速率
function chang_bw(){
	optBw.disabled =true;
	var bw = optBw.options[optBw.selectedIndex].value;

	var vsender = null;
	var senders = pc.getSenders();
	senders.forEach(sender=>{
		if(sender&&sender.track && sender.track.kind === 'video'){
			vsender = sender;
		}
	});
	var parameters= vsender.getParameters();
	if(!parameters.encodings){
		return;
	}
	if(bw === 'unlimited'){
		return;
	}
	parameters.encodings[0].maxBitrate = bw * 1000;
	vsender.setParameters(parameters)
		   .then(()=>{
		   		optBw.disabled =false;
		   	 console.log('Successed to set parameters!');
		   })
		   .catch(err=>{
		   		 console.error(err);
		   })

}


btnConn.onclick = connSignalServer;

btnLeave.onclick = leave;

optBw.onchange=chang_bw;

测试地址：https://www.huangxiaoguo.club/bandwidth/index.html
