java接入阿里云短信注册

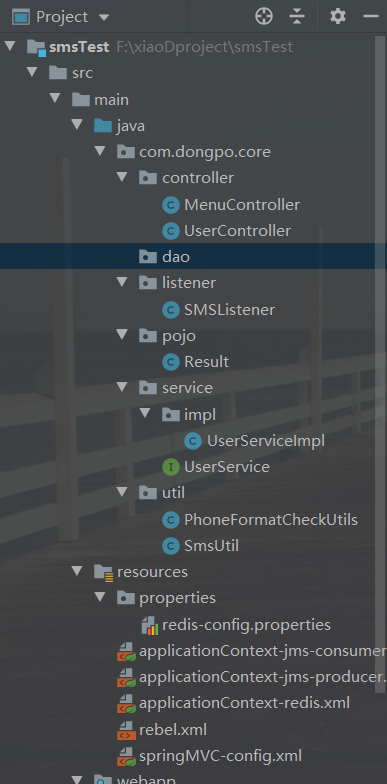

1.工程目录如下

2.接入消息中间件activeMQ

加入依赖

<dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jms</artifactId>
      <version>5.0.8.RELEASE</version>
    </dependency>
    <dependency>

      <groupId>org.apache.activemq</groupId>
      <artifactId>activemq-client</artifactId>
      <version>5.13.4</version>
    </dependency>
    <dependency>
      <groupId>javax.jms</groupId>
      <artifactId>javax.jms-api</artifactId>
      <version>2.0.1</version>
    </dependency>

这里的消息需要点对点模式，加入提供者配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:jms="http://www.springframework.org/schema/jms"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 真正可以产生Connection的ConnectionFactory，由对应的 JMS服务厂商提供-->
    <bean id="targetConnectionFactory" class="org.apache.activemq.ActiveMQConnectionFactory">
        <property name="brokerURL" value="tcp://192.168.2.2:61616"/>
    </bean>

    <!-- Spring用于管理真正的ConnectionFactory的ConnectionFactory -->
    <bean id="connectionFactory" class="org.springframework.jms.connection.SingleConnectionFactory">
        <!-- 目标ConnectionFactory对应真实的可以产生JMS Connection的ConnectionFactory -->
        <property name="targetConnectionFactory" ref="targetConnectionFactory"/>
    </bean>

    <!-- Spring提供的JMS工具类，它可以进行消息发送、接收等 -->
    <bean id="jmsTemplate" class="org.springframework.jms.core.JmsTemplate">
        <!-- 这个connectionFactory对应的是我们定义的Spring提供的那个ConnectionFactory对象 -->
        <property name="connectionFactory" ref="connectionFactory"/>
    </bean>

    <!--这个是队列目的地，点对点的  文本信息-->
    <bean id="smsDestination" class="org.apache.activemq.command.ActiveMQQueue">
        <constructor-arg value="sms"/>
    </bean>

</beans>

加入消费者配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:jms="http://www.springframework.org/schema/jms"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 真正可以产生Connection的ConnectionFactory，由对应的 JMS服务厂商提供-->
    <bean id="targetConnectionFactory" class="org.apache.activemq.ActiveMQConnectionFactory">
        <property name="brokerURL" value="tcp://192.168.2.2:61616"/>
    </bean>

    <!-- Spring用于管理真正的ConnectionFactory的ConnectionFactory -->
    <bean id="connectionFactory" class="org.springframework.jms.connection.SingleConnectionFactory">
        <!-- 目标ConnectionFactory对应真实的可以产生JMS Connection的ConnectionFactory -->
        <property name="targetConnectionFactory" ref="targetConnectionFactory"/>
    </bean>

    <!-- 点对点模式，接收sms消息-->
    <bean id="queueSMSDestination" class="org.apache.activemq.command.ActiveMQQueue">
        <!--指定从这个队列中去接收SMS信息-->
        <constructor-arg value="sms"/>
    </bean>

    <!-- 点对点模式, 消息监听容器  发送短信-->
    <bean class="org.springframework.jms.listener.DefaultMessageListenerContainer">
        <property name="connectionFactory" ref="connectionFactory" />
        <property name="destination" ref="queueSMSDestination" />
        <property name="messageListener" ref="smsListener" />
    </bean>
    <bean id="smsListener" class="com.dongpo.core.listener.SMSListener"></bean>

</beans>

3.接入redis

这里主要用来缓存验证码，手机号作为key，用户注册时输入的验证码与redis缓存作比较。
加入pom依赖

<dependency>
      <groupId>redis.clients</groupId>
      <artifactId>jedis</artifactId>
      <version>2.8.1</version>
    </dependency>

    <dependency>
      <groupId>org.springframework.data</groupId>
      <artifactId>spring-data-redis</artifactId>
      <version>1.7.2.RELEASE</version>
    </dependency>

redis的properties配置文件如下，此时没有设置密码

redis.host=192.168.2.2
redis.port=6379
redis.pass=
redis.maxIdle=300
redis.maxWait=3000
redis.testOnBorrow=true

redis的xml配置如下

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

    <context:property-placeholder location="classpath*:/properties/*.properties" />
    <!-- redis 相关配置 -->
    <bean id="poolConfig" class="redis.clients.jedis.JedisPoolConfig">
        <property name="maxIdle" value="${redis.maxIdle}" />
        <property name="maxWaitMillis" value="${redis.maxWait}" />
        <property name="testOnBorrow" value="${redis.testOnBorrow}" />
    </bean>
    <bean id="JedisConnectionFactory"
          class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory"
          p:host-name="${redis.host}"
          p:port="${redis.port}"
          p:password="${redis.pass}"
          p:pool-config-ref="poolConfig"/>

    <bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">
        <property name="connectionFactory" ref="JedisConnectionFactory" />
    </bean>
</beans>

4.接入alibaba短信服务

加入pom依赖

<dependency>
      <groupId>com.aliyun</groupId>
      <artifactId>aliyun-java-sdk-core</artifactId>
      <version>4.1.0</version>
    </dependency>
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>fastjson</artifactId>
      <version>1.2.62</version>
    </dependency>

基本业务流程：controller调用service传递phone参数,service进行生成验证码，存储到redis中，并且将手机号，短信内容，签名，模板封装成map发送到消息队列中。消息监听器监听到会调用smsUtil发送短信。
service层代码如下

package com.dongpo.core.service.impl;

import com.alibaba.fastjson.JSON;
import com.dongpo.core.service.UserService;
import org.apache.activemq.command.ActiveMQQueue;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.jms.core.JmsMessagingTemplate;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.jms.core.MessageCreator;
import org.springframework.stereotype.Service;

import javax.jms.JMSException;
import javax.jms.MapMessage;
import javax.jms.Message;
import javax.jms.Session;
import java.util.HashMap;
import java.util.Map;
import java.util.Random;
import java.util.concurrent.TimeUnit;

/**
 * @className UserServiceImpl
 * @Description: TODO
 * @Author dongpo
 * @Date 2020/3/25
 * @Version V1.0
 **/
@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private RedisTemplate redisTemplate;

    @Autowired
    private JmsTemplate jmsTemplate;

    @Autowired
    private ActiveMQQueue smsDestination;


    public void sendCode(final String phone){
        //1. 生成一个随机6为数字, 作为验证码
        StringBuffer sb = new StringBuffer();
        for (int i =1; i < 7; i++) {
            int s  = new Random().nextInt(10);
            sb.append(s);
        }
        //2. 手机号作为key, 验证码作为value保存到redis中, 生存时间为10分钟
        redisTemplate.boundValueOps(phone).set(sb.toString(), 60 * 10, TimeUnit.SECONDS);
        final String smsCode = sb.toString();

        //3. 将手机号, 短信内容, 模板编号, 签名封装成map消息发送给消息服务器
        jmsTemplate.send(smsDestination, new MessageCreator() {
            @Override
            public Message createMessage(Session session) throws JMSException {
                MapMessage message = session.createMapMessage();
                message.setString("mobile", phone);//手机号
                message.setString("template_code", "***");//模板编码
                message.setString("sign_name", "**");//签名
                Map map=new HashMap();
                map.put("code", ***);	//验证码
                message.setString("param", JSON.toJSONString(map));
                return (Message) message;
            }
        });
    }
}

listener监听器代码如下

package com.dongpo.core.listener;
import com.dongpo.core.util.SmsUtil;
import javax.jms.JMSException;
import javax.jms.MapMessage;
import javax.jms.Message;
import javax.jms.MessageListener;

public class SMSListener implements MessageListener {
    @Override
    public void onMessage(Message message) {
        MapMessage map = (MapMessage)message;
        try {
            SmsUtil.sendSms( map.getString("mobile"),
                    map.getString("template_code"),
                    map.getString("sign_name"),
                    map.getString("param"));
        } catch (JMSException e) {
            e.printStackTrace();
        }
    }
}

smsUtil代码如下

扫描二维码关注公众号，回复： 10167428 查看本文章

package com.dongpo.core.util;

import com.aliyuncs.CommonRequest;
import com.aliyuncs.CommonResponse;
import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.IAcsClient;
import com.aliyuncs.http.MethodType;
import com.aliyuncs.profile.DefaultProfile;

public class SmsUtil {

    /**
     * 发送短信
     * @param mobile 手机号
     * @param template_code 模板号
     * @param sign_name 签名
     * @param param 验证码
     */
    public static void sendSms(String mobile,String template_code,String sign_name,String param) {
        DefaultProfile profile = DefaultProfile.getProfile("**", "**", "**");
        IAcsClient client = new DefaultAcsClient(profile);

        CommonRequest request = new CommonRequest();
        request.setMethod(MethodType.POST);
        request.setDomain("**");
        request.setVersion("**");
        request.setAction("**");
        request.putQueryParameter("**", "**");
        request.putQueryParameter("**", mobile);
        request.putQueryParameter("**", sign_name);
        request.putQueryParameter("***", template_code);
        request.putQueryParameter("TemplateParam",param);
        try {
            CommonResponse response = client.getCommonResponse(request);
            System.out.println(response.getData());
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}
