Spring Boot事务：理解事务的传播

其他 2020-03-25 11:56:01 阅读次数: 0

在我之前的教程中，Spring Boot事务管理例子中，我们了解了事务的声明式实现和管理。在这片文章中，我们会
来看事务的传播性以及不同的传播类型。下一篇文章中，我们将会学习Spring Boot 事务回滚和Spring Boot事务隔离级别。

事务的传播性是什么？

任何应用程序都涉及许多服务或组件，这些服务或组件需要调用其他服务或组件。事务传播指示任何组件或服务是否会参与或将参与事务，以及__如果调用组件/服务已经创建或尚未创建事务，它将如何执行__。

在这里插入图片描述

准备开始

我们将利用上一章已经开发好的Spring Boot事务项目。它已经具有Organization Service,该服务调用了Employee Service和Health Insurance Service。

并且，在之前的例子中，我们只是在Organization Service上添加了事务注解。
但是，假设用户希望同时调用Employee Service，即：

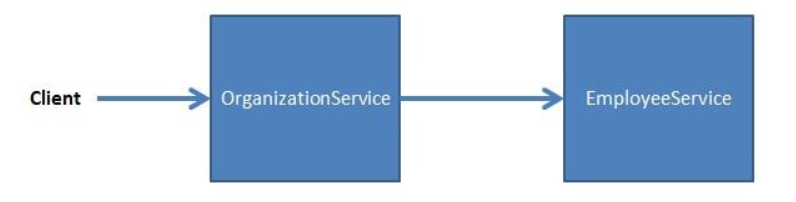

客户端通过Organization Service来调用Employee Service：

在这里插入图片描述
客户端直接调用Employee Service

在这里插入图片描述
因为可以直接调用Employee Service，我们将对Employee Service使用事务注解。所以，Employee Service和Organization Service都将使用事务注解。

我们将通过观察Employee Service和Organization Service的行为来观察各种传播场景。有六种类型的事务传播：

  • REQUIRED
  • SUPPORTS
  • NOT_SUPPORTED
  • REQUIRES_NEW
  • NEVER
  • MANDATORY

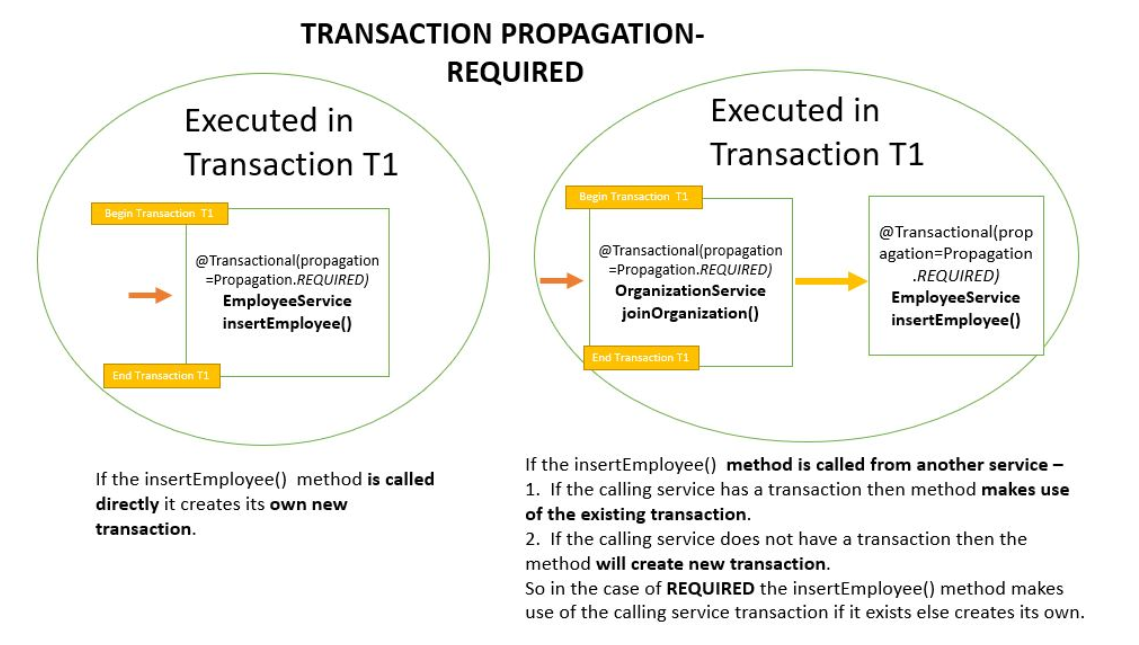

事务传播，默认是REQUIRED

在这里插入图片描述
左侧：如果insertEmployee()方法被直接调用，它会自己创建一个自己的新的事务。

右侧：如果insertEmployee()方法是从另外一个服务中调用的;

  • 如果调用的service已经有一个事务，那么该方法就会使用已经存在的事务
  • 如果调用的service中不存在事务，那么方法就会创建一个新的事务
    所以如果存在事务，那么insertEmployee()方法就会继续使用原有的事务，否则就会利用REQUIRED来创建一个新的事务。

在这里，Organization Service和Employee Service都定义了事务的传播行为为Required这也是默认的事务传播行为，

代码：

下面是Organization Service的代码：

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.model.Employee;
import com.javainuse.model.EmployeeHealthInsurance;
import com.javainuse.service.EmployeeService;
import com.javainuse.service.HealthInsuranceService;
import com.javainuse.service.OrganizationService;

@Service
@Transactional
public class OrganzationServiceImpl implements OrganizationService {

	@Autowired
	EmployeeService employeeService;

	@Autowired
	HealthInsuranceService healthInsuranceService;

	@Override
	public void joinOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.insertEmployee(employee);

		if (employee.getEmpId().equals("emp1")) {
			throw new RuntimeException("thowing exception to test transaction rollback");
		}

		healthInsuranceService.registerEmployeeHealthInsurance(employeeHealthInsurance);
	}

	@Override
	public void leaveOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.deleteEmployeeById(employee.getEmpId());
		healthInsuranceService.deleteEmployeeHealthInsuranceById(employeeHealthInsurance.getEmpId());
	}
}

Employee Service的代码如下所示：

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Service
@Transactional
public class EmployeeServiceImpl implements EmployeeService {

	@Autowired
	EmployeeDao employeeDao;

	@Override
	public void insertEmployee(Employee employee) {
		employeeDao.insertEmployee(employee);
	}

	@Override
	public void deleteEmployeeById(String empid) {
		employeeDao.deleteEmployeeById(empid);
	}
}

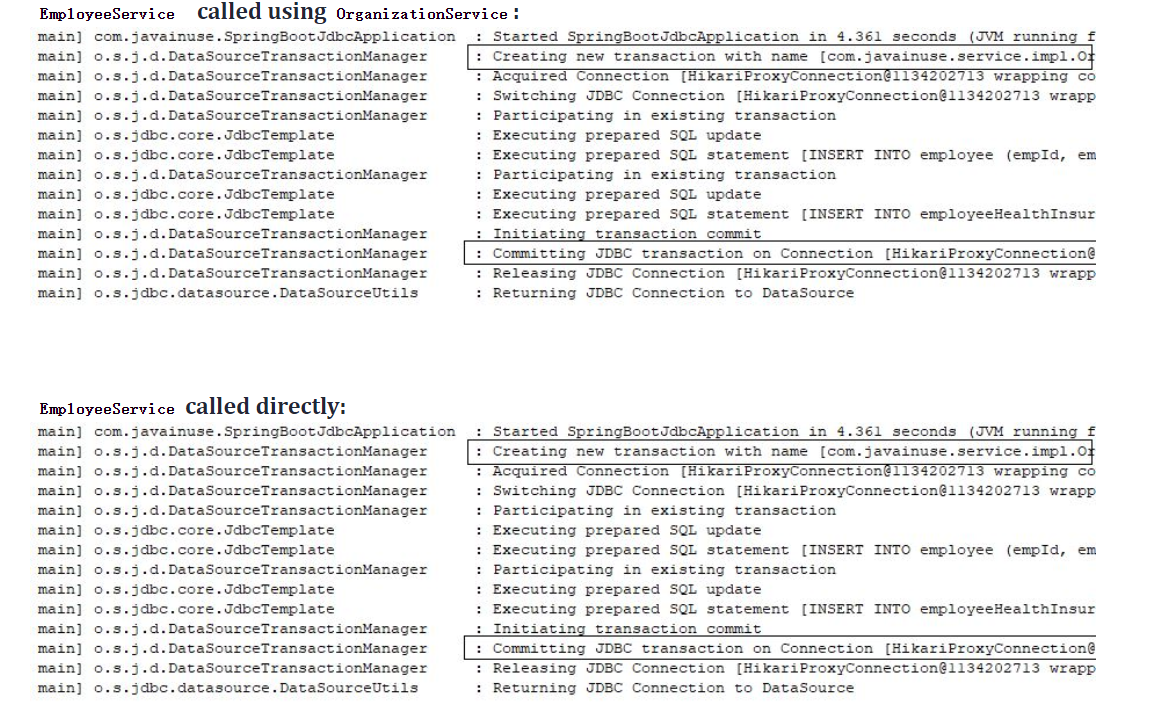

输出

__通过使用OrganizationService__调用EmployeeService:

在这里插入图片描述

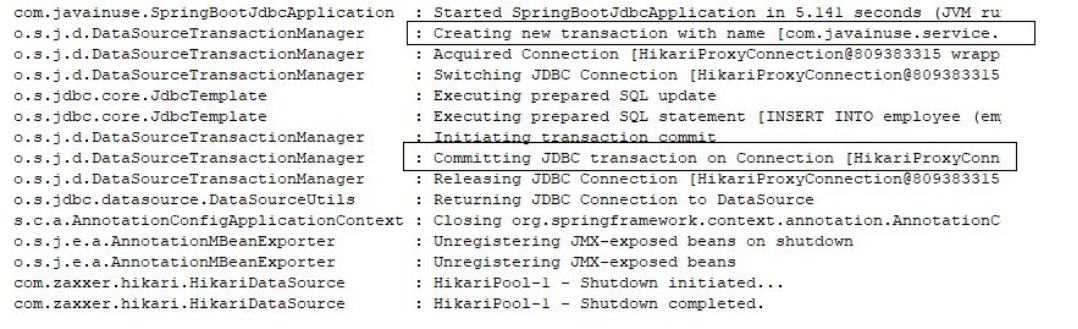

直接调用employeeService：

在这里插入图片描述

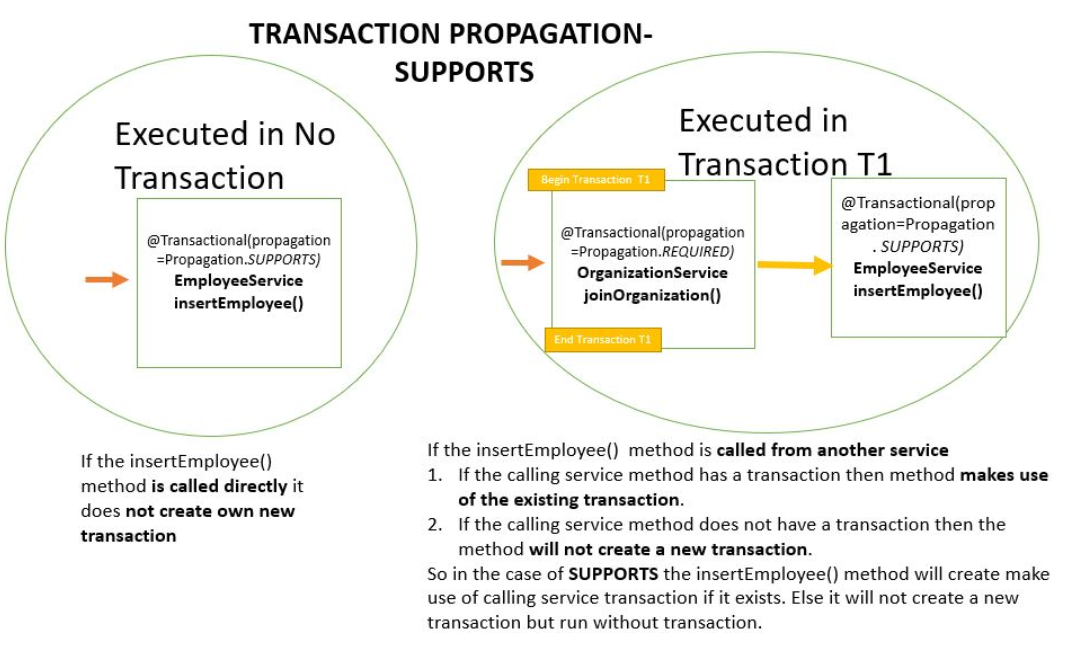

事务传播行为-SUPPORTS

在这里插入图片描述
从上图可以看出来两点

  • 当EmployeeService中方法insertEmployee()被直接调用的话，如果使用的事务传播行为为SUPPORTS，那么它不会自己创建自己新的事务
  • 当EmployeeService中insertEmployee()通过OrganizationService调用的时候，如果OrganizationService存在事务，那么insertEmployee就会沿用OrganizationService的事务传播行为，
    否则如果OrganizationService不存在事务传播行为，那么insertEmployee()方法就会执行，但是不会开启任何事务。

在上面的示例中，OrganizationService的事务传播行为定义为REQUIRED,EmployeeService的事务定义为SUPPORTS

代码：

OrganizationService的实现如下：

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.model.Employee;
import com.javainuse.model.EmployeeHealthInsurance;
import com.javainuse.service.EmployeeService;
import com.javainuse.service.HealthInsuranceService;
import com.javainuse.service.OrganizationService;

@Service
@Transactional
public class OrganzationServiceImpl implements OrganizationService {

	@Autowired
	EmployeeService employeeService;

	@Autowired
	HealthInsuranceService healthInsuranceService;

	@Override
	public void joinOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.insertEmployee(employee);
		if (employee.getEmpId().equals("emp1")) {
		throw new RuntimeException("thowing exception to test transaction rollback");
		}
		healthInsuranceService.registerEmployeeHealthInsurance(employeeHealthInsurance);
	}

	@Override
	public void leaveOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.deleteEmployeeById(employee.getEmpId());
		healthInsuranceService.deleteEmployeeHealthInsuranceById(employeeHealthInsurance.getEmpId());
	}
}

Employee Service的代码如下所示：

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Service
@Transactional(propagation=Propagation.SUPPORTS)
public class EmployeeServiceImpl implements EmployeeService {

	@Autowired
	EmployeeDao employeeDao;

	@Override
	public void insertEmployee(Employee employee) {
		employeeDao.insertEmployee(employee);
	}

	@Override
	public void deleteEmployeeById(String empid) {
		employeeDao.deleteEmployeeById(empid);
	}
}

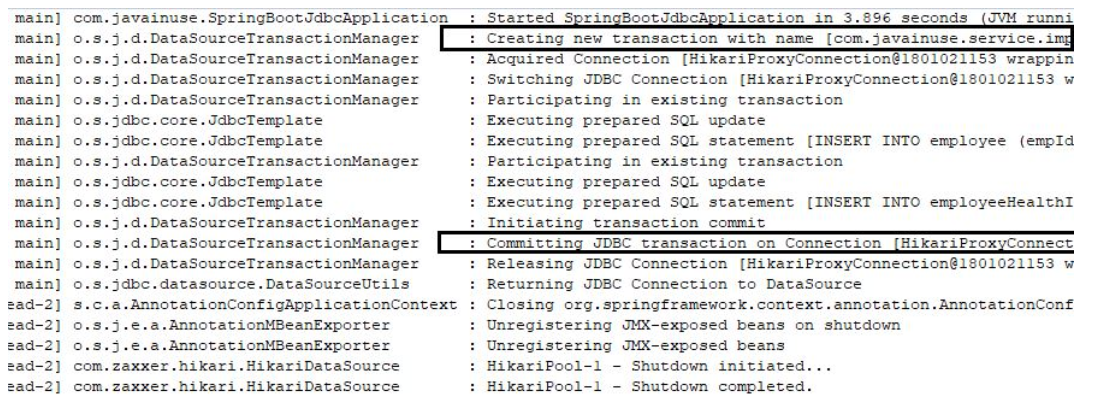

输出：

在这里插入图片描述

事务传播行为:NOT_SUPPORTED

[外链图片转存失败(img-CpzTju2a-1566307900626)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_009.png)]

从上面的描述中可以知道，当EmployeeService中insertEmployee被设定事务传播行为为NOT_SUPPORTED的时候， 直接调用该方法或者通过OrganizationService调用，该方法都不会创建事务或者沿用OrganizationService`的事务。

代码：

OrganizationService的实现如下：`

 package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.model.Employee;
import com.javainuse.model.EmployeeHealthInsurance;
import com.javainuse.service.EmployeeService;
import com.javainuse.service.HealthInsuranceService;
import com.javainuse.service.OrganizationService;

@Service
@Transactional
public class OrganzationServiceImpl implements OrganizationService {

	@Autowired
	EmployeeService employeeService;

	@Autowired
	HealthInsuranceService healthInsuranceService;

	@Override
	public void joinOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.insertEmployee(employee);
		if (employee.getEmpId().equals("emp1")) {
			throw new RuntimeException("thowing exception to test transaction rollback");
		}
		healthInsuranceService.registerEmployeeHealthInsurance(employeeHealthInsurance);
	}

	@Override
	public void leaveOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.deleteEmployeeById(employee.getEmpId());
		healthInsuranceService.deleteEmployeeHealthInsuranceById(employeeHealthInsurance.getEmpId());
	}
}

EmployeeService的实现：

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Service
@Transactional(propagation=Propagation.NOT_SUPPORTED)
public class EmployeeServiceImpl implements EmployeeService {

	@Autowired
	EmployeeDao employeeDao;

	@Override
	public void insertEmployee(Employee employee) {
		employeeDao.insertEmployee(employee);
	}

	@Override
	public void deleteEmployeeById(String empid) {
		employeeDao.deleteEmployeeById(empid);
	}
}

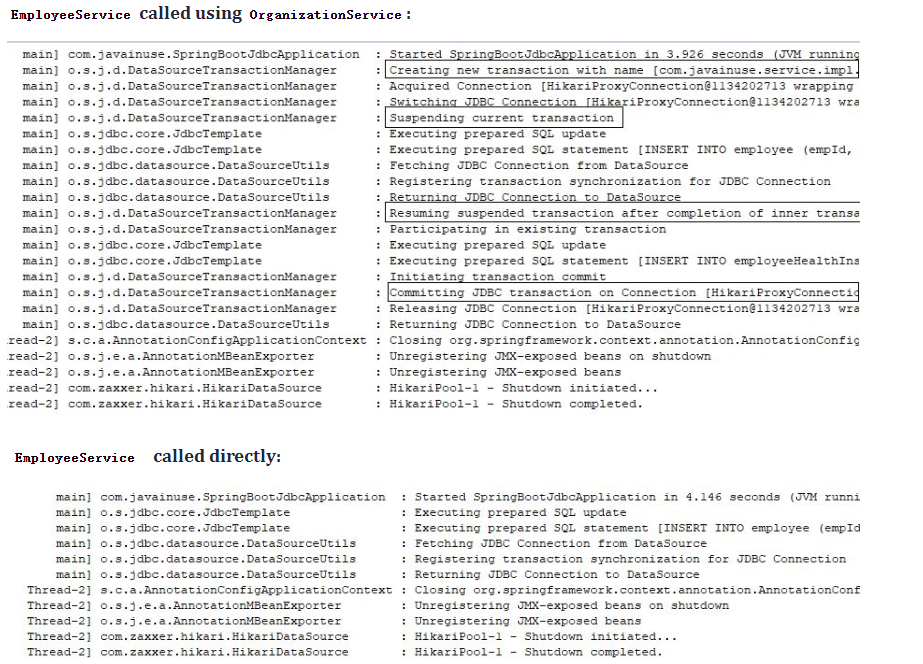

输出：

在这里插入图片描述

事务的传播行为REQUIRES_NEW

[外链图片转存失败(img-scz5W9d9-1566307900629)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_011.png)]

从图中的描述中可以知道，无论是直接被调用还是通过其他的Service来调用，事务的传播行为REQUIRES_NEW总是会创建自己的事务。

代码：

OrganizationService的实现如下：`

 package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.model.Employee;
import com.javainuse.model.EmployeeHealthInsurance;
import com.javainuse.service.EmployeeService;
import com.javainuse.service.HealthInsuranceService;
import com.javainuse.service.OrganizationService;

@Service
@Transactional
public class OrganzationServiceImpl implements OrganizationService {

	@Autowired
	EmployeeService employeeService;

	@Autowired
	HealthInsuranceService healthInsuranceService;

	@Override
	public void joinOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.insertEmployee(employee);

		if (employee.getEmpId().equals("emp1")) {
			throw new RuntimeException("thowing exception to test transaction rollback");
		}

		healthInsuranceService.registerEmployeeHealthInsurance(employeeHealthInsurance);
	}

	@Override
	public void leaveOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.deleteEmployeeById(employee.getEmpId());
		healthInsuranceService.deleteEmployeeHealthInsuranceById(employeeHealthInsurance.getEmpId());
	}
}

EmployeeService的实现：

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Service
@Transactional(propagation=Propagation.REQUIRES_NEW)
public class EmployeeServiceImpl implements EmployeeService {

	@Autowired
	EmployeeDao employeeDao;

	@Override
	public void insertEmployee(Employee employee) {
		employeeDao.insertEmployee(employee);
	}

	@Override
	public void deleteEmployeeById(String empid) {
		employeeDao.deleteEmployeeById(empid);
	}
}

输出：

[外链图片转存失败(img-JY3oHdqE-1566307900630)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_012.png)]

[外链图片转存失败(img-1slkp2R0-1566307900631)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_013.png)]

事务的传播行为:NEVER

[外链图片转存失败(img-RmJGIdHY-1566307900632)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_014.png)]

从上图可以知道，如果该方法直接被调用，它不会自己创建一个事务；如果该方法被其它的进行调用，如果调用的Service方法存在事务，那么就会抛出一个异常。
否则，它不会创建事务，然后自己运行。

代码：

OrganizationService的实现如下：`

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.model.Employee;
import com.javainuse.model.EmployeeHealthInsurance;
import com.javainuse.service.EmployeeService;
import com.javainuse.service.HealthInsuranceService;
import com.javainuse.service.OrganizationService;

@Service
@Transactional
public class OrganzationServiceImpl implements OrganizationService {

	@Autowired
	EmployeeService employeeService;

	@Autowired
	HealthInsuranceService healthInsuranceService;

	@Override
	public void joinOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.insertEmployee(employee);

		if (employee.getEmpId().equals("emp1")) {
			throw new RuntimeException("thowing exception to test transaction rollback");
		}

		healthInsuranceService.registerEmployeeHealthInsurance(employeeHealthInsurance);
	}

	@Override
	public void leaveOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.deleteEmployeeById(employee.getEmpId());
		healthInsuranceService.deleteEmployeeHealthInsuranceById(employeeHealthInsurance.getEmpId());
	}
}

EmployeeService实现：

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Service
@Transactional(propagation=Propagation.NEVER)
public class EmployeeServiceImpl implements EmployeeService {

	@Autowired
	EmployeeDao employeeDao;

	@Override
	public void insertEmployee(Employee employee) {
		employeeDao.insertEmployee(employee);
	}

	@Override
	public void deleteEmployeeById(String empid) {
		employeeDao.deleteEmployeeById(empid);
	}
}

输出：

[外链图片转存失败(img-XwOPQdEb-1566307900633)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_015.png)]

事务的传播行为：MANDATORY

[外链图片转存失败(img-SNTbbJul-1566307900634)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_016.png)]

如果方法上指定的事务传播行为为MANDATORY,直接被调用的时候会抛出异常；如果被其它服务调用，存在事务传播行为就会沿用，否则就会抛出异常。

代码：

OrganizationService的实现如下：`

package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.model.Employee;
import com.javainuse.model.EmployeeHealthInsurance;
import com.javainuse.service.EmployeeService;
import com.javainuse.service.HealthInsuranceService;
import com.javainuse.service.OrganizationService;

@Service
@Transactional
public class OrganzationServiceImpl implements OrganizationService {

	@Autowired
	EmployeeService employeeService;

	@Autowired
	HealthInsuranceService healthInsuranceService;

	@Override
	public void joinOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.insertEmployee(employee);

		if (employee.getEmpId().equals("emp1")) {
			throw new RuntimeException("thowing exception to test transaction rollback");
		}

		healthInsuranceService.registerEmployeeHealthInsurance(employeeHealthInsurance);
	}

	@Override
	public void leaveOrganization(Employee employee, EmployeeHealthInsurance employeeHealthInsurance) {
		employeeService.deleteEmployeeById(employee.getEmpId());
		healthInsuranceService.deleteEmployeeHealthInsuranceById(employeeHealthInsurance.getEmpId());
	}
}

EmployeeService实现：

 package com.javainuse.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.javainuse.dao.EmployeeDao;
import com.javainuse.model.Employee;
import com.javainuse.service.EmployeeService;

@Service
@Transactional(propagation=Propagation.MANDATORY)
public class EmployeeServiceImpl implements EmployeeService {

	@Autowired
	EmployeeDao employeeDao;

	@Override
	public void insertEmployee(Employee employee) {
		employeeDao.insertEmployee(employee);
	}

	@Override
	public void deleteEmployeeById(String empid) {
		employeeDao.deleteEmployeeById(empid);
	}
}

输出：

[外链图片转存失败(img-zfBk8eDD-1566307900635)(C:\Users\liyongyong\Desktop\spring_boot_transaction_propagation_017.png)]

事务传播行为总结

  • REQUIRED ：一直在事务中执行，如果这里存在事务，它会使用已经存在的事务；如果不存在事务，它会新建一个事务。
  • SUPPORTS： 它可能在事务中运行，也可能不在事务中运行。如果当前事务存在，则支持它。如果不存在，则在没有事务的情况下执行。
  • NOT_SUPPORTED ： 始终在没有事务的情况下执行。如果存在现有事务，则挂起该事务。
  • REQUIRES_NEW ： 始终在新事务中执行。如果存在现有事务，则挂起该事务。
  • NEVER ： 在没有任何事务的情况下执行。如果存在现有事务，则引发异常
  • MANDATORY ：始终在事务中执行。如果存在现有事务，则使用该事务。如果没有现有事务，它将引发异常。

原文链接：https://dzone.com/articles/spring-boot-transactions-tutorial-understanding-tr
作者：Rida Shaikh
译者：lee

Danishlyy1995
发布了453 篇原创文章 · 获赞 539 · 访问量 156万+
他的留言板 关注

猜你喜欢

转载自blog.csdn.net/u012934325/article/details/99887077
今日推荐
基于大语言模型的开源知识库问答系统 MaxKB GitHub Star 数量突破 5,000 个！
美国拟限制 AI 大模型出口中国和俄罗斯
苹果将与 OpenAI 达成协议，将 ChatGPT 应用于 iPhone
openKylin 社区生态委员会第六次会议圆满召开
阿里云正式发布通义千问 2.5
Python 3.13 发布首个 Beta：实验性自由线程模式和 JIT、改进交互式解释器
Stack Overflow 拿我的代码去训练 AI 大模型，还封了我的账号
Pop!_OS 的 COSMIC 桌面完成 App Store 上架工作
《2024 年一季度互联网投融资运行情况》研究报告
报告：Django 仍然是 74% 开发者的首选
15 年前上了“FFmpeg 耻辱柱”，今天他还得谢谢咱——腾讯QQPlayer一雪前耻？
TIOBE 5 月榜单：Fortran “复活”进入 Top 10
周排行
记一下去大梅沙的准备（2018-05-26）
Spring 注解 事务
基于HTTP协议的客户端缓存
阿里云rds 备份和还原
[PHP] 几个拖慢 PHP 程序/API 运行速度的点
python 代码风格------------PEP8规则
js控制json生成菜单——自制菜单（一）
将字符串: 'k:1|k1:2|k2:3|k3:4 ' ,处理成 python 字典: {'k':1, 'k1':2, ...}
微信小程序转支付宝小程序
Qt551.窗口滚动条
每日归档
更多
2024-05-13(18)
2024-05-12(0)
2024-05-11(38)
2024-05-10(38)
2024-05-09(35)
2024-05-08(42)
2024-05-07(14)
2024-05-06(40)
2024-05-05(0)
2024-05-04(7)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
