theory
Preliminary knowledge of examples in the book
Explanation:
import numpy as np
#A节点与发电机组关联矩阵
"""
发电机组1，发电机组2，发电机组3
节点1
节点2
节点3
"""
A=np.array([[1,1,0],[0,0,1],[0,0,0]])
#B节点与负荷关联矩阵
"""
节点2负荷，节点3负荷
节点1
节点2
节点3
"""
B=np.array([[0,0],[1,0],[0,1]])
#S为节点与支路关联矩阵。其支路始节点对应元素为1，终节点对应-1
"""
支路12 ，支路13，支路23
节点1
节点2
节点3
"""
S=np.array([[1,1,0],
[-1,0,1],
[0,-1,-1]])
#X为支路电抗矩阵，它是一个对角阵，对角元素为各支路电抗值，其余元素为0
X=np.array([[0.25,0,0],
[0,0.25,0],
[0,0,0.25]])
Text-Examples on the book
Regardless of network constraints
Consider network constraints
Text-Solving the calculation examples on the book
The objective function is shown in the figure
Without looking at this picture, I use my brain to think about
network security constraints. As the name suggests, they are in general scheduling. At the same time, they are trend satisfaction constraints, KCL, KVL, etc.
So we can understand that the optimization goal is the traditional economic dispatch optimization goal, and the
constraints are respectively
- The equation constrains input power = load.
- Inequality constraints, the upper and lower limits of the generator set.
- The equation constraint power flow satisfies KCL, KVL. (When we find the power flow through the transfer factor algorithm, the power flow itself satisfies KCL, KVL), this is the upper and lower limit of the equation constraint that we transform into the power flow.
Transfer factor algorithm for power flow
#Node power net input vector Pinj=[PG1,PG2,PG3-PD3]
The format of the #SF matrix is as follows. When injecting power into a node, the power must flow from the reference node.
Take the reference node as 1.
| - | When node 1 injects 1 power, | When node 2 injects 1 power | When node 3 injects 1 power |
|---|---|---|---|
| Branch 1-2 | 0 (inflow from node 1 and outflow from reference node 1, that is, do not take branch 1-2) | -2/3 At this time, the current direction is 2 points to 1, which is opposite to 1-2, so it is -. According to the figure, the value 2/3 can be obtained | -1/3 |
| 2 times branch 1-3 | 0 | -1/3, the current direction is 3 to 1 | -2/3 |
| Branch 2-3 | 0 | 1/3 | -1/3 |

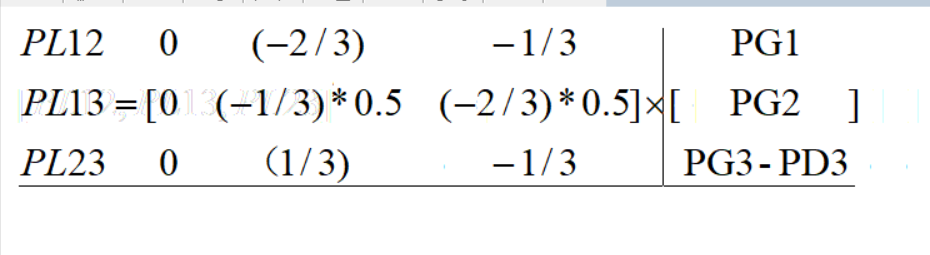

Get the tidal current equation
Expand to get the trend of Figure 3-5 as follows
PD3 = 800
PL12 = -(2 / 3) * PG2 - (1 / 3) * PG3 + (1 / 3) * PD3
PL13 = (-(1 / 3) * PG2 - (2 / 3) * PG3 + (2 / 3) * PD3) * 0.05
PL23 = (1 / 3) * PG2 - (1 / 3) * PG3 + (1 / 3) * PD3
Programming language: python
import numpy as np
from scipy import optimize as opt
import numpy as np
from scipy.optimize import minimize
# 目标函数
def objective(x): #=原文中的mincost
p11=x[0]
p12=x[1]
p13=x[2]
p21=x[3]
p22=x[4]
p23=x[5]
p31=x[6]
p32=x[7]
p33=x[8]
return (40*p11+50*p12+57.5*p13+43.75*p21+46.25*p22+48.75*p23+55.8*p31+57*p32+58.2*p33)
# 约束条件
def constraint1(x): #等式约束
pI11 = x[0]
pI12 = x[1]
pI13 = x[2]
pI21 = x[3]
pI22 = x[4]
pI23 = x[5]
pI31 = x[6]
pI32 = x[7]
pI33 = x[8]
PG1 = 100 + pI11 + pI12 + pI13
PG2 = 100 + pI21 + pI22 + pI23
PG3 = 50 + pI31 + pI32 + pI33
return pI11+pI12+pI13+pI21+pI22+pI23+pI31+pI32+pI33-550
#return PG1+PG2+PG3-800
#上下限
pI11=(0,200)
pI12 = (0,200)
pI13 = (0,100)
pI21 = (0,100)
pI22 = (0,100)
pI23 = (0,100)
pI31 =(0,50)
pI32 = (0,50)
pI33 = (0,50)
bnds=(pI11,pI12,pI13,pI21,pI22,pI23,pI31,pI32,pI33)
# 约束条件
def constraint2(x): #不等式约束 线路PL12 《=300
pI11 = x[0]
pI12 = x[1]
pI13 = x[2]
pI21 = x[3]
pI22 = x[4]
pI23 = x[5]
pI31 = x[6]
pI32 = x[7]
pI33 = x[8]
PD3=800
PG1 = 100 + pI11 + pI12 + pI13
PG2 = 100 + pI21 + pI22 + pI23
PG3 = 50 + pI31 + pI32 + pI33
PL12 = -(2 / 3) * PG2 - (1 / 3) * PG3 + (1 / 3) * PD3
return 300-np.abs(PL12)
# 约束条件
def constraint3(x): #不等式约束 不等式约束 线路PL13 《=300
pI11 = x[0]
pI12 = x[1]
pI13 = x[2]
pI21 = x[3]
pI22 = x[4]
pI23 = x[5]
pI31 = x[6]
pI32 = x[7]
pI33 = x[8]
PD3=800
PG1 = 100 + pI11 + pI12 + pI13
PG2 = 100 + pI21 + pI22 + pI23
PG3 = 50 + pI31 + pI32 + pI33
PL13 = (-(1 / 3) * PG2 - (2 / 3) * PG3 + (2 / 3) * PD3) * 0.05
return 300-np.abs(PL13)
# 约束条件
def constraint4(x): #不等式约束 不等式约束 线路PL23 《=330
pI11 = x[0]
pI12 = x[1]
pI13 = x[2]
pI21 = x[3]
pI22 = x[4]
pI23 = x[5]
pI31 = x[6]
pI32 = x[7]
pI33 = x[8]
PD3=800
PG1 = 100 + pI11 + pI12 + pI13
PG2 = 100 + pI21 + pI22 + pI23
PG3 = 50 + pI31 + pI32 + pI33
PL23 = (1 / 3) * PG2 - (1 / 3) * PG3 + (1 / 3) * PD3
return 330-np.abs(PL23)
con1 = {
'type': 'eq', 'fun': constraint1}
con2 = {
'type': 'ineq', 'fun': constraint2}
con3 = {
'type': 'ineq', 'fun': constraint3}
con4 = {
'type': 'ineq', 'fun': constraint4}
cons = ([con1,con2,con3,con4]) # 4个约束条件
if __name__ =='__main__':
# 初始值
x0 = np.random.uniform(10, 400, 9)
# 计算
solution = minimize(objective, x0, method='SLSQP',
bounds=bnds, constraints=cons)
x = solution.x
pI11 = x[0]
pI12 = x[1]
pI13 = x[2]
pI21 = x[3]
pI22 = x[4]
pI23 = x[5]
pI31 = x[6]
pI32 = x[7]
pI33 = x[8]
#
PG1 = 100 + pI11 + pI12 + pI13
PG2 = 100 + pI21 + pI22 + pI23
PG3 = 50 + pI31 + pI32 + pI33
PL13 = 0.5 * ((0.01 + 0.01) * (PG3 - 800) + 0.01 * PG2) / (0.01 + 0.01 + 0.01)
PL12 = ((0.01 + 0.01) * PG2 + 0.01 * (PG3 - 800)) / (0.01 + 0.01 + 0.01)
PL23 = ((0.01 + 0.01) * (PG3 - 800) + 0.01 * PG1) / (0.01 + 0.01 + 0.01)
print('PG1',PG1)
print('PG2', PG2)
print('PG3', PG3)
print('PL13',np.abs(PL13))
print('PL12',np.abs(PL12))
print("PL23",np.abs(PL23))
The result is shown in the figure, this code is much simpler than the method given in the book.
See more optimization algorithms
Difficulty: Understanding the transfer factor method to seek trends
