Aras Setting Management Item (Item) @ Part 2
Set the options in the upper part of the management item configuration area for customized management. Correspond to the following parts:
Name
Set the name of the management item Item in the Name input box, which is in accordance with the input rules set by the Aras software.

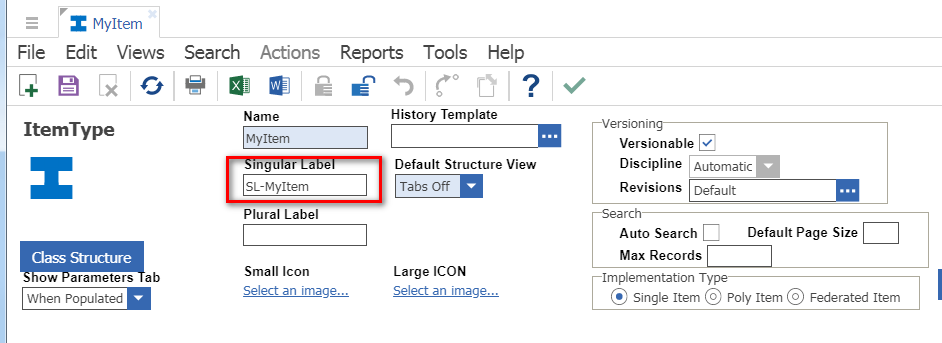

Singular Label

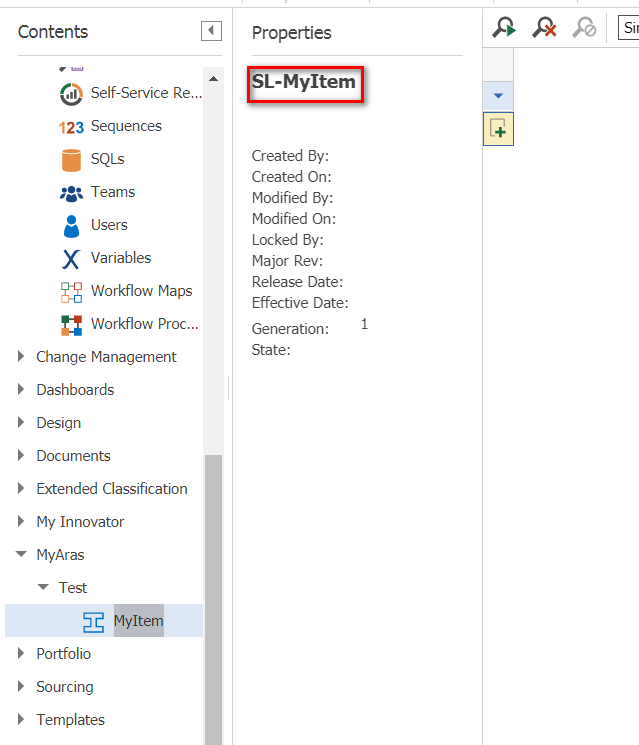

The Singular Label input box is set to display the label on the Item management page (not the configuration page) of the management item. An example is as follows:

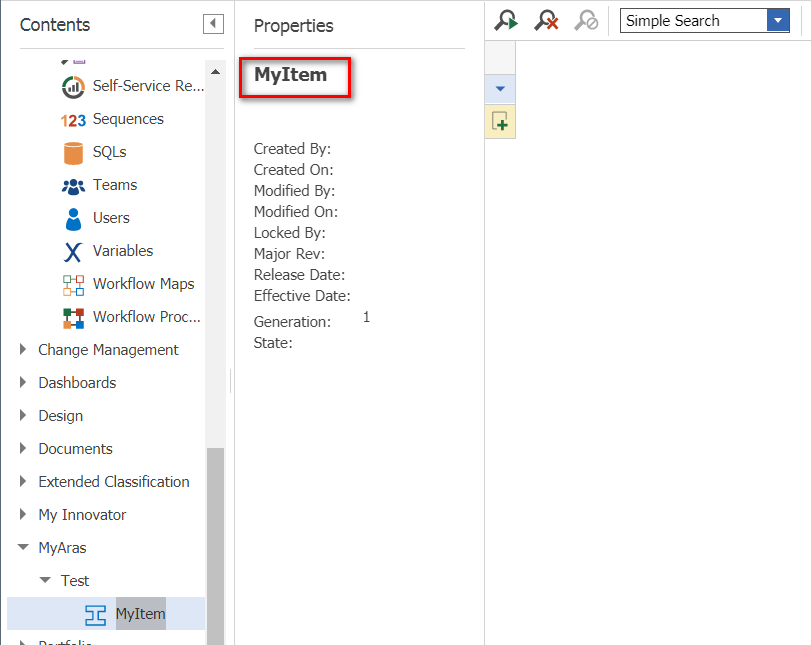

Singular Lable is not set, the default is the same as Name
After Singular Lable is set,

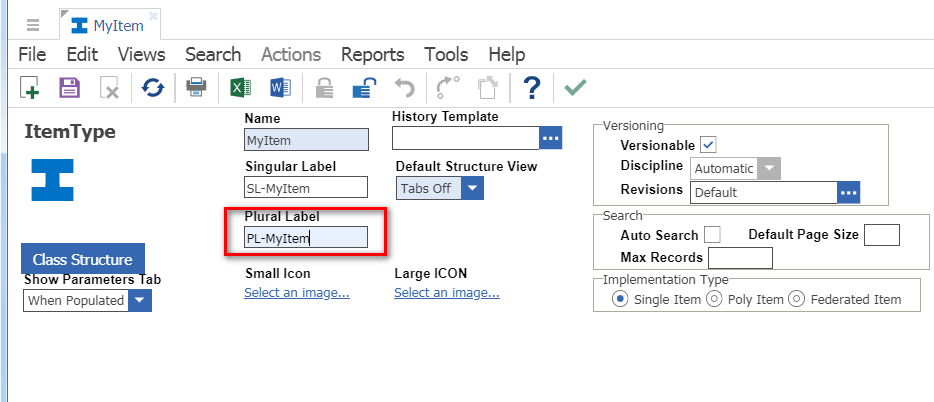

Singular Label

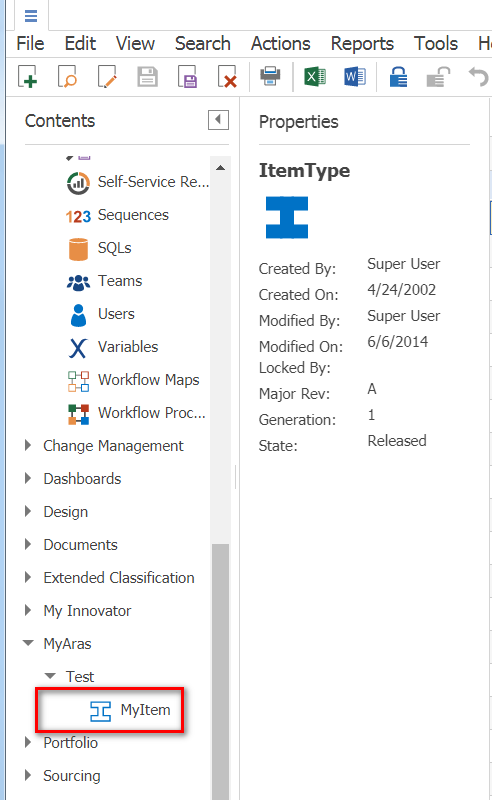

Singular Lable sets the name of the management item displayed in the directory. If it is not set, the default is Name.

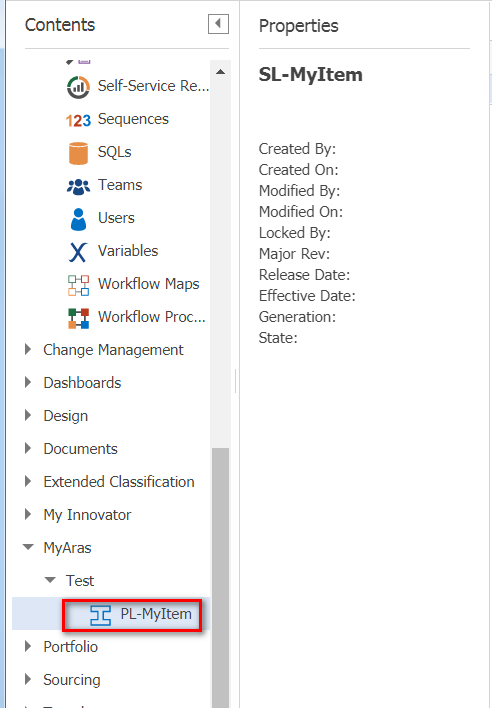

If Singular Lable is set, the effect is as follows:
Small Icon
Smaill Icon set small icon:

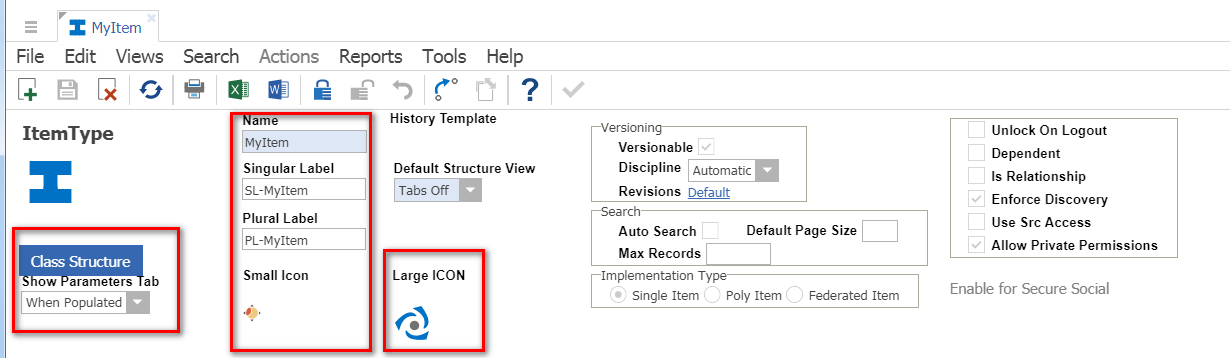

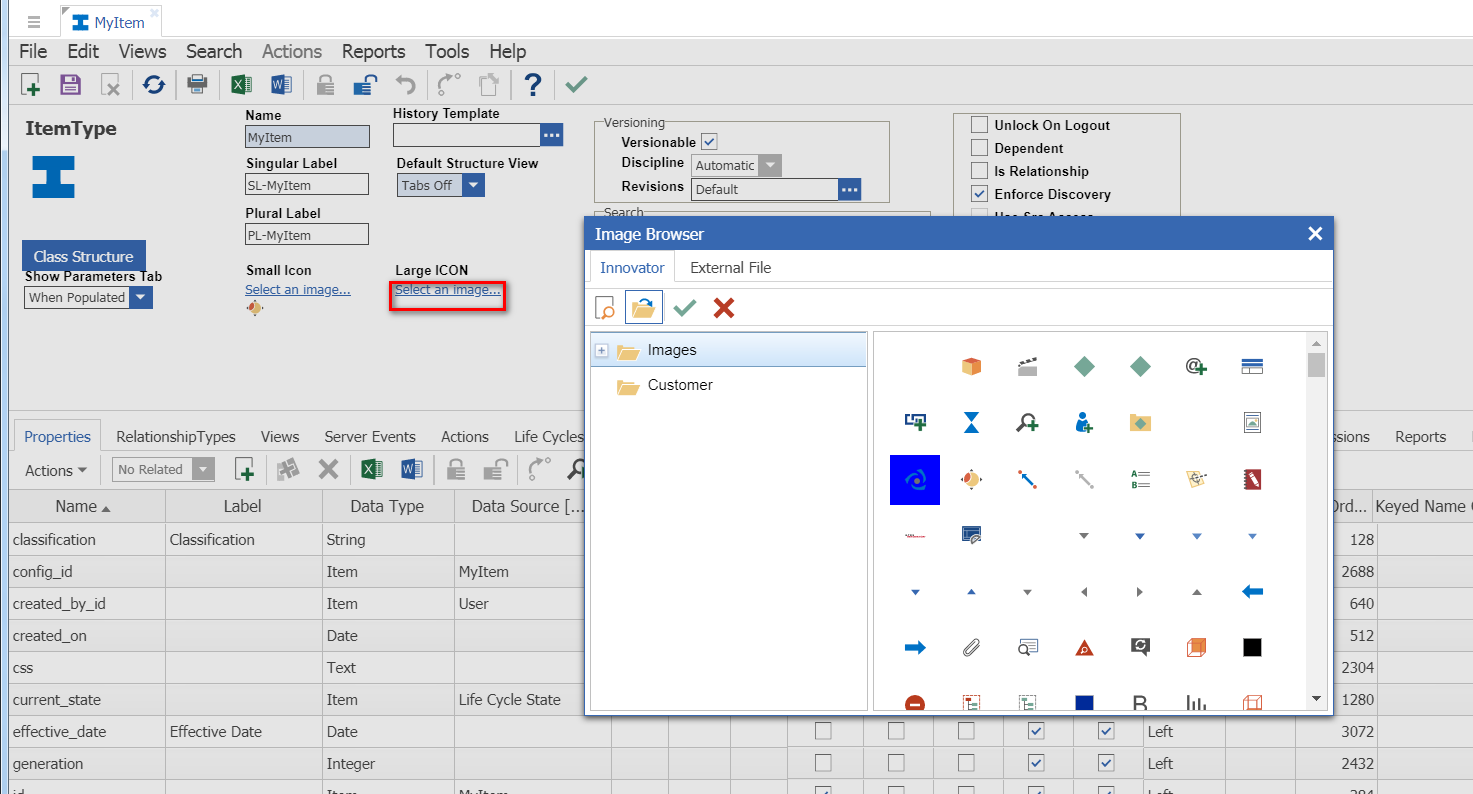

Large Icon

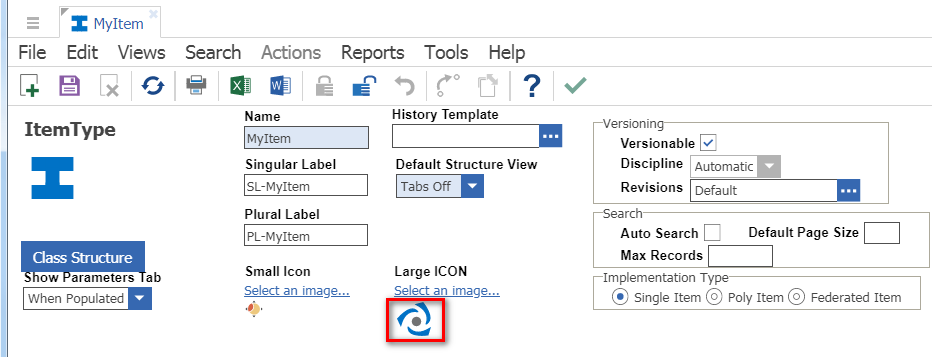

Large Icon set large icon:
Class Structure
Class Structure sets the hierarchical relationship of the management item Item. These hierarchical relationships can be applied to the properties of the management item Item, so that the properties have a hierarchical relationship, and the children inherit all the properties of the parent.
You can set the following hierarchical relationships:
Then you can add attributes in the attribute configuration area:

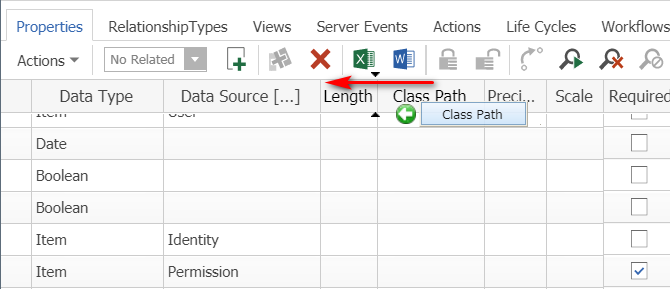

first click the Class Path attribute column, click the middle and hold the left mouse button, move it to the left area and release it to facilitate subsequent operation observation:
Add the "fruit" attribute and set the Class Path to Sub0:

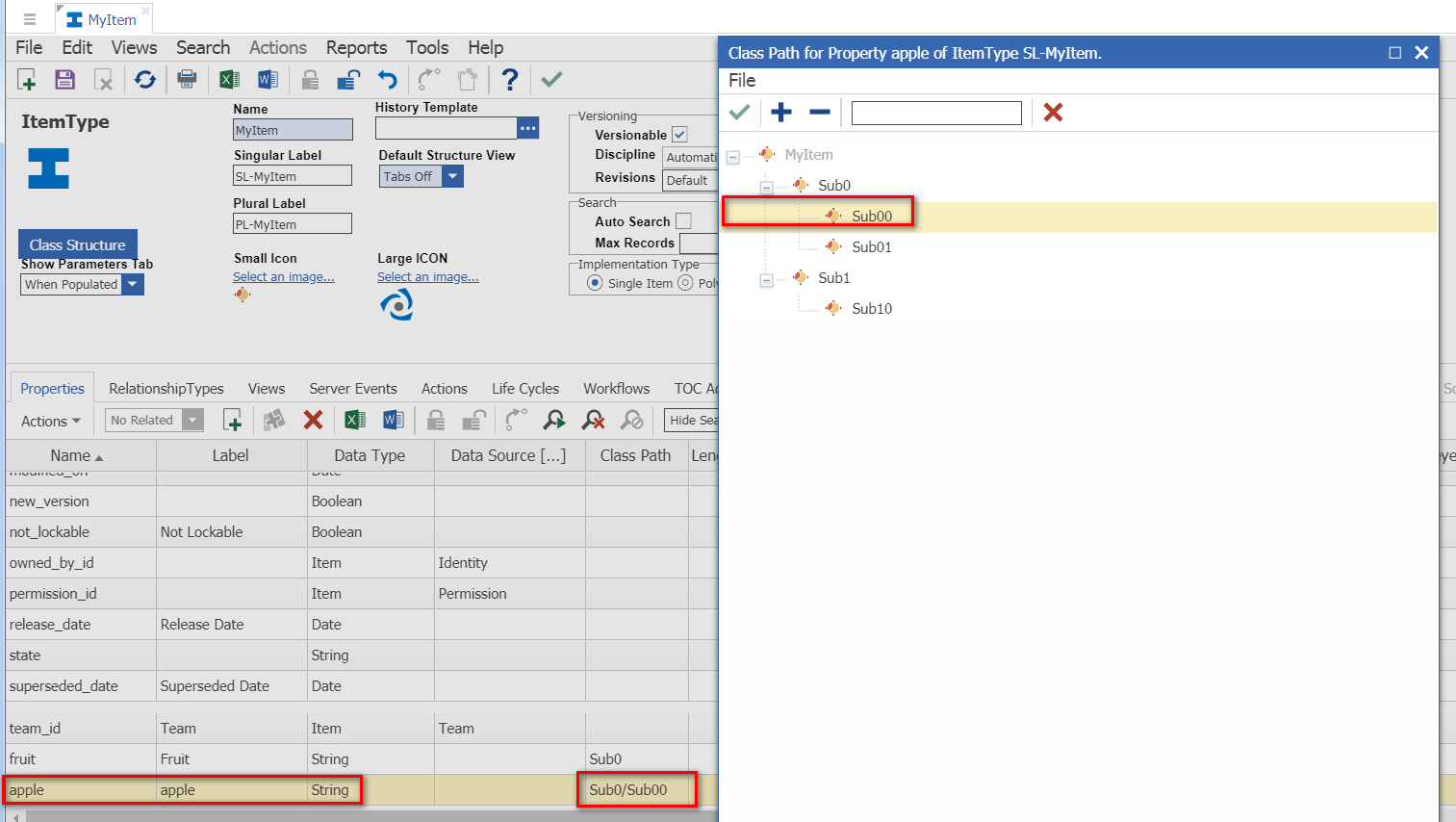

add the "apple" attribute and set the Class Path to Sub/Sub00:

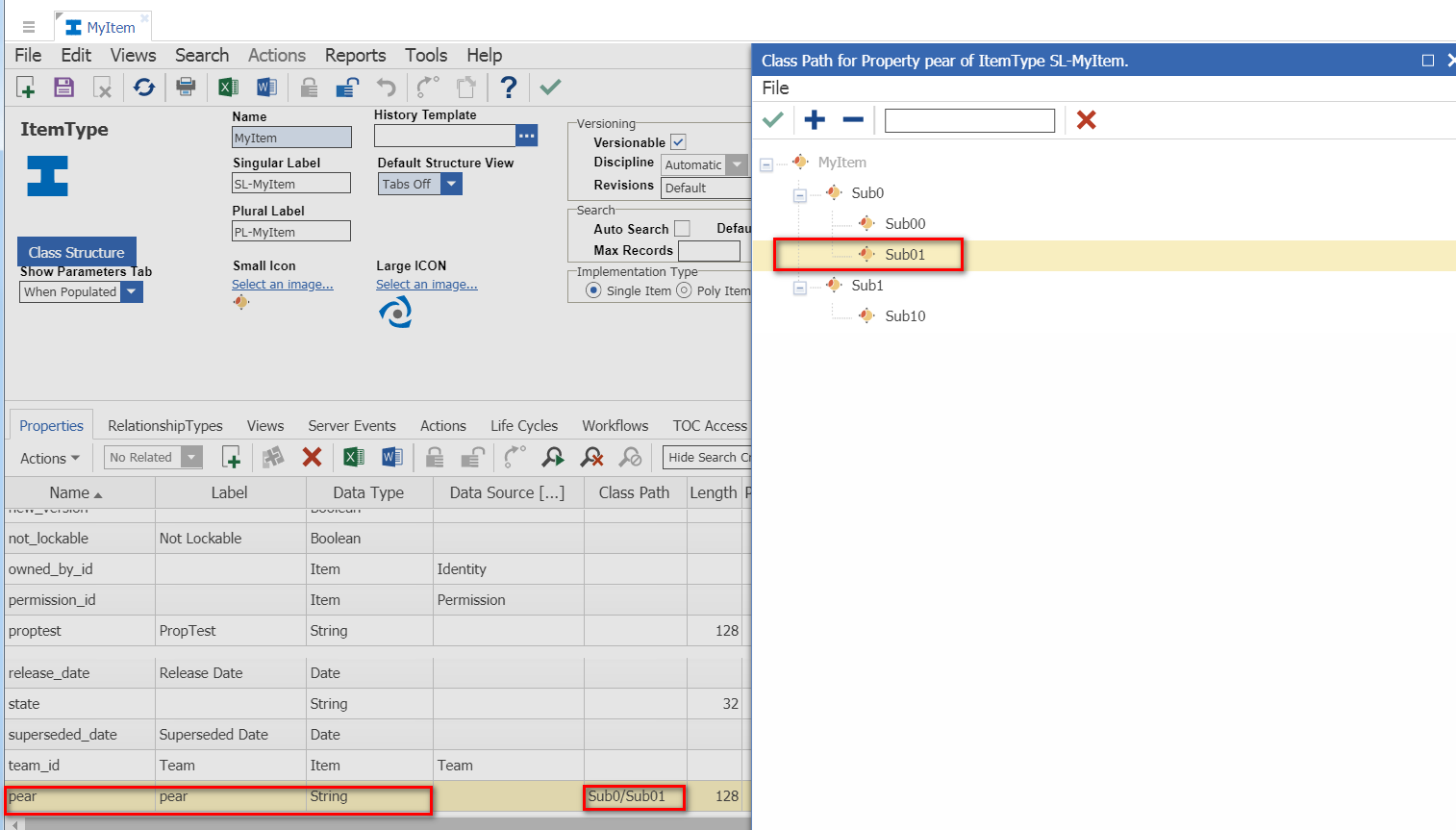

add the "pear" attribute and set the Class Path to Sub/Sub01:
these attributes are all String types, need Set the length in the Length property bar, simply enter a length limit to enter 128. Then save it once.

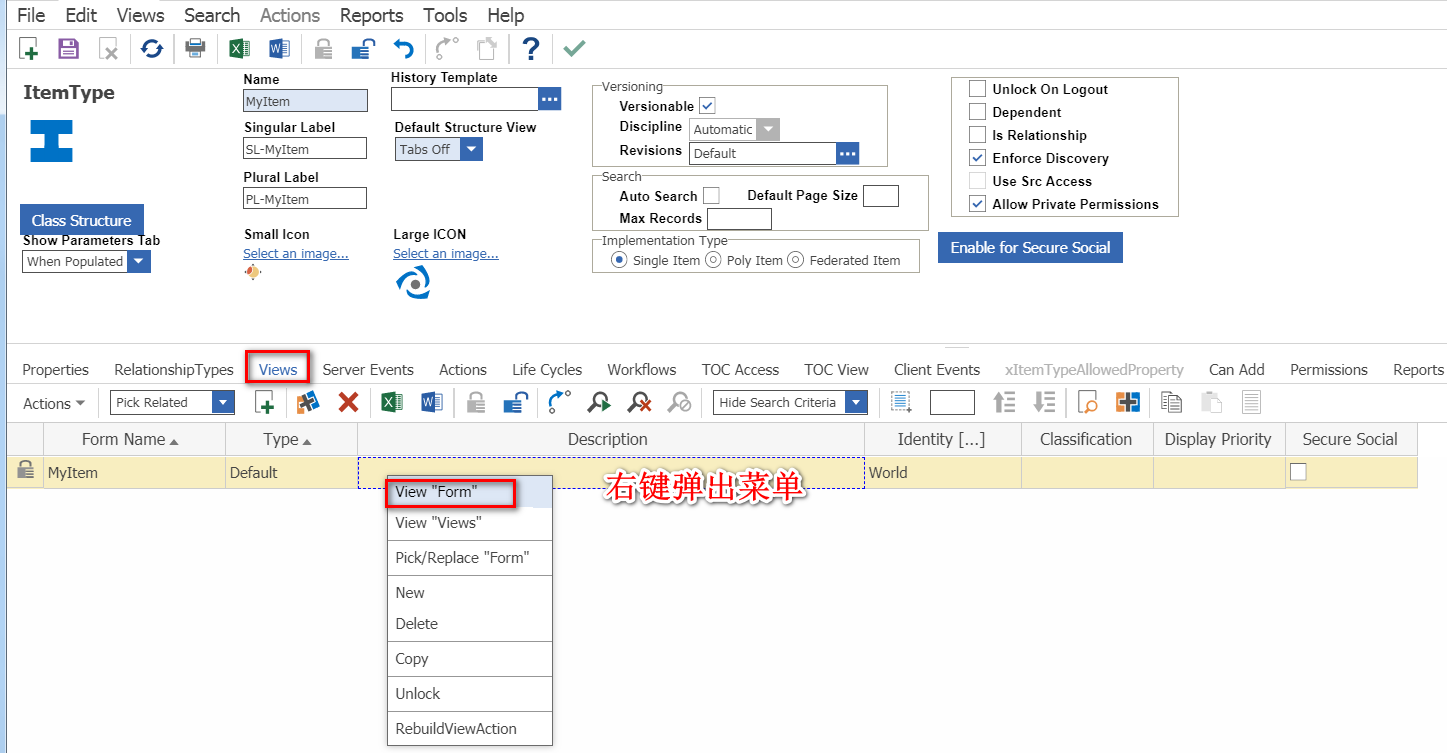

In the Views property area, enter the view operation mode: the

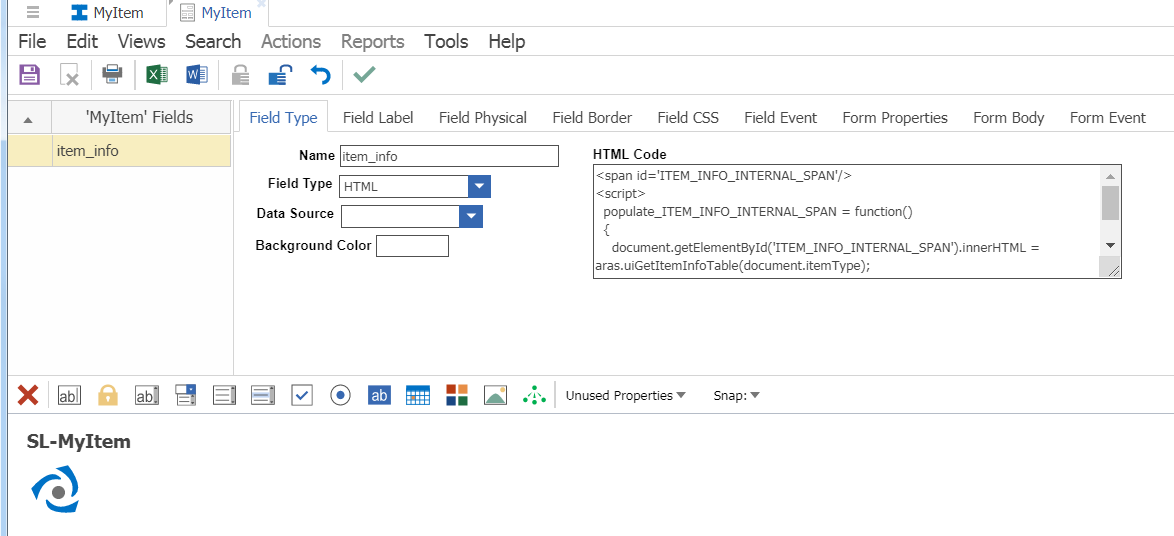

original view is similar to the following:

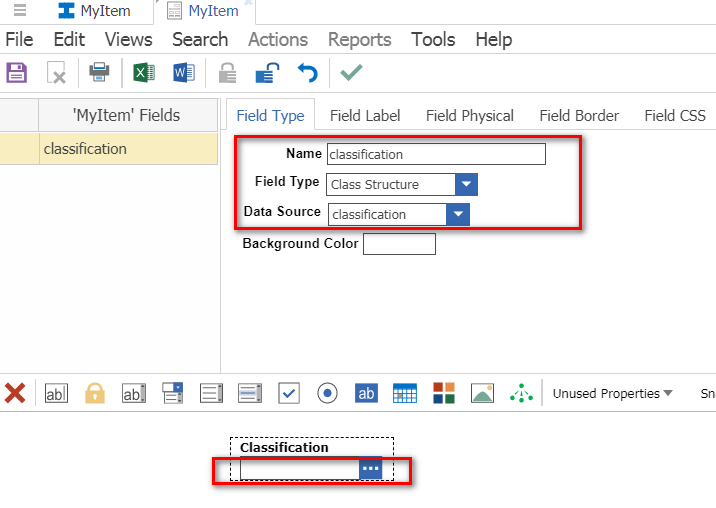

manual adjustment or add "classification" item from "Unused Properties":

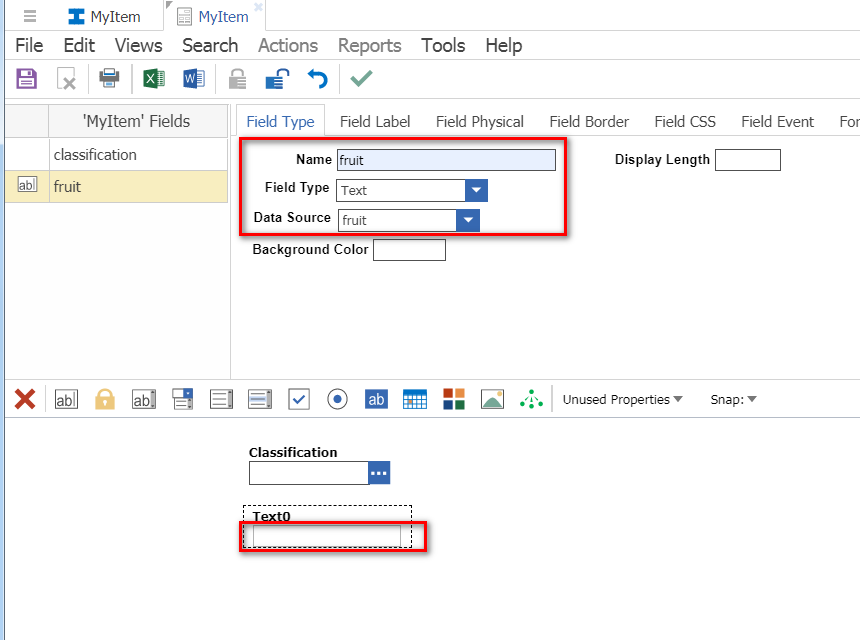

manually add "fruit" item: in the
same way, add "apple" and "pear" items , And then it looks like this:
save and exit, then in the main interface, remove the hidden attribute of "classification":
save and exit, and then find the management item in the corresponding directory and add a row of table records:
Select the classification directory of "classification" as Sub00, then set the values of the other three items, save and exit:
you can see that because this table record is set under the category of "classification" as Sub00, apple is in this category. Fruit is the parent directory of apple, so their values are set successfully, but pear is classified in Sub01 and cannot be set.
Similarly, add another record and set "classification" to the classification of Sub01. The effect is as follows:
Therefore, through the above method, class classification management is realized. After a certain classification directory is selected, only the classification of this classification directory Properties to operate.
Show Parameters Tab
Just keep "When populated", the specific impact is to be investigated.
