Big data combat Linux Ubuntu 20.04.1 HBase 2.2.6 deployment

1 Hadoop environment is successfully built

Click here for details

2 HBase installation (installed on the master node, scp issued to the slave node)

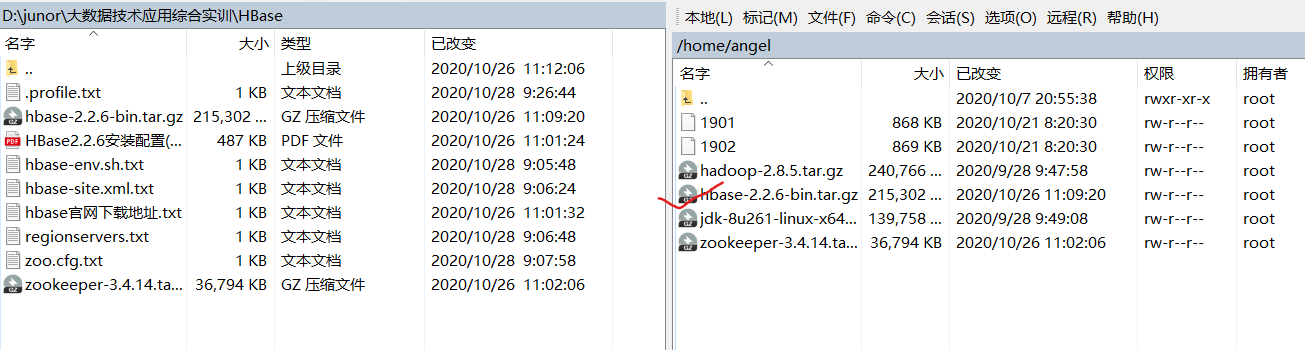

2.1 Upload hbase-2.2.6-bin.tar.gz

Insert picture description here

2.2 Unzip hbase-2.2.6-bin.tar.gz to the /app directory

Insert picture description here

2.3 Modify HBase configuration file

2.3.1 /app/hbase-2.2.6/conf/hbase-env.sh

Insert picture description here

Add at the end:
Insert picture description here

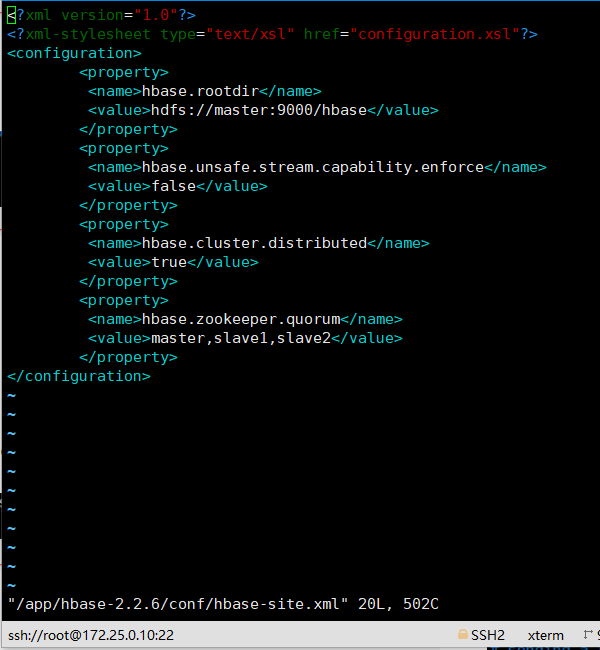

2.3.2 /app/hbase-2.2.1/conf/hbase-site.xml

The
content of vi /app/hbase-2.2.1/conf/hbase-site.xml is:

<?xml version="1.0"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<configuration>
<property>
<name>hbase.rootdir</name>
<value>hdfs://master:9000/hbase</value>
</property>
<property>
<name>hbase.unsafe.stream.capability.enforce</name>
<value>false</value>
</property>
<property>
<name>hbase.cluster.distributed</name>
<value>true</value>
</property>
<property>
<name>hbase.zookeeper.quorum</name>
<value>master,slave1,slave2</value>
</property>
</configuration>

Insert picture description here

2.3.3 /app/hbase-2.2.6/conf/regionservers

vi /app/hbase-2.2.6/conf/regionservers

Insert picture description here

2.3.4 /app/hbase-2.2.6/conf/backup-masters

vi /app/hbase-2.2.6/conf/backup-masters
slave1

2.4 Deliver to the node machine

scp -r /app/hbase-2.2.6 [email protected]:/app
scp -r /app/hbase-2.2.6 [email protected]:/app
Insert picture description here

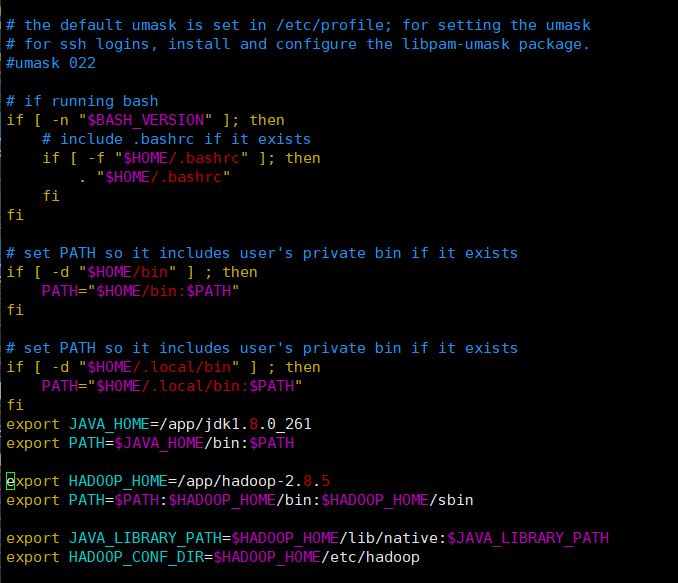

2.5 Edit HBase environment variables for all nodes

$ vi /home/angel/.profile

export JAVA_HOME=/app/jdk1.8.0_261
export PATH=$JAVA_HOME/bin:$PATH

export HADOOP_HOME=/app/hadoop-2.8.5
export PATH=$PATH:$HADOOP_HOME/bin:$HADOOP_HOME/sbin

export JAVA_LIBARAY_PATH=$HADOOP_HOME/lib/native:$JAVA_LIBRARY_PATH
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop

export HBASE_HOME=/app/hbase-2.2.6
export PATH=$PATH:$HBASE_HOME/bin

export ZOOKEEPER_HOME=/app/zookeeper-3.4.14
export PATH=$PATH:$ZOOKEEPER_HOME/bin

Insert picture description here

2.6 HBase environment variables take effect on all nodes

$ source /home/angel/.profile
Insert picture description here

2.7 Solution to the inability to find mycluster

cp /app/hadoop-2.8.5/etc/hadoop/core-site.xml /app/hbase-2.2.6/conf/
cp /app/hadoop-2.8.5/etc/hadoop/hdfs-site.xml / app/hbase-2.2.6/conf/
Insert picture description here
Note: All node machines are copied

3 Install ZooKeeper

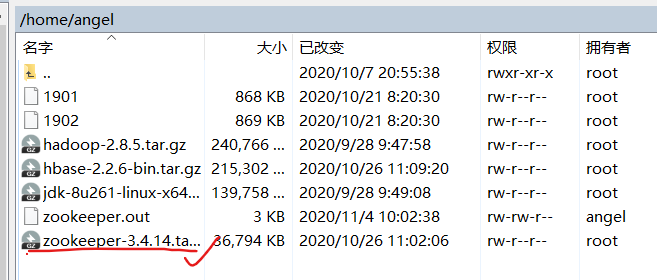

3.1 Upload zookeeper-3.4.14.tar.gz

Insert picture description here

3.2 Edit zoo.cfg

cp /app/zookeeper-3.4.14/conf/zoo_sample.cfg /app/zookeeper3.4.14/conf/zoo.cfg
Insert picture description here

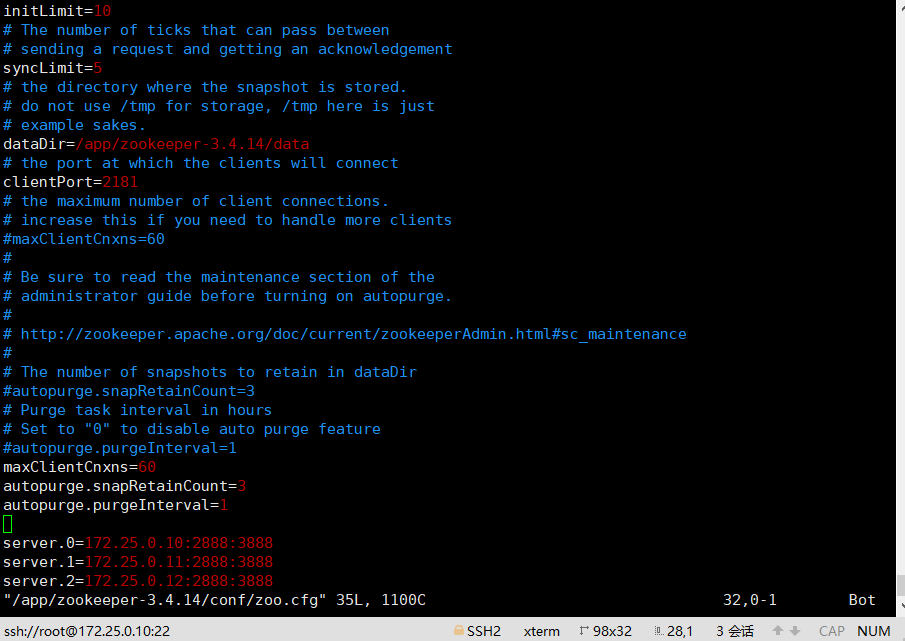

vi /app/zookeeper-3.4.14/conf/zoo.cfg
add at the end:

maxClientCnxns=60
autopurge.snapRetainCount=3
autopurge.purgeInterval=1

server.0=172.25.0.10:2888:3888
server.1=172.25.0.11:2888:3888
server.2=172.25.0.12:2888:3888
Insert picture description here

3.3 Create myid

mkdir /app/zookeeper-3.4.14/data
Insert picture description here
echo 0 > /app/zookeeper-3.4.14/data/myid
Insert picture description here

3.4 Copy Zookeeper to other nodes

scp -r /app/zookeeper-3.4.14/ [email protected]:/app
scp -r /app/zookeeper-3.4.14/ [email protected]:/app
Insert picture description here

3.5 Other nodes create myid separately

On slave node 2, slave2
echo 2> /app/zookeeper-3.4.14/data/myid
Insert picture description here
On slave node 1,
slave1 echo 1> /app/zookeeper-3.4.14/data/myid

3.6 Start ZooKeeper on all nodes

zkServer.sh start
Insert picture description here
Insert picture description here
Insert picture description here

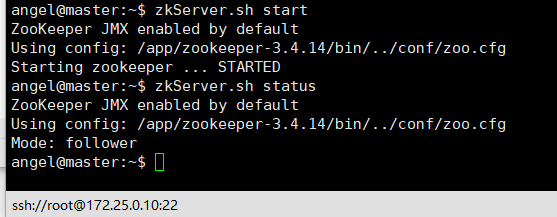

3.7 View zooKeeper status

Master node
zkServer.sh status
Insert picture description here
Mode:follower

Slave node 1 slave1
Insert picture description here
Mode:follower

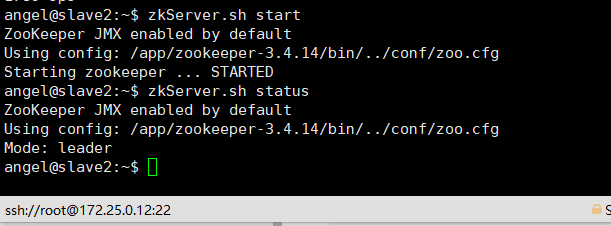

Slave node 2 slave2
Insert picture description here
Mode: leader

4 HBase startup test

4.1 Start Hadoop

$ start-dfs.sh
Insert picture description here

$ start-yarn.sh
Insert picture description here

$ mr-jobhistory-daemon.sh start historyserver
Insert picture description here

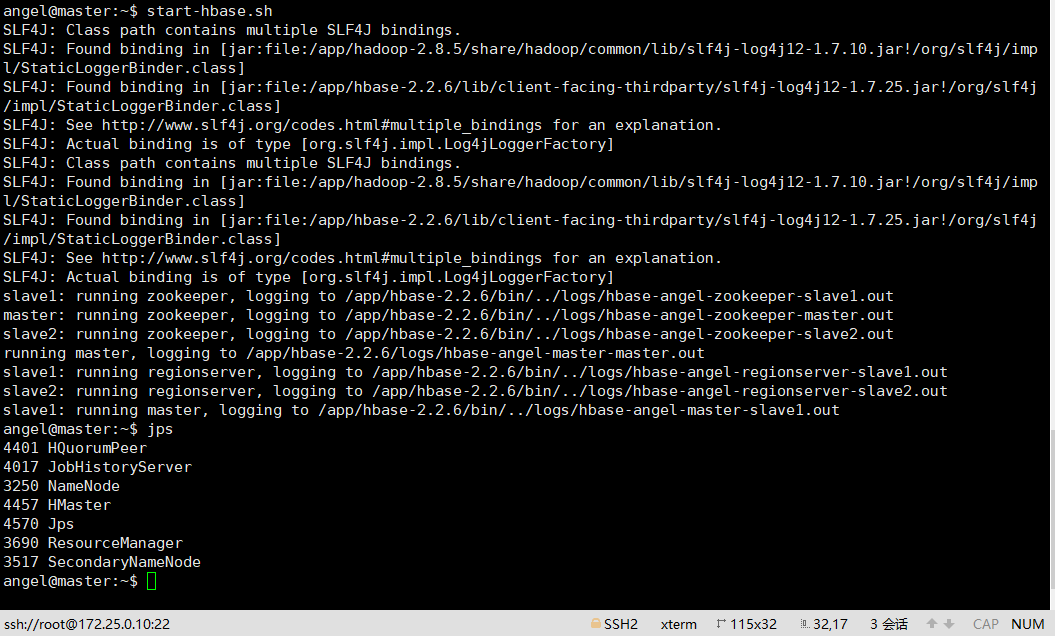

4.2 Start HBase

The master node starts HBase
$ start-hbase.sh
Insert picture description here
Note: It is not standard to start HBase first. It should be zooKeeper first, and then HBase. However, I found that I started zookeeper first, and then started HBase. The computer could not run, so I started HBase first. Then start zookeeper.

4.3 Start zooKeeper

Three node machines
$zkServer.sh start to start the
service
$zkServer.sh status to
view the service
$zkServer.sh stop to
stop the service

Master node master
Insert picture description here
slave
Insert picture description here
node slave1 slave node 2 slave2
Insert picture description here

4.4 View process

Master node master (6 processes)

Insert picture description here

Slave node 1, slave1, slave2 (4 processes)
Insert picture description here

If the process is missing
, start the regionserver on the slave1 node and slave2 node
$ hbase-daemon.sh start regionserver

Start master on the master node
$ hbase-daemon.sh start master

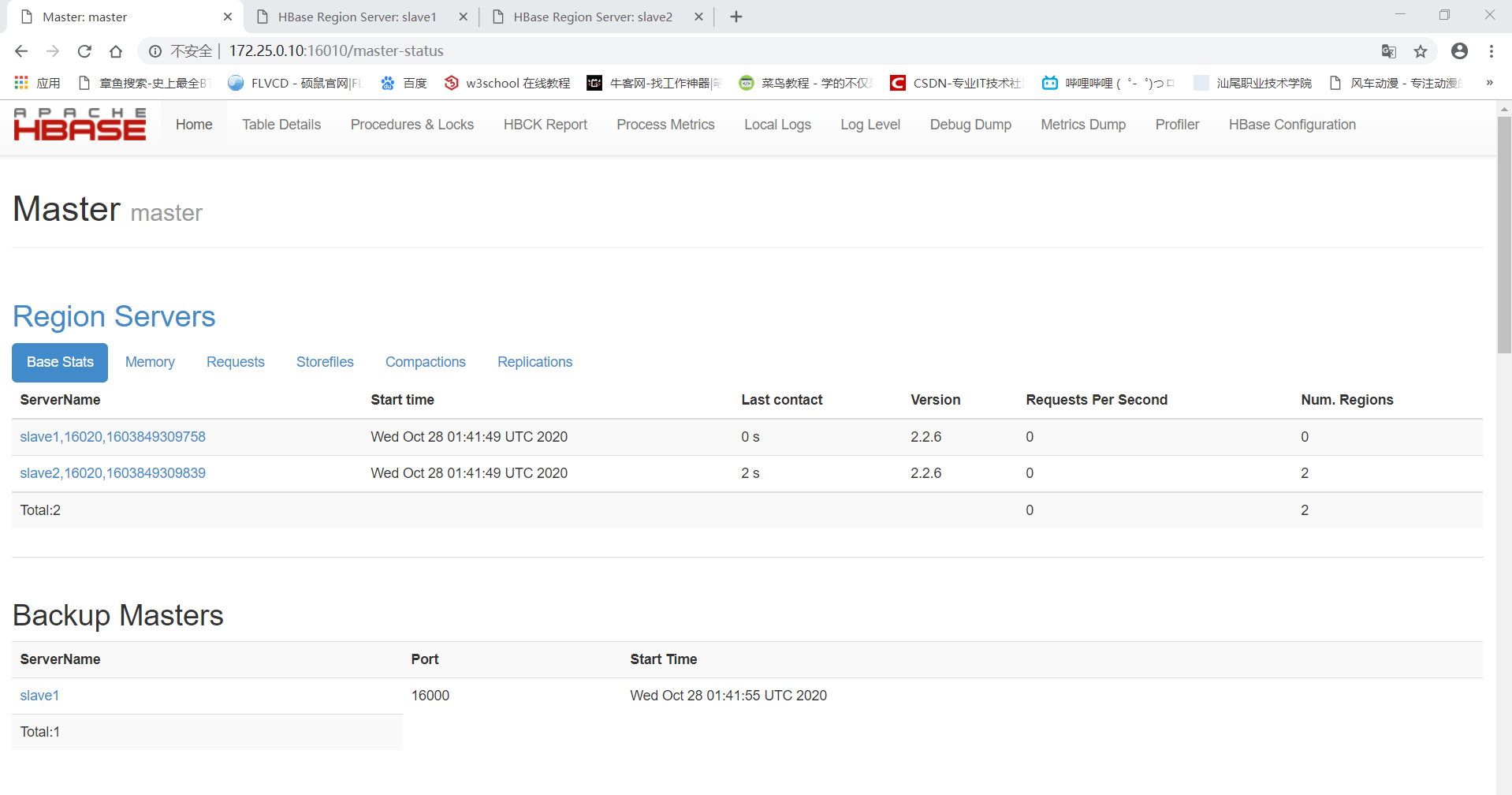

4.5 Web page test

http://master:16010/
Insert picture description here

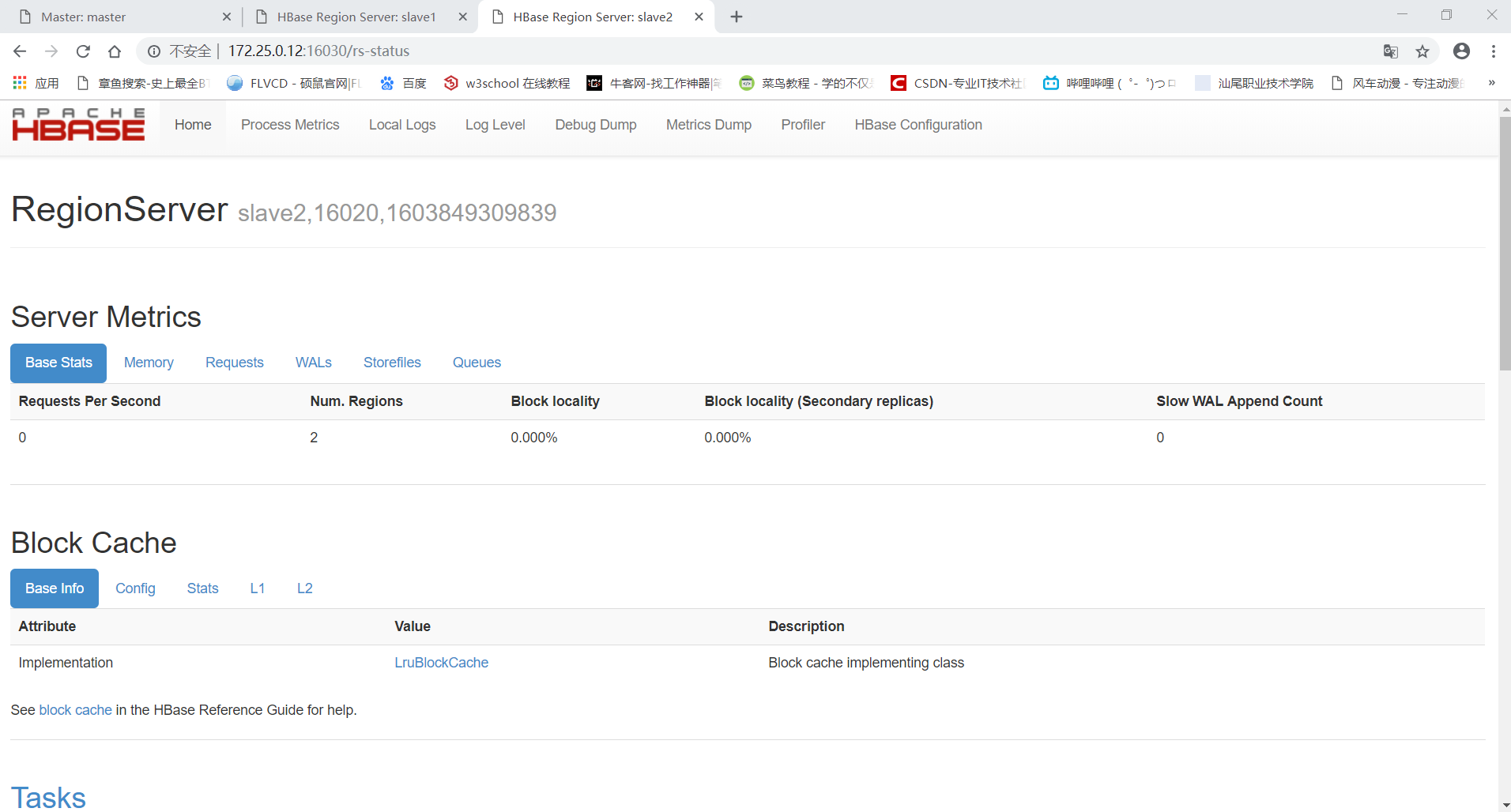

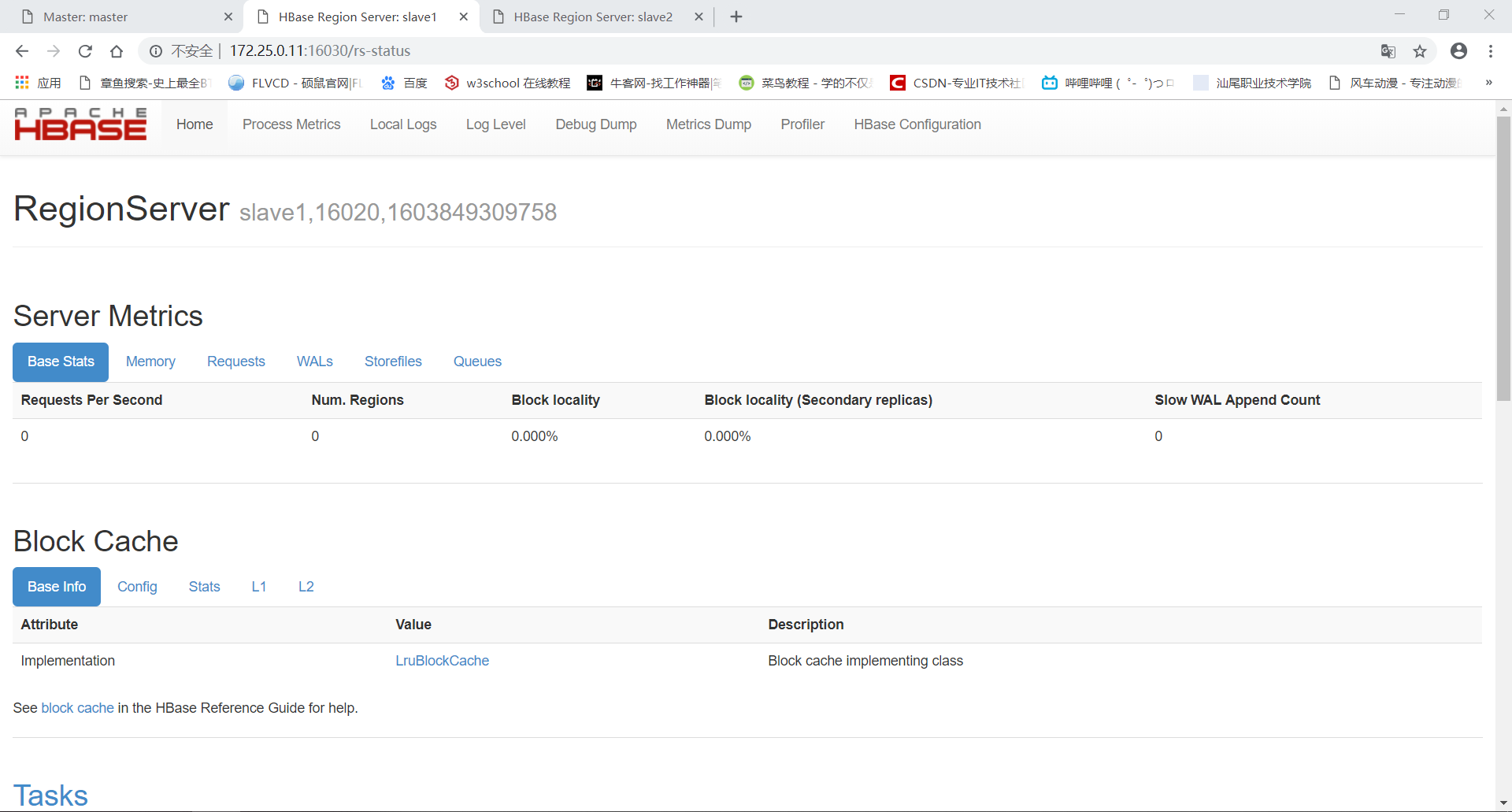

http:
Insert picture description here
//slave1:16030 / http://slave2:16030/ At
Insert picture description here
this point, HBase deployment is complete!
