Use pyBoard's experiments to discuss some of the MicroPython features



▌ 01 pyBoard system function

---

pyBoard provides pyb.micros() to return the time elapsed since the reset of the MCU, in us. Similar to millis(). Use elapsed_micros(start), elapsed_millis(start) to get the length of time elapsed. Using this function can be used for program control and measurement of function execution time.

1. Delay function

(1) Test time.sleep_us()

a. Measurement code

ddim = []
for i in range(100):
    start = pyb.micros()
    time.sleep_us(i)
    delayus = pyb.elapsed_micros(start)
    ddim.append(delayus)

b. Measurement results

From the measurement results, the delay generated by using time.sleep_us has a relatively constant constant of about 20us. The accuracy of the delay is still very reliable.

^{▲ delay_us测量曲线}

(2) Measuring time.sleep_ms()

a.Measure one hundred times time.delay_ms(1)

The following shows the value corresponding to 100 times of delay_ms(1) measurement. It can be seen that the actual delay_ms() is actually more advanced than 1ms, and there is an error and sudden change of about 30usd.

^{▲ 测量结果time.delay_ms(1)}

b. Measuring delay_ms(i)

Measure the increasing delay of delay_ms. It can be seen that the accuracy of the delay corresponding to the ms level is still very high.

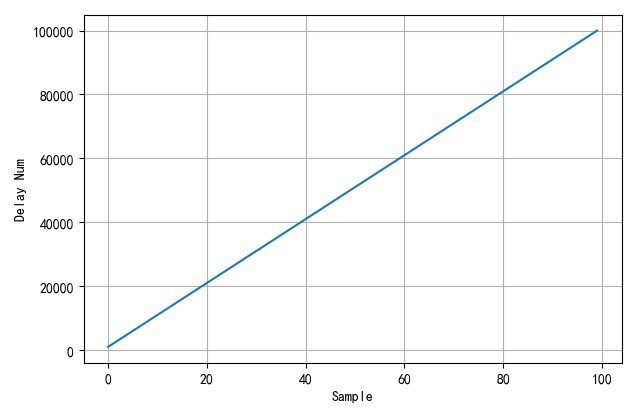

^{▲ 测量 time.delay_ms(i);i=1,..100}

(3) Measure pyb.delay

The function corresponding to pyb.delay is similar to the function of time.sleep_ms().

^{▲ pyb.delay()的延时测量}

2. Random number

Use pyb.rng() to generate random numbers using MCU hardware.

^{▲ 第一次运行所产生的随机数}

^{▲ 第二次运行所产生的随机数}

3. DAC; ADC

from pyb                    import ADC,DAC,LED,Pin
dac = DAC(Pin('X5'))
adc = ADC(Pin('X1'))
adcdim = []
for i in range(256):
    dac.write(i)
    val = adc.read()
    adcdim.append(val)
print(adcdim)

^{▲ 测量不同的DAC与ADC之间的关系}



▌ 02 MicroPython grammar

---

In homemade pyBoard the I2C experiment, application MicroPython given some new MicroPython syntax. The following is a summary.

1. const

Used in MicroPython to define constant variables, which can be used for compiler optimization. According to the test, we can see that const must be integer. Therefore, in the following statement, PI is wrong.

• micropython.const(expr)

from micropython            import const
PI = const(3.1415)                  # Wrong: constant must be an integer
A =  const(1)
print(type(PI))
print(type(A))

There will be an error corresponding to the constant amplitude. When A=2 in the following code, Exception will appear.

from micropython            import const
A =  const(1)
B = 3
A = 2
B = 4

2.framebuf

framebuf is used to give some memory buffers to the LCD display. See: framebuf — frame buffer manipulation — MicroPython 1.14 documentation .

Use frame.buffer to access the byte corresponding to framebuf.

3. Define tuples

The following code shows that the conditional amplitude process can be used in the process of defining tuples and lists.

b = 1
a = (0, 1 if b > 0 else 2,100)
print(a)

Execution result: (0, 1, 100)

4. Define the class

When defining a class, you can even run functions that will only exist in derived classes in the future in the base class. For example, in the following code, the self.showA() function is used in the base class , and this function is actually defined in its derived class classA. Compared with OO programming in C++, it needs to define virtual functions in the base class so that it can be overloaded by future derived classes.

class basetype():
    def __init__(self, value):
        self.value = value
    def show(self, ):
        print(self.value)
        self.showA()
    def getvalue(self, ):
        return self.value

class classA(basetype):
    def __init__(self, v):
        super().__init__(v)
    def show(self, b):
        super().show()
        print(b)
    def showA(self, ):
        print('Hello:%d'%super().getvalue())

a = classA(3)
a.show(4)

The result of running the above code:

3
Hello:3
4



▌Appendix

---
