Raspberry Pi Mount Hard Drive/U Disk and Partition Tutorial
1. Hardware preparation
Raspberry Pi, hard disk/U disk, choose mobile hard disk with power supply.
Fdisk is a tool for managing disks under linux, which can add, delete, and convert disks.
2. Start of the tutorial
1. Insert your hard drive/U disk into the Raspberry Pi
2. The second step is to check whether the U disk has been recognized, and where is the recognized U disk
sudo fdisk -l
3. Partition the hard disk
sudo fdisk /dev/sda
Command introduction
p查看现有分区
d删除分区
n创建分区
Enter P to view existing partitions
Delete the existing disk enter d
Divide a new area input n
Select whether the new partition is a primary partition or an extended partition, write p for the primary partition and write e for the extended partition
Choose the starting position of the partition
The default starting position is 2048MB
Press enter to confirm,
Because we are here only to store files on the Raspberry Pi to make up for the insufficient memory of the Raspberry Pi, only one partition is needed, so the default end position is the end of the disk.
If you want to divide a lot of areas, you can add the size of the partition you want to the end position, and then enter n to divide the second area.

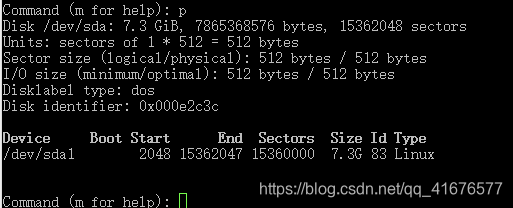

Then enter p to view our partition
You can see that the id of our partition is 83
83 represents the linux partition
Linux partition is not recognized on windows
If your hard drive wants to be used on Raspberry Pi and your win computer, you need to change the partition type
Type t
Enter b

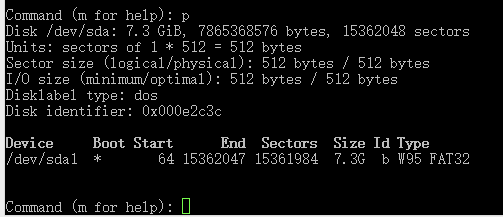

It changed to win95 fat32 type, fat32 can be recognized by windows and linux
Enter w to save and exit
4. Format the hard drive
sudo mkfs.ext4 /dev/sda1
5. Mount the hard disk to the system
Although the system has recognized the disk partition, it has not been added to the system yet, so we have to mount the disk partition to the system
The mounted disk is generally in the /mnt or /media directory
sudo mkdir /mnt/disk
sudo mount -o uid=pi,gid=pi /dev/sda1 /mnt/disk
Now the disk has been mounted in the /mnt/disk directory, but the mounting is only temporary, and it will be remounted after restart, so we have to modify /etc/fstab to solve this problem
sudo nano /etc/fstab
Add the following piece of code at the end
/dev/sda1 /mnt/disk auto defaults,noexec,umask=0000 0 0
Ctrl x save and exit
successfully
. Use the following commands to view the mounting situation.
cd /mnt/disk
ls
