[Propósito experimental]
1. Familiarizarse con el proceso básico de programación de sockets originales
2. Comprender el mecanismo de implementación del programa ping
3. Comprender la función y el formato de mensaje del protocolo ICMP.
4. Complete la configuración del enchufe original.
[Contenido experimental]
1. Construya la estructura del encabezado del protocolo ICMP
2. Construya la estructura de la solicitud de eco ICMP.
3. Construir una estructura de respuesta retrorreflectante ICMP.
4. Construya la estructura del encabezado IP.
5. Cree un socket sin formato.
6. Obtenga la IP de destino de acuerdo con la dirección especificada por el usuario.
7. Envío cíclico de solicitudes ICMP a la dirección de destino.
8. Espere la respuesta de la otra parte y calcule el intervalo de tiempo.
Código fuente:
ping.h
#pragma pack(1)
#define ICMP_ECHOREPLY 0
#define ICMP_ECHOREQ 8
// IP Header -- RFC 791
typedef struct tagIPHDR
{
u_char VIHL; // Version and IHL
u_char TOS; // Type Of Service
short TotLen; // Total Length
short ID; // Identification
short FlagOff; // Flags and Fragment Offset
u_char TTL; // Time To Live
u_char Protocol; // Protocol
u_short Checksum; // Checksum
struct in_addr iaSrc; // Internet Address - Source
struct in_addr iaDst; // Internet Address - Destination
}IPHDR, * PIPHDR;
// ICMP Header - RFC 792
typedef struct tagICMPHDR
{
u_char Type; // Type
u_char Code; // Code
u_short Checksum; // Checksum
u_short ID; // Identification
u_short Seq; // Sequence
char Data; // Data
}ICMPHDR, * PICMPHDR;
#define REQ_DATASIZE 32 // Echo Request Data size
// ICMP Echo Request
typedef struct tagECHOREQUEST
{
ICMPHDR icmpHdr;
DWORD dwTime;
char cData[REQ_DATASIZE];
}ECHOREQUEST, * PECHOREQUEST;
// ICMP Echo Reply
typedef struct tagECHOREPLY
{
IPHDR ipHdr;
ECHOREQUEST echoRequest;
char cFiller[256];
}ECHOREPLY, * PECHOREPLY;
#pragma pack()
ping.c
//
// PING.C -- Ping program using ICMP and RAW Sockets
//
#define _WINSOCK_DEPRECATED_NO_WARNINGS
#include <stdio.h>
#include <stdlib.h>
//#include <winsock.h>
#include <WinSock2.h>
#pragma comment (lib,"Ws2_32.lib")
#include "ping.h"
// Internal Functions
void Ping(LPCSTR pstrHost);
void ReportError(LPCSTR pstrFrom);
int WaitForEchoReply(SOCKET s);
u_short in_cksum(u_short* addr, int len);
// ICMP Echo Request/Reply functions
int SendEchoRequest(SOCKET, LPSOCKADDR_IN);
DWORD RecvEchoReply(SOCKET, LPSOCKADDR_IN, u_char*);
// main()
void main(int argc, char** argv)
{
WSADATA wsaData;
WORD wVersionRequested = MAKEWORD(1, 1);
int nRet;
// Check arguments
if (argc != 2)
{
fprintf(stderr, "\nUsage: ping hostname\n");
return;
}
// Init WinSock
nRet = WSAStartup(wVersionRequested, &wsaData);
if (nRet)
{
fprintf(stderr, "\nError initializing WinSock\n");
return;
}
// Check version
if (wsaData.wVersion != wVersionRequested)
{
fprintf(stderr, "\nWinSock version not supported\n");
return;
}
// Go do the ping
Ping(argv[1]);
// Free WinSock
WSACleanup();
}
// Ping()
// Calls SendEchoRequest() and
// RecvEchoReply() and prints results
void Ping(LPCSTR pstrHost)
{
SOCKET rawSocket;
LPHOSTENT lpHost;
struct sockaddr_in saDest;
struct sockaddr_in saSrc;
DWORD dwTimeSent;
DWORD dwElapsed;
u_char cTTL;
int nLoop;
int nRet;
// Create a Raw socket
rawSocket = socket(AF_INET, SOCK_RAW, IPPROTO_ICMP);
if (rawSocket == SOCKET_ERROR)
{
ReportError("socket()");
return;
}
// Lookup host
lpHost = gethostbyname(pstrHost);
if (lpHost == NULL)
{
fprintf(stderr, "\nHost not found: %s\n", pstrHost);
return;
}
// Setup destination socket address
saDest.sin_addr.s_addr = *((u_long FAR*) (lpHost->h_addr));
saDest.sin_family = AF_INET;
saDest.sin_port = 0;
// Tell the user what we're doing
printf("\nPinging %s [%s] with %d bytes of data:\n",
pstrHost,
inet_ntoa(saDest.sin_addr),
REQ_DATASIZE);
// Ping multiple times
for (nLoop = 0; nLoop < 4; nLoop++)
{
// Send ICMP echo request
SendEchoRequest(rawSocket, &saDest);
// Use select() to wait for data to be received
nRet = WaitForEchoReply(rawSocket);
if (nRet == SOCKET_ERROR)
{
ReportError("select()");
break;
}
if (!nRet)
{
printf("\nTimeOut");
break;
}
// Receive reply
dwTimeSent = RecvEchoReply(rawSocket, &saSrc, &cTTL);
// Calculate elapsed time
dwElapsed = GetTickCount() - dwTimeSent;
printf("\nReply from: %s: bytes=%d time=%ldms TTL=%d",
inet_ntoa(saSrc.sin_addr),
REQ_DATASIZE,
dwElapsed,
cTTL);
}
printf("\n");
nRet = closesocket(rawSocket);
if (nRet == SOCKET_ERROR)
ReportError("closesocket()");
}
// SendEchoRequest()
// Fill in echo request header
// and send to destination
int SendEchoRequest(SOCKET s, LPSOCKADDR_IN lpstToAddr)
{
static ECHOREQUEST echoReq;
static nId = 1;
static nSeq = 1;
int nRet;
// Fill in echo request
echoReq.icmpHdr.Type = ICMP_ECHOREQ;
echoReq.icmpHdr.Code = 0;
echoReq.icmpHdr.Checksum = 0;
echoReq.icmpHdr.ID = nId++;
echoReq.icmpHdr.Seq = nSeq++;
// Fill in some data to send
for (nRet = 0; nRet < REQ_DATASIZE; nRet++)
echoReq.cData[nRet] = ' ' + nRet;
// Save tick count when sent
echoReq.dwTime = GetTickCount();
// Put data in packet and compute checksum
echoReq.icmpHdr.Checksum = in_cksum((u_short*)& echoReq, sizeof(ECHOREQUEST));
// Send the echo request
nRet = sendto(s, /* socket */
(LPSTR)& echoReq, /* buffer */
sizeof(ECHOREQUEST),
0, /* flags */
(LPSOCKADDR)lpstToAddr, /* destination */
sizeof(SOCKADDR_IN)); /* address length */
if (nRet == SOCKET_ERROR)
ReportError("sendto()");
return (nRet);
}
// RecvEchoReply()
// Receive incoming data
// and parse out fields
DWORD RecvEchoReply(SOCKET s, LPSOCKADDR_IN lpsaFrom, u_char* pTTL)
{
ECHOREPLY echoReply;
int nRet;
int nAddrLen = sizeof(struct sockaddr_in);
// Receive the echo reply
nRet = recvfrom(s, // socket
(LPSTR)& echoReply, // buffer
sizeof(ECHOREPLY), // size of buffer
0, // flags
(LPSOCKADDR)lpsaFrom, // From address
&nAddrLen); // pointer to address len
// Check return value
if (nRet == SOCKET_ERROR)
ReportError("recvfrom()");
// return time sent and IP TTL
*pTTL = echoReply.ipHdr.TTL;
return(echoReply.echoRequest.dwTime);
}
// What happened?
void ReportError(LPCSTR pWhere)
{
fprintf(stderr, "\n%s error: %d\n",
WSAGetLastError());
}
// WaitForEchoReply()
// Use select() to determine when
// data is waiting to be read
int WaitForEchoReply(SOCKET s)
{
struct timeval Timeout;
fd_set readfds;
readfds.fd_count = 1;
readfds.fd_array[0] = s;
Timeout.tv_sec = 5;
Timeout.tv_usec = 0;
return(select(1, &readfds, NULL, NULL, &Timeout));
}
//
// Mike Muuss' in_cksum() function
// and his comments from the original
// ping program
//
// * Author -
// * Mike Muuss
// * U. S. Army Ballistic Research Laboratory
// * December, 1983
/*
* I N _ C K S U M
*
* Checksum routine for Internet Protocol family headers (C Version)
*
*/
u_short in_cksum(u_short* addr, int len)
{
register int nleft = len;
register u_short* w = addr;
register u_short answer;
register int sum = 0;
/*
* Our algorithm is simple, using a 32 bit accumulator (sum),
* we add sequential 16 bit words to it, and at the end, fold
* back all the carry bits from the top 16 bits into the lower
* 16 bits.
*/
while (nleft > 1) {
sum += *w++;
nleft -= 2;
}
/* mop up an odd byte, if necessary */
if (nleft == 1) {
u_short u = 0;
*(u_char*)(&u) = *(u_char*)w;
sum += u;
}
/*
* add back carry outs from top 16 bits to low 16 bits
*/
sum = (sum >> 16) + (sum & 0xffff); /* add hi 16 to low 16 */
sum += (sum >> 16); /* add carry */
answer = ~sum; /* truncate to 16 bits */
return (answer);
}

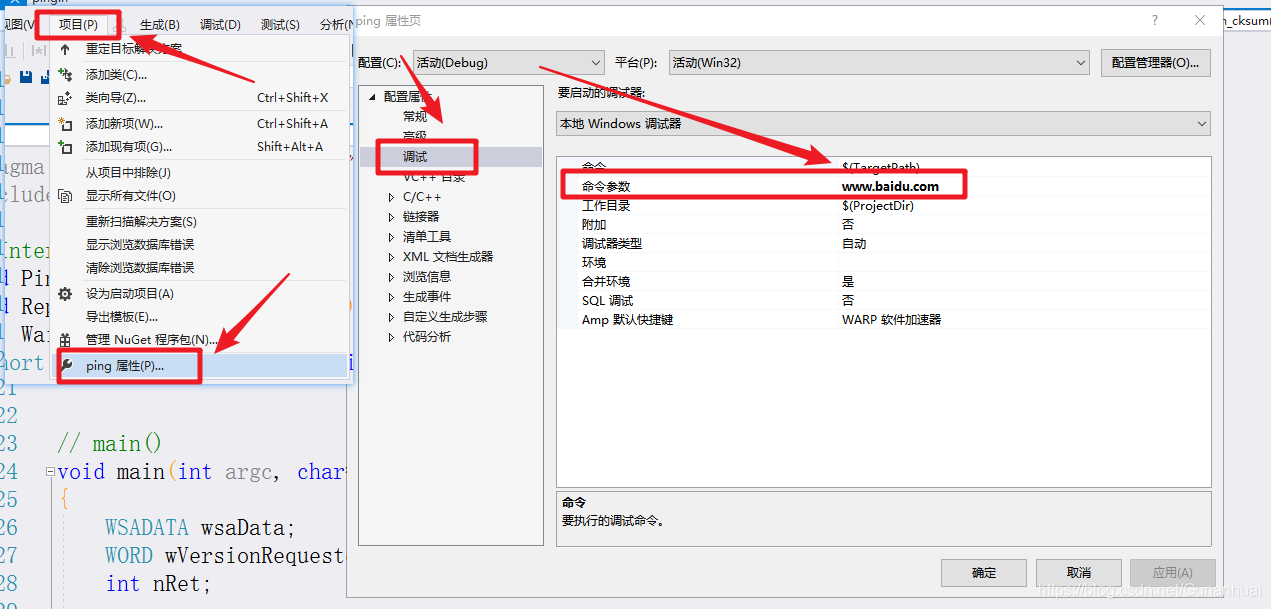

Cambiar la información de depuración de ping
Efecto de la operación:
Captura de pantalla del efecto de captura de paquetes icmp:
