LVGL(轻巧而多功能的图形库)是一个免费的开放源代码图形库，它提供创建具有易于使用的图形元素，精美的视觉效果和低内存占用的嵌入式GUI所需的一切。本游戏的视觉效果基于lvgl实现，lvgl中文教程(中文手册)：http://lvgl.100ask.net
游戏说明
《2048》 是一款比较流行的数字游戏，最早于2014年3月20日发行。原版2048首先在GitHub上发布，原作者是Gabriele Cirulli，后被移植到各个平台。
这由20岁的Gabriele Cirulli开发的一款数字游戏。初衷就是觉得好玩，在将其开源版本放到GitHub上后，意外走红。
这款游戏的玩法很简单，每次可以选择上下左右滑动，每滑动一次，所有的数字方块都会往滑动的方向靠拢，系统也会在空白的地方乱数出现一个数字方块，相同数字的方块在靠拢、相撞时会相加。不断的叠加最终拼凑出2048这个数字就算成功。

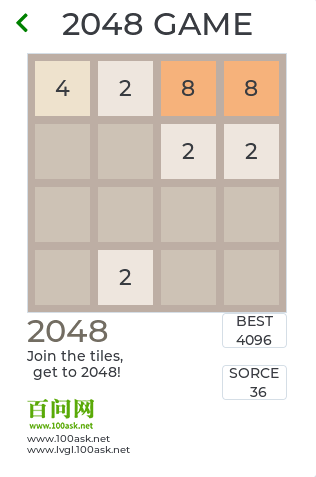

实验成果
每次可以选择上下左右滑动，每滑动一次，所有的数字方块都会往滑动的方向靠拢，系统也会在空白的地方乱数出现一个数字方块，相同数字的方块在靠拢、相撞时会相加。不断的叠加最终拼凑出2048这个数字就算成功。
游戏代码
实现代码比较简单，我使用一个结构体管理所有的数据结构，lvgl提供的事件管理器使我能很好的实现触摸事件处理部分；游戏界面一共有16个方格，我使用一个二维数组进行管理。详细代码如下所示，关于代码的详细讲解请查看我的下一篇文章介绍。
/*********************
* DEFINES
*********************/
/* 大小 */
#define SIZE 4
/* 布局 */
#define LV_100ASK_2048_GAME_BOX_W (260)
#define LV_100ASK_2048_GAME_BOX_H (260)
#define LV_100ASK_2048_NUMBER_BOX_W (55)
#define LV_100ASK_2048_NUMBER_BOX_H (55)
#define LV_100ASK_2048_CURRENT_SCORE_W (65)
#define LV_100ASK_2048_CURRENT_SCORE_H (35)
#define LV_100ASK_2048_BEST_SCORE_W (65)
#define LV_100ASK_2048_BEST_SCORE_H (35)
/* 颜色 */
#define LV_100ASK_2048_GAME_BG_COLOR lv_color_hex(0xe8e5db) //LV_COLOR_MAKE(0xCD, 0xC1, 0xB4)
#define LV_100ASK_2048_GAME_BOX_COLOR lv_color_hex(0xBBADA0)
#define LV_100ASK_2048_NUMBER_BOX_COLOR lv_color_hex(0xCDC1B4)
#define LV_100ASK_2048_NUMBER_2_COLOR lv_color_hex(0xeee4da)
#define LV_100ASK_2048_NUMBER_4_COLOR lv_color_hex(0xeee1c9)
#define LV_100ASK_2048_NUMBER_8_COLOR lv_color_hex(0xf3b27a)
#define LV_100ASK_2048_NUMBER_16_COLOR lv_color_hex(0xf69664)
#define LV_100ASK_2048_NUMBER_32_COLOR lv_color_hex(0xf77c5f)
#define LV_100ASK_2048_NUMBER_64_COLOR lv_color_hex(0xf75f3b)
#define LV_100ASK_2048_NUMBER_128_COLOR lv_color_hex(0xedd073)
#define LV_100ASK_2048_NUMBER_256_COLOR lv_color_hex(0xEDCC61)
#define LV_100ASK_2048_NUMBER_512_COLOR lv_color_hex(0xEDCC61)
#define LV_100ASK_2048_NUMBER_1024_COLOR lv_color_hex(0xEDCC61)
#define LV_100ASK_2048_NUMBER_2048_COLOR lv_color_hex(0xEDC22E)
/**********************
* TYPEDEFS
**********************/
typedef struct _lv_100ask_2048_game {
lv_obj_t * bg; /* 背景 */
lv_obj_t * canvas_stage; /* 游戏舞台 */
lv_obj_t * label_best_score; /* 展示最高分数 */
lv_obj_t * label_current_score; /* 展示当前分数 */
lv_task_t * task_handle; /* 任务句柄 */
uint8_t game_board[SIZE][SIZE]; /* 2048矩阵 */
uint32_t current_score_value; /* 当前分数 */
bool play_game; /* 游戏状态 */
} T_lv_100ask_2048_game, *PT_lv_100ask_2048_game;
/**********************
* STATIC VARIABLES
**********************/
static PT_lv_100ask_2048_game g_pt_lv_100ask_2048_game; // 数据结构体
/**********************
* STATIC PROTOTYPES
**********************/
static void lv_100ask_game_2048_init(void);
static lv_obj_t * add_title(lv_obj_t * obj_space, const char * txt);
static void initBoard(lv_obj_t * parent, uint8_t board[SIZE][SIZE]);
static void initBoardNumber(uint8_t board[SIZE][SIZE]);
static void drawBoard(lv_obj_t * parent, char * number, \
uint16_t canvas_w, uint16_t canvas_h, \
uint16_t rect_dsc_x, uint16_t rect_dsc_y, \
lv_color_t rgb32);
static void addRandom(uint8_t board[SIZE][SIZE]);
static lv_color_t Num2Color(uint32_t num);
static uint8_t findTarget(uint8_t array[SIZE],uint8_t x,uint8_t stop);
static bool slideArray(uint8_t array[SIZE]);
static void rotateBoard(uint8_t board[SIZE][SIZE]);
static bool moveUp(uint8_t board[SIZE][SIZE]);
static bool moveLeft(uint8_t board[SIZE][SIZE]);
static bool moveDown(uint8_t board[SIZE][SIZE]);
static bool moveRight(uint8_t board[SIZE][SIZE]);
static bool findPairDown(uint8_t board[SIZE][SIZE]);
static uint8_t countEmpty(uint8_t board[SIZE][SIZE]);
static bool gameEnded(uint8_t board[SIZE][SIZE]);
static char* Int2String(int num, char *str);
// 事件
static void event_handler_play_2048(lv_obj_t * obj, lv_event_t event);
static void event_handler_2048_game_up(lv_obj_t * obj, lv_event_t event);
static void event_handler_2048_game_down(lv_obj_t * obj, lv_event_t event);
static void event_handler_2048_game_left(lv_obj_t * obj, lv_event_t event);
static void event_handler_2048_game_right(lv_obj_t * obj, lv_event_t event);
void lv_100ask_game_2048(void)
{
/* 申请内存 */
g_pt_lv_100ask_2048_game = (T_lv_100ask_2048_game *)malloc(sizeof(T_lv_100ask_2048_game));
/* 初始化桌面背景 */
g_pt_lv_100ask_2048_game->bg = lv_obj_create(lv_scr_act(), NULL);
lv_obj_set_size(g_pt_lv_100ask_2048_game->bg, LV_HOR_RES, LV_VER_RES);
lv_obj_set_y(g_pt_lv_100ask_2048_game->bg, 0);
/* 初始化游戏舞台 */
g_pt_lv_100ask_2048_game->canvas_stage = lv_obj_create(g_pt_lv_100ask_2048_game->bg, NULL);
lv_obj_set_style_local_radius(g_pt_lv_100ask_2048_game->canvas_stage, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, 0); // 设置圆角
lv_obj_set_style_local_bg_color(g_pt_lv_100ask_2048_game->canvas_stage, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, LV_100ASK_2048_GAME_BOX_COLOR); //设置颜色
lv_obj_set_size(g_pt_lv_100ask_2048_game->canvas_stage, LV_100ASK_2048_GAME_BOX_W, LV_100ASK_2048_GAME_BOX_H);
lv_obj_align(g_pt_lv_100ask_2048_game->canvas_stage, NULL, LV_ALIGN_IN_TOP_MID, 0, LV_100ASK_2048_NUMBER_BOX_H);
/* 初始化主界面 */
g_pt_lv_100ask_2048_game->play_game = true;
g_pt_lv_100ask_2048_game->current_score_value = 0;
lv_100ask_game_2048_init();
/* 分配屏幕触摸事件处理 */
lv_obj_set_click(lv_layer_top(), true);
lv_obj_set_event_cb(lv_layer_top(), event_handler_play_2048);
/* 创建app标题 */
add_title(g_pt_lv_100ask_2048_game->bg, "2048 GAME");
}
// 添加标题
static lv_obj_t * add_title(lv_obj_t * obj_space, const char * txt)
{
// 添加标题
lv_obj_t * title = lv_label_create(obj_space, NULL);
lv_obj_set_style_local_text_color(title, LV_OBJ_PART_MAIN, LV_STATE_PRESSED, LV_COLOR_WHITE);
lv_obj_set_style_local_text_font(title, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, &lv_font_montserrat_32);
lv_label_set_text(title, txt);
lv_obj_align(title, NULL, LV_ALIGN_IN_TOP_MID, 0,
LV_100SK_STM32F103_DEMO_TITLE_PAD);
return title;
}
static void lv_100ask_game_2048_init(void)
{
/* 游戏说明 */
lv_obj_t * game_title = lv_label_create(g_pt_lv_100ask_2048_game->bg, NULL);
lv_obj_set_style_local_text_font(game_title, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, &lv_font_montserrat_32); // 设置文字大小
lv_label_set_recolor(game_title, true); /*Enable re-coloring by commands in the text*/
lv_label_set_align(game_title, LV_ALIGN_IN_LEFT_MID); /*Center aligned lines*/
lv_obj_align(game_title, g_pt_lv_100ask_2048_game->canvas_stage, LV_ALIGN_OUT_BOTTOM_LEFT, 0, 0);
lv_label_set_text(game_title, "#776e65 2048# ");
lv_obj_t * game_tutorial = lv_label_create(g_pt_lv_100ask_2048_game->bg, NULL);
lv_label_set_align(game_tutorial, LV_ALIGN_OUT_TOP_LEFT); /*Center aligned lines*/
lv_obj_align(game_tutorial, game_title, LV_ALIGN_OUT_BOTTOM_LEFT, 0, 0);
lv_label_set_text(game_tutorial, "Join the tiles, \nget to 2048!\n");
//lv_label_set_text(game_tutorial, "合并色块，得出更大的数字！");
lv_obj_set_width(game_tutorial, 200);
/* LOGO */
LV_IMG_DECLARE(img_lv_100ask_demo_logo);
lv_obj_t * logo = lv_img_create(g_pt_lv_100ask_2048_game->bg, NULL);
lv_img_set_src(logo, &img_lv_100ask_demo_logo);
lv_obj_align(logo, game_tutorial, LV_ALIGN_OUT_BOTTOM_LEFT, 0, 0); //(lv_obj_get_width(logo)/4)
/* 公司信息 */
lv_obj_t * label_logo = lv_label_create(g_pt_lv_100ask_2048_game->bg, NULL);
lv_obj_set_style_local_text_font(label_logo, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, &lv_font_montserrat_10); // 设置文字大小
lv_label_set_text(label_logo, "www.100ask.net\nwww.lvgl.100ask.net");
lv_obj_align(label_logo, logo, LV_ALIGN_OUT_BOTTOM_LEFT, 0, 0);
/* 最高记录显示区域 */
lv_obj_t * obj_best_source = lv_obj_create(g_pt_lv_100ask_2048_game->bg, NULL);
lv_obj_set_size(obj_best_source, 65, 35);
lv_obj_align(obj_best_source, g_pt_lv_100ask_2048_game->canvas_stage, LV_ALIGN_OUT_BOTTOM_RIGHT,0, 0);
/* 最高记录标题 */
lv_obj_t * best_source_tip_text = lv_label_create(obj_best_source, NULL); /* 创建标签 */
lv_label_set_text(best_source_tip_text, "BEST");
lv_obj_align(best_source_tip_text, NULL, LV_ALIGN_IN_TOP_MID, 0, 0); /* 居中 */
/* 最高记录分数 */
g_pt_lv_100ask_2048_game->label_best_score = lv_label_create(obj_best_source, NULL); /* 创建标签 */
lv_label_set_text(g_pt_lv_100ask_2048_game->label_best_score, "4096");
lv_obj_align(g_pt_lv_100ask_2048_game->label_best_score, NULL, LV_ALIGN_IN_BOTTOM_MID, 0, 0); /* 居中 */
/* 当前分数显示区域 */
lv_obj_t * obj_current_source = lv_obj_create(g_pt_lv_100ask_2048_game->bg, NULL);
lv_obj_set_size(obj_current_source, 65, 35);
lv_obj_align(obj_current_source, obj_best_source, LV_ALIGN_OUT_BOTTOM_MID, 0, (lv_obj_get_height(obj_best_source)/2));
/* 当前分提示 */
lv_obj_t * current_source_tip_text = lv_label_create(obj_current_source, NULL); /* 创建标签 */
lv_label_set_text(current_source_tip_text, "SORCE");
lv_obj_align(current_source_tip_text, NULL, LV_ALIGN_IN_TOP_MID, 0, 0); /* 居中 */
/* 当前分数 */
g_pt_lv_100ask_2048_game->label_current_score = lv_label_create(obj_current_source, NULL); /* 创建标签 */
lv_label_set_text(g_pt_lv_100ask_2048_game->label_current_score, "0");
lv_obj_align(g_pt_lv_100ask_2048_game->label_current_score, NULL, LV_ALIGN_IN_BOTTOM_MID, 0, 0); /* 当前画布居中 */
/* 初始化游戏数字 */
initBoardNumber(g_pt_lv_100ask_2048_game->game_board);
/* 初始化游戏舞台中的每个方格块 */
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
}
static void initBoard(lv_obj_t * parent, uint8_t board[SIZE][SIZE])
{
/* 清除之前所有的子对象 */
lv_obj_clean(parent);
/* 当前分数 */
char str_current_score[8] = {
0};
lv_label_set_text(g_pt_lv_100ask_2048_game->label_current_score, Int2String(g_pt_lv_100ask_2048_game->current_score_value, str_current_score));
for(int y = 0; y < SIZE; y++)
{
for(int x = 0; x < SIZE; x++)
{
if (board[x][y]!=0) {
//sprintf(tmp_char, "%d", board[x][y]);
char tmp_char[8];
snprintf(tmp_char, 8, "%u", (uint32_t)1<<board[x][y]);
drawBoard(parent, tmp_char,\
LV_100ASK_2048_NUMBER_BOX_W, LV_100ASK_2048_NUMBER_BOX_H, \
(8*(y+1))+(LV_100ASK_2048_NUMBER_BOX_W*(y+1-1)), (8*(x+1))+(LV_100ASK_2048_NUMBER_BOX_W*(x+1-1)), Num2Color((uint32_t)1<<board[x][y]));
}
else {
drawBoard(parent, "",\
LV_100ASK_2048_NUMBER_BOX_W, LV_100ASK_2048_NUMBER_BOX_H, \
(8*(y+1))+(LV_100ASK_2048_NUMBER_BOX_W*(y+1-1)), (8*(x+1))+(LV_100ASK_2048_NUMBER_BOX_W*(x+1-1)), LV_100ASK_2048_NUMBER_BOX_COLOR);
}
}
}
}
static void drawBoard(lv_obj_t * parent, char * number, \
uint16_t canvas_w, uint16_t canvas_h, \
uint16_t rect_dsc_x, uint16_t rect_dsc_y, \
lv_color_t rgb32)
{
/* 创建方格块 */
lv_obj_t * obj = lv_obj_create(parent, NULL);
lv_obj_set_size(obj, canvas_w, canvas_h);
lv_obj_set_style_local_bg_color(obj, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, rgb32);
lv_obj_set_style_local_bg_opa(obj, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, LV_OPA_COVER);
lv_obj_set_style_local_radius(obj, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, 0); // 设置圆角
lv_obj_set_style_local_border_opa(obj, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, LV_OPA_0); // 边框透明度
lv_obj_set_style_local_text_font(obj, LV_OBJ_PART_MAIN, LV_STATE_DEFAULT, &lv_font_montserrat_22); // 字体大小
//lv_obj_set_event_cb(obj, event_handler_play_2048); /* 分配事件处理 */
//lv_obj_set_gesture_parent(obj, false);
//lv_obj_set_click(obj, true);
lv_obj_align(obj, NULL, LV_ALIGN_IN_TOP_LEFT, rect_dsc_x, rect_dsc_y);
/* 数字 */
lv_obj_t * icon = lv_label_create(obj, NULL); /* 创建标签 */
lv_label_set_text(icon, number);
lv_obj_align(icon, NULL, LV_ALIGN_CENTER, 0, 0); /* 当前画布居中 */
}
// 10进制
static char* Int2String(int num, char *str)
{
int i = 0;//指示填充str
if(num<0)//如果num为负数，将num变正
{
num = -num;
str[i++] = '-';
}
//转换
do
{
str[i++] = num%10+48;//取num最低位 字符0~9的ASCII码是48~57；简单来说数字0+48=48，ASCII码对应字符'0'
num /= 10;//去掉最低位
}while(num);//num不为0继续循环
str[i] = '\0';
//确定开始调整的位置
int j = 0;
if(str[0]=='-')//如果有负号，负号不用调整
{
j = 1;//从第二位开始调整
++i;//由于有负号，所以交换的对称轴也要后移1位
}
//对称交换
for(;j<i/2;j++)
{
//对称交换两端的值 其实就是省下中间变量交换a+b的值：a=a+b;b=a-b;a=a-b;
str[j] = str[j] + str[i-1-j];
str[i-1-j] = str[j] - str[i-1-j];
str[j] = str[j] - str[i-1-j];
}
return str;//返回转换后的值
}
static void initBoardNumber(uint8_t board[SIZE][SIZE]) {
uint8_t x,y;
for (x=0;x<SIZE;x++) {
for (y=0;y<SIZE;y++) {
board[x][y]=0;
}
}
/* 初始化两个随机位置的随机数 */
addRandom(board);
addRandom(board);
g_pt_lv_100ask_2048_game->current_score_value = 0;
}
static void addRandom(uint8_t board[SIZE][SIZE]) {
static bool initialized = false;
uint8_t x,y;
uint8_t r,len=0;
uint8_t n,list[SIZE*SIZE][2];
if (!initialized) {
srand(time(NULL));
initialized = true;
}
for (x=0;x<SIZE;x++) {
for (y=0;y<SIZE;y++) {
if (board[x][y]==0) {
list[len][0]=x;
list[len][1]=y;
len++;
}
}
}
if (len>0) {
r = rand()%len;
x = list[r][0];
y = list[r][1];
n = (rand()%10)/9+1;
board[x][y]=n;
}
}
static lv_color_t Num2Color(uint32_t num){
switch (num)
{
case 2: return LV_100ASK_2048_NUMBER_2_COLOR;
case 4: return LV_100ASK_2048_NUMBER_4_COLOR;
case 8: return LV_100ASK_2048_NUMBER_8_COLOR;
case 16: return LV_100ASK_2048_NUMBER_16_COLOR;
case 32: return LV_100ASK_2048_NUMBER_32_COLOR;
case 64: return LV_100ASK_2048_NUMBER_64_COLOR;
case 128: return LV_100ASK_2048_NUMBER_128_COLOR;
case 256: return LV_100ASK_2048_NUMBER_256_COLOR;
case 512: return LV_100ASK_2048_NUMBER_512_COLOR;
case 1024: return LV_100ASK_2048_NUMBER_1024_COLOR;
case 2048: return LV_100ASK_2048_NUMBER_2048_COLOR;
default: return LV_100ASK_2048_NUMBER_2048_COLOR;
}
}
static uint8_t findTarget(uint8_t array[SIZE],uint8_t x,uint8_t stop) {
uint8_t t;
// if the position is already on the first, don't evaluate
if (x == 0) {
return x;
}
for(t = (x - 1) ;; t--) {
if (array[t]!=0) {
if (array[t] != array[x]) {
// merge is not possible, take next position
return (t + 1);
}
return t;
} else {
// we should not slide further, return this one
if (t == stop) {
return t;
}
}
}
// we did not find a
return x;
}
static bool slideArray(uint8_t array[SIZE]) {
bool success = false;
uint8_t x, t, stop = 0;
for (x = 0; x < SIZE; x++) {
if (array[x] != 0) {
t = findTarget(array,x,stop);
// if target is not original position, then move or merge
if (t != x) {
// if target is zero, this is a move
if (array[t]==0) {
array[t]=array[x];
} else if (array[t]==array[x]) {
// merge (increase power of two)
array[t]++;
// increase score
g_pt_lv_100ask_2048_game->current_score_value+=(uint32_t)1<<array[t];
// set stop to avoid double merge
stop = t+1;
}
array[x]=0;
success = true;
}
}
}
return success;
}
static void rotateBoard(uint8_t board[SIZE][SIZE]) {
uint8_t i,j,n=SIZE;
uint8_t tmp;
for (i=0; i<n/2; i++) {
for (j=i; j<n-i-1; j++) {
tmp = board[i][j];
board[i][j] = board[j][n-i-1];
board[j][n-i-1] = board[n-i-1][n-j-1];
board[n-i-1][n-j-1] = board[n-j-1][i];
board[n-j-1][i] = tmp;
}
}
}
static bool moveUp(uint8_t board[SIZE][SIZE]) {
bool success = false;
uint8_t x;
for (x=0;x<SIZE;x++) {
success |= slideArray(board[x]);
}
return success;
}
static bool moveLeft(uint8_t board[SIZE][SIZE]) {
bool success;
rotateBoard(board);
success = moveUp(board);
rotateBoard(board);
rotateBoard(board);
rotateBoard(board);
return success;
}
static bool moveDown(uint8_t board[SIZE][SIZE]) {
bool success;
rotateBoard(board);
rotateBoard(board);
success = moveUp(board);
rotateBoard(board);
rotateBoard(board);
return success;
}
static bool moveRight(uint8_t board[SIZE][SIZE]) {
bool success;
rotateBoard(board);
rotateBoard(board);
rotateBoard(board);
success = moveUp(board);
rotateBoard(board);
return success;
}
static bool findPairDown(uint8_t board[SIZE][SIZE]) {
bool success = false;
uint8_t x,y;
for (x=0;x<SIZE;x++) {
for (y=0;y<SIZE-1;y++) {
if (board[x][y]==board[x][y+1]) return true;
}
}
return success;
}
static uint8_t countEmpty(uint8_t board[SIZE][SIZE]) {
uint8_t x,y;
uint8_t count=0;
for (x=0;x<SIZE;x++) {
for (y=0;y<SIZE;y++) {
if (board[x][y]==0) {
count++;
}
}
}
return count;
}
static bool gameEnded(uint8_t board[SIZE][SIZE]) {
bool ended = true;
if (countEmpty(board)>0) return false;
if (findPairDown(board)) return false;
rotateBoard(board);
if (findPairDown(board)) ended = false;
rotateBoard(board);
rotateBoard(board);
rotateBoard(board);
return ended;
}
/* 触摸屏检测 */
static void event_handler_play_2048(lv_obj_t * obj, lv_event_t event)
{
if (event == LV_EVENT_GESTURE)
{
bool success = false;
printf(" GAME BEGIN! \n\r");
switch(lv_indev_get_gesture_dir(lv_indev_get_act()))
{
case LV_GESTURE_DIR_TOP:
printf("LV_GESTURE_DIR_TOP.\n\r");
success = moveLeft(g_pt_lv_100ask_2048_game->game_board); break;
case LV_GESTURE_DIR_BOTTOM:
printf("LV_GESTURE_DIR_BOTTOM.\n\r");
success = moveRight(g_pt_lv_100ask_2048_game->game_board); break;
case LV_GESTURE_DIR_RIGHT:
printf("LV_GESTURE_DIR_RIGHT.\n\r");
success = moveDown(g_pt_lv_100ask_2048_game->game_board); break;
case LV_GESTURE_DIR_LEFT:
printf("LV_GESTURE_DIR_LEFT.\n\r");
success = moveUp(g_pt_lv_100ask_2048_game->game_board); break;
default: success = false;
}
if (success)
{
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
addRandom(g_pt_lv_100ask_2048_game->game_board);
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
if (gameEnded(g_pt_lv_100ask_2048_game->game_board))
{
printf(" GAME OVER \n");
g_pt_lv_100ask_2048_game->play_game = false;
}
}
}
}
/* 按键方式 */
static void event_handler_2048_game_up(lv_obj_t * obj, lv_event_t event)
{
if (moveUp(g_pt_lv_100ask_2048_game->game_board))
{
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
addRandom(g_pt_lv_100ask_2048_game->game_board);
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
if (gameEnded(g_pt_lv_100ask_2048_game->game_board)) {
printf(" GAME OVER \n");
}
}
}
static void event_handler_2048_game_down(lv_obj_t * obj, lv_event_t event)
{
if (moveDown(g_pt_lv_100ask_2048_game->game_board))
{
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
addRandom(g_pt_lv_100ask_2048_game->game_board);
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
if (gameEnded(g_pt_lv_100ask_2048_game->game_board)) {
printf(" GAME OVER \n");
}
}
}
static void event_handler_2048_game_left(lv_obj_t * obj, lv_event_t event)
{
if (moveLeft(g_pt_lv_100ask_2048_game->game_board))
{
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
addRandom(g_pt_lv_100ask_2048_game->game_board);
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
if (gameEnded(g_pt_lv_100ask_2048_game->game_board)) {
printf(" GAME OVER \n");
}
}
}
static void event_handler_2048_game_right(lv_obj_t * obj, lv_event_t event)
{
if (moveRight(g_pt_lv_100ask_2048_game->game_board))
{
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
addRandom(g_pt_lv_100ask_2048_game->game_board);
initBoard(g_pt_lv_100ask_2048_game->canvas_stage, g_pt_lv_100ask_2048_game->game_board);
if (gameEnded(g_pt_lv_100ask_2048_game->game_board)) {
printf(" GAME OVER \n");
}
}
}
