今天初次使用modelism做ISE的联合仿真,出现如下的报错:
/***********************************/

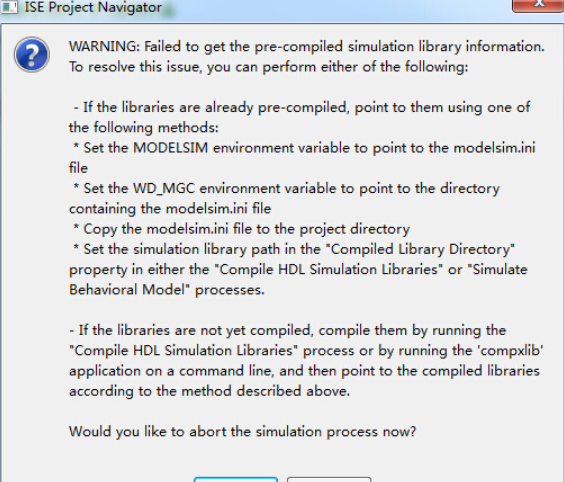

WARNING: Failed to get the pre-compiled simulation library information. To resolve this issue, you can perform either of the following:
- If the libraries are already pre-compiled, point to them using one of the following methods:
- Set the MODELSIM environment variable to point to the modelsim.ini file
- Set the WD_MGC environment variable to point to the directory containing the modelsim.ini file
- Copy the modelsim.ini file to the project directory
- Set the simulation library path in the “Compiled Library Directory” property in either the “Compile HDL Simulation Libraries” or “Simulate Behavioral Model” processes.
/***********************************/
基本按照这个方法没有解决,链接,网上也都是同类的解决办法。没有什么效果,最后发现是路径的问题:
简单解决方法如下:

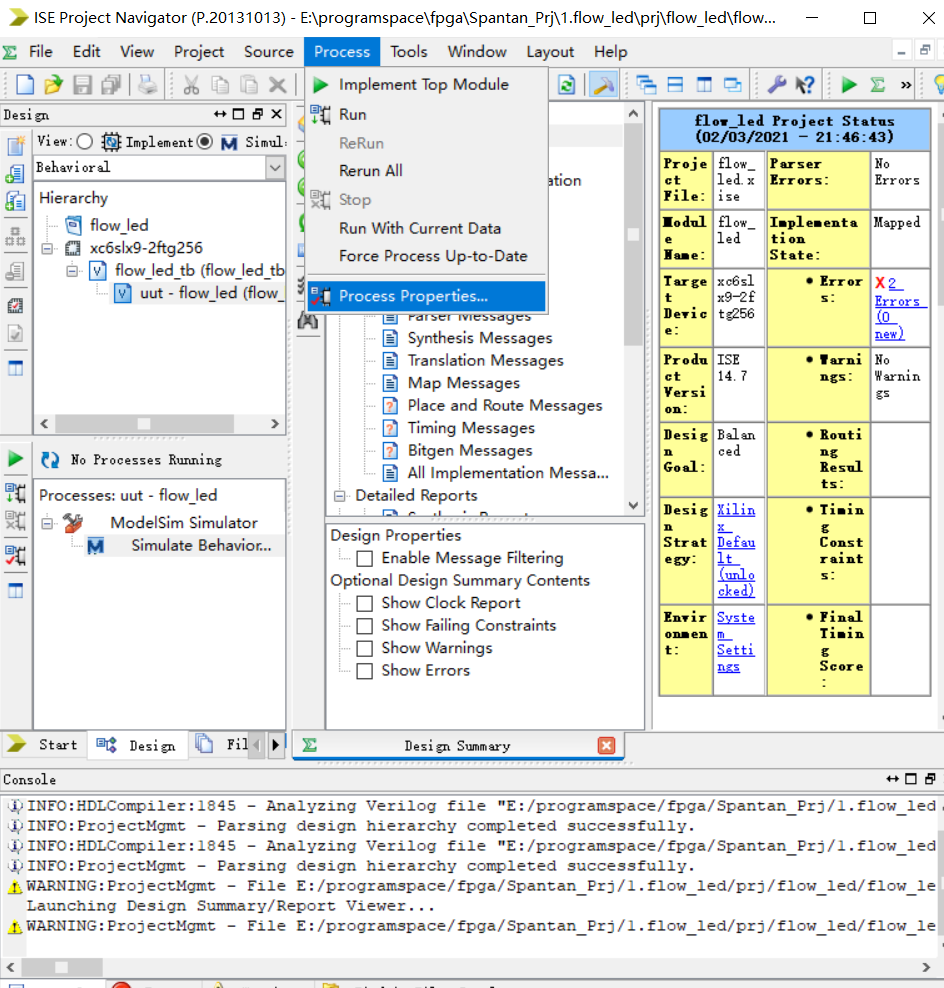

1.打开ISE-process-process-properties

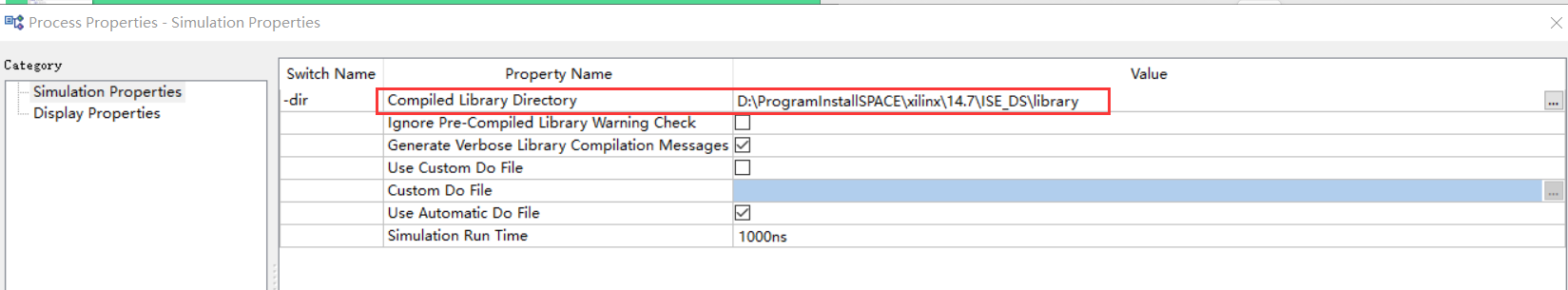

2.仔细检查图中这一选项:
3.保证这一选项和ise安装库的路径一致,也就是某些教程里的这一步的路径(下图截取自某些安装教程)
