The sixth unit tween animation and the use of frame animation

Others 2021-02-28 13:31:48 views: null

Detailed explanation of animation

Introduction overview https://www.jianshu.com/p/35d25cc205e7

Tween animation

Introduction https://www.jianshu.com/p/733532041f46

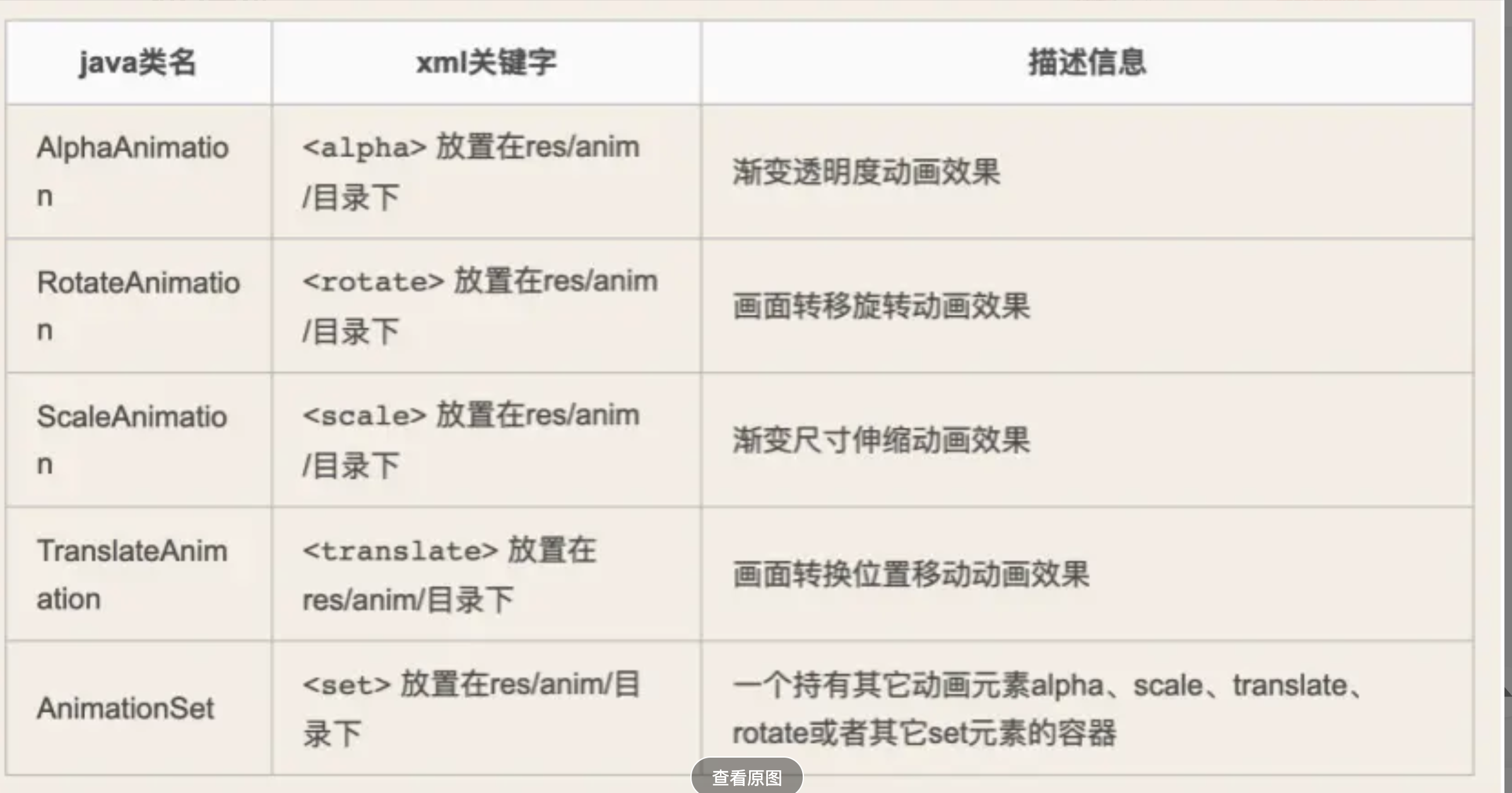

Properties:
Insert picture description here
wherein AnimationSet is a combination of several, and the rest of AnimationSet other
basic properties:
Insert picture description here
wherein,
the Duration: duration in milliseconds
the Interpolator: interpolator

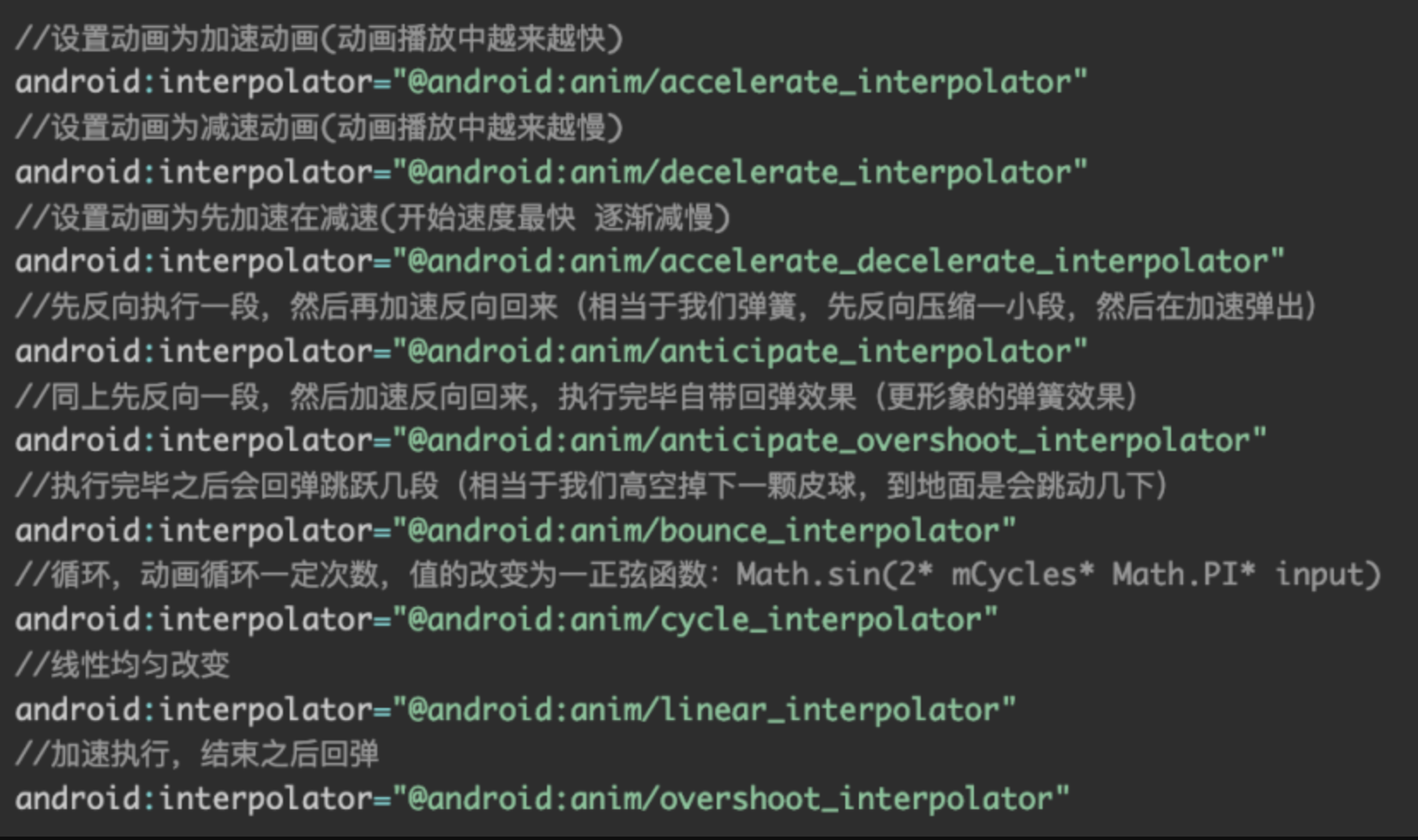

interpolating list
Insert picture description here
Alpha properties
Insert picture description here
Rorate Attribute
Insert picture description here

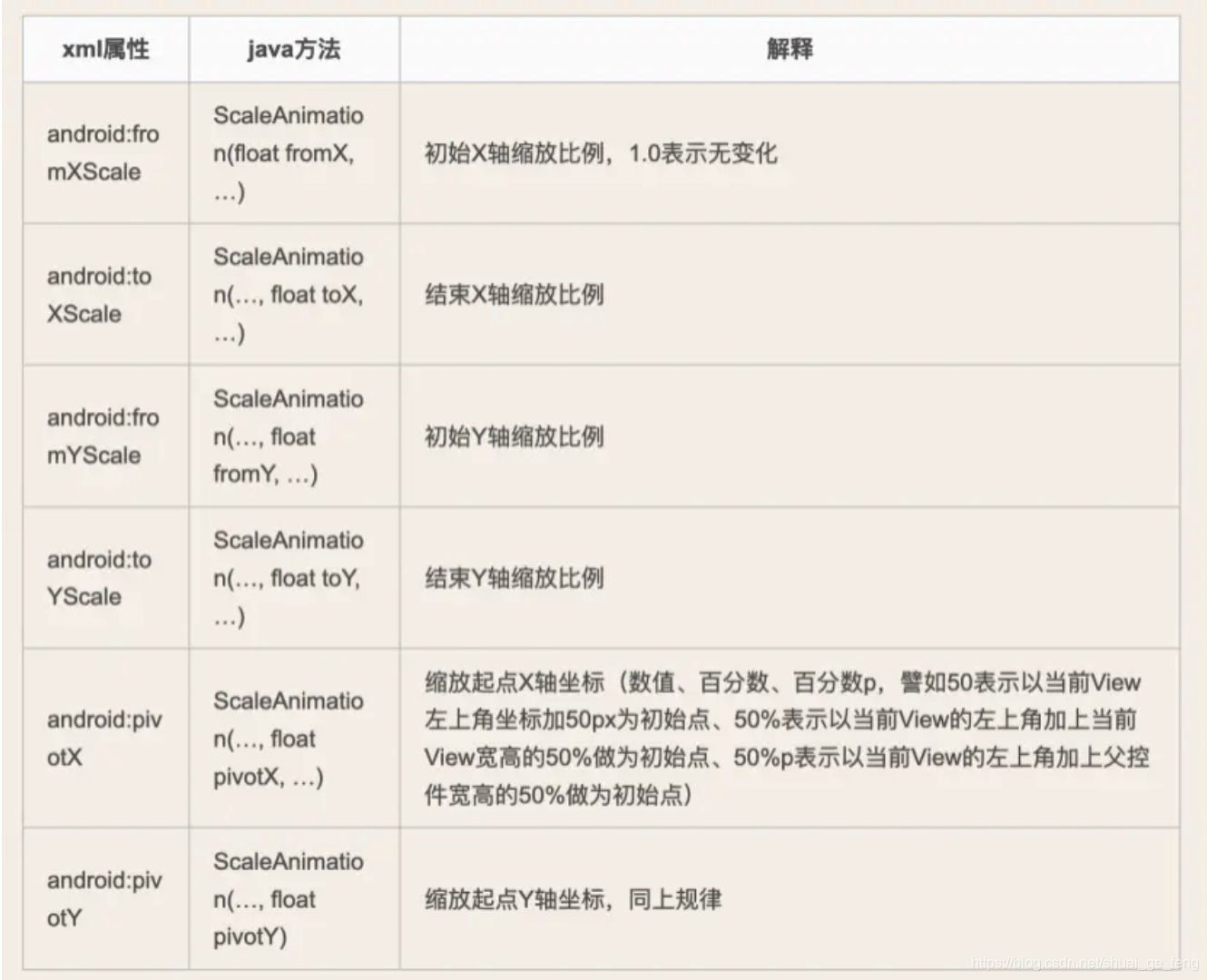

Scale property
Insert picture description here

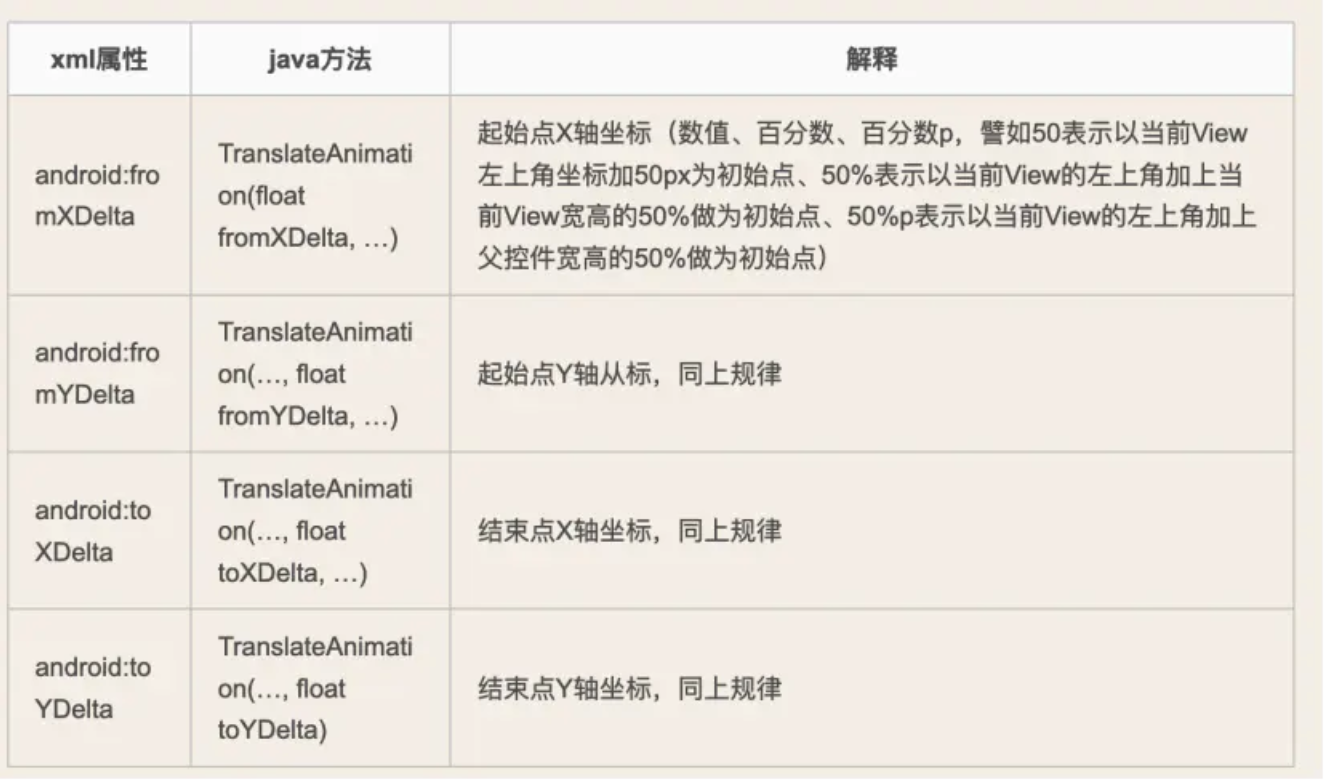

Translate properties
Insert picture description here
AnimationSet

<?xml version="1.0" encoding="utf-8"?><set xmlns:android="http://schemas.android.com/apk/res/android"
    android:interpolator="@[package:]anim/interpolator_resource"
    android:shareInterpolator=["true" | "false"] >
    <alpha
        android:fromAlpha="float"
        android:toAlpha="float" />
    <scale
        android:fromXScale="float"
        android:toXScale="float"
        android:fromYScale="float"
        android:toYScale="float"
        android:pivotX="float"
        android:pivotY="float" />
    <translate
        android:fromXDelta="float"
        android:toXDelta="float"
        android:fromYDelta="float"
        android:toYDelta="float" />
    <rotate
        android:fromDegrees="float"
        android:toDegrees="float"
        android:pivotX="float"
        android:pivotY="float" />
    <set>
        ...
    </set></set>

Sample
alpha.xml

<?xml version="1.0" encoding="utf-8"?>
<alpha xmlns:android="http://schemas.android.com/apk/res/android"
    android:duration="2000"
    android:interpolator="@android:anim/accelerate_interpolator"
    android:fromAlpha="0"
    android:toAlpha="1"
    >

</alpha>

rotate.xml

<?xml version="1.0" encoding="utf-8"?>
<rotate xmlns:android="http://schemas.android.com/apk/res/android"
    android:duration="2000"
    android:interpolator="@android:anim/accelerate_interpolator"
    android:fromDegrees="0"
    android:toDegrees="360"
    android:pivotX="50%"
    android:pivotY="50%"
    >
<!--   fromDegrees 角度 -->
<!--    旋转中心点 pivotX pivotY-->

</rotate>

scale.xml

<?xml version="1.0" encoding="utf-8"?>
<scale xmlns:android="http://schemas.android.com/apk/res/android"
    android:duration="1000"
    android:interpolator="@android:anim/accelerate_interpolator"
    android:fromXScale="1"
    android:toXScale="1.5"
    android:fromYScale="1"
    android:toYScale="0.5"
    android:pivotY="50%"
    android:pivotX="50%"
    >
<!--toXScale 放大的倍数 1.5 放大  0.5 缩小-->
</scale>

translate.xml

<?xml version="1.0" encoding="utf-8"?>
<translate xmlns:android="http://schemas.android.com/apk/res/android"
    android:duration="1000"
    android:interpolator="@android:anim/accelerate_interpolator"
    android:fromYDelta="0"
    android:toYDelta="200"
    android:fromXDelta="0"
    android:toXDelta="200"
    >
</translate>

code in activity

package com.fenghongzhang.anim.tween;

import android.os.Bundle;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationSet;
import android.view.animation.AnimationUtils;
import android.view.animation.TranslateAnimation;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

import com.fenghongzhang.anim.R;

public class TweenActivity extends AppCompatActivity {



    private Button btn;
    private Button btn1;
    private Button btn2;
    private Button btn3;
    private ImageView img;

    @Override
    protected void onCreate(Bundle savedInstanceState) {


        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_tween);
        initView();
    }

    public void btn(View view) {


        Animation animation = AnimationUtils.loadAnimation(this, R.anim.alpha);
        img.startAnimation(animation);
    }

    public void btn1(View view) {


        Animation animation = AnimationUtils.loadAnimation(this, R.anim.rotate);
        img.startAnimation(animation);
    }

    public void btn2(View view) {


        Animation animation = AnimationUtils.loadAnimation(this, R.anim.scale);
        img.startAnimation(animation);
    }

    public void btn3(View view) {


        Animation animation = AnimationUtils.loadAnimation(this, R.anim.translate);
        img.startAnimation(animation);
    }

    private void initView() {


        btn = (Button) findViewById(R.id.btn);
        btn1 = (Button) findViewById(R.id.btn1);
        btn2 = (Button) findViewById(R.id.btn2);
        btn3 = (Button) findViewById(R.id.btn3);
        img = (ImageView) findViewById(R.id.img);
    }

    public void btn4(View view) {


        AnimationSet animationSet = new AnimationSet(true);
        Animation animation = AnimationUtils.loadAnimation(this, R.anim.translate);
        Animation animation2 = AnimationUtils.loadAnimation(this, R.anim.scale);

        animationSet.addAnimation(animation);
        animationSet.addAnimation(animation2);

        img.startAnimation(animationSet);
    }

    //动态创建动画
    public void btn5(View view) {


        TranslateAnimation translateAnimation = new TranslateAnimation(0, 300, 0, 300);
        translateAnimation.setDuration(3000);
        translateAnimation.setAnimationListener(new Animation.AnimationListener() {


            @Override
            public void onAnimationStart(Animation animation) {


                Toast.makeText(TweenActivity.this, "start", Toast.LENGTH_SHORT).show();
            }

            @Override
            public void onAnimationEnd(Animation animation) {


                Toast.makeText(TweenActivity.this, "end", Toast.LENGTH_SHORT).show();
            }

            @Override
            public void onAnimationRepeat(Animation animation) {


                Toast.makeText(TweenActivity.this, "重复", Toast.LENGTH_SHORT).show();
            }
        });
        img.startAnimation(translateAnimation);
    }
}

Frame-by-frame animation

Introduction https://www.jianshu.com/p/225fe1feba60

method one

Specific use

  1. Step 1: Put the animation resources (that is, each picture resource) into the drawable folder

Tips:
Find the gif animation you need.
Use gif decomposition software (such as GifSplitter) to decompose the gif into pictures.

  1. Steps: Set up & start animation

There are two ways to set & start frame-by-frame animation: in XML/Java code.

Create an animation effect.xml file in the res/ drawable folder.
Set animation resources (picture resources)

<?xml version="1.0" encoding="utf-8"?>
<animation-list xmlns:android="http://schemas.android.com/apk/res/android">

    <item android:drawable="@drawable/a1"></item>
    <item android:drawable="@drawable/a2"></item>
    <item android:drawable="@drawable/a3"></item>
    <item android:drawable="@drawable/a4"></item>
    <item android:drawable="@drawable/a5"></item>
    <item android:drawable="@drawable/a6"></item>
    <item android:drawable="@drawable/a7"></item>
    <item android:drawable="@drawable/a8"></item>
    <item android:drawable="@drawable/a9"></item>
</animation-list>
  1. Step: Load & start animation in Java code
package com.fenghongzhang.anim;

import android.graphics.drawable.AnimationDrawable;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.view.View;
import android.view.animation.Animation;
import android.widget.Button;
import android.widget.ImageView;

import androidx.appcompat.app.AppCompatActivity;


public class MainActivity extends AppCompatActivity {



    private Button start;
    private Button stop;
    private ImageView img;

    @Override
    protected void onCreate(Bundle savedInstanceState) {


        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();
    }

    public void start(View view) {


        img.setImageResource(R.drawable.pikaqiu);
        AnimationDrawable drawable = (AnimationDrawable) img.getDrawable();
        drawable.start();


    }

    public void stop(View view) {


        AnimationDrawable drawable = (AnimationDrawable) img.getDrawable();
        drawable.stop();
    }

    private void initView() {


        start = (Button) findViewById(R.id.start);
        stop = (Button) findViewById(R.id.stop);
        img = (ImageView) findViewById(R.id.img);
    }
}

Method 2: Realize in Java code

package com.fenghongzhang.anim;

import android.graphics.drawable.AnimationDrawable;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.view.View;
import android.view.animation.Animation;
import android.widget.Button;
import android.widget.ImageView;

import androidx.appcompat.app.AppCompatActivity;


public class MainActivity extends AppCompatActivity {



    private Button start;
    private Button stop;
    private ImageView img;

    private AnimationDrawable animationDrawable;
    @Override
    protected void onCreate(Bundle savedInstanceState) {


        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();

           //<-- 直接从drawable文件夹获取动画资源（图片） -->
         animationDrawable = new AnimationDrawable();
        for (int i = 1; i <= 9; i++) {


            int id = getResources().getIdentifier("a" + i, "drawable", getPackageName());
            Drawable drawable = getResources().getDrawable(id);
            animationDrawable.addFrame(drawable, 100);
        }
    }

    public void start(View view) {


        img.setImageResource(R.drawable.pikaqiu);
        AnimationDrawable drawable = (AnimationDrawable) img.getDrawable();
        drawable.start();


    }

    public void stop(View view) {


        AnimationDrawable drawable = (AnimationDrawable) img.getDrawable();
        drawable.stop();
    }

    private void initView() {


        start = (Button) findViewById(R.id.start);
        stop = (Button) findViewById(R.id.stop);
        img = (ImageView) findViewById(R.id.img);
    }

    public void btn1(View view) {


        //只执行一次. 不会停止就停止了
//        animationDrawable.setOneShot(true);
        img.setImageDrawable(animationDrawable);
//        animationDrawable.stop();
        animationDrawable.start();

    }

    public void btn2(View view) {


//        animationDrawable.setOneShot(true);
        animationDrawable.stop();
    }
}
