One of TCC distributed transactions-the latest version of tcc-transaction-1.2.x integrates spring cloud + dubbo + zookeeper

Tcc-transaction is the open source tcc distributed transaction framework of github. Compared with other tcc open source frameworks, tcc-transaction ranks first in the number of stars. It can be processed asynchronously or synchronously.

Github User Guide 1.2.x: https://github.com/changmingxie/tcc-transaction/wiki/%E4%BD%BF%E7%94%A8%E6%8C%87%E5%8D%971.2.x

tcc three stages

Try: Try to execute business

完成所有业务检查（一致性）
预留必须业务资源（准隔离性）

Confirm: Confirm execution of business

真正执行业务
不作任何业务检查
只使用Try阶段预留的业务资源
Confirm操作满足幂等性

Cancel: Cancel execution of business

释放Try阶段预留的业务资源
Cancel操作满足幂等性

maven configuration

			<!--tcc-transaction核心包-->
			<dependency>
				<groupId>org.mengyun</groupId>
				<artifactId>tcc-transaction-spring</artifactId>
				<version>1.2.12</version>
			</dependency>
			<!--tcc-transaction整合dubbo核心包-->
			<dependency>
				<groupId>org.mengyun</groupId>
				<artifactId>tcc-transaction-dubbo</artifactId>
				<version>1.2.12</version>
			<exclusions>
				<exclusion>
					<groupId>org.apache.dubbo</groupId>
					<artifactId>dubbo</artifactId>
				</exclusion>
				<exclusion>
					<artifactId>zookeeper</artifactId>
					<groupId>org.apache.zookeeper</groupId>
				</exclusion>
				<exclusion>
					<artifactId>curator-recipes</artifactId>
					<groupId>org.apache.curator</groupId>
				</exclusion>
			</exclusions>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
				<version>2.2.1.RELEASE</version>
			</dependency>
			<dependency>
	            <groupId>com.alibaba.cloud</groupId>
	            <artifactId>spring-cloud-starter-dubbo</artifactId>
	            <version>2.2.1.RELEASE</version>
	            <exclusions>
	                <exclusion>
	                    <groupId>org.apache.dubbo</groupId>
	                    <artifactId>dubbo</artifactId>
	                </exclusion>
	            </exclusions>
	        </dependency>
	        <dependency>
	            <groupId>org.apache.dubbo</groupId>
	            <artifactId>dubbo</artifactId>
	            <version>2.7.7</version>
	        </dependency>
		</dependency>

First, you need to configure the config of the tcc service and the remote tcc service

tcc service configuration

@Configuration
public class TccConfig {



    @Bean
    public DefaultRecoverConfig defaultRecoverConfig(){


        DefaultRecoverConfig defaultRecoverConfig = new DefaultRecoverConfig();
        defaultRecoverConfig.setMaxRetryCount(30);   //最大重试次数
        defaultRecoverConfig.setRecoverDuration(30); //恢复持续时间
        defaultRecoverConfig.setCronExpression("0/30 * * * * ?"); //每30秒检查一次是否需要恢复(检查对应的日志表有无需要恢复的数据)//每30秒检查一次是否需要恢复
        defaultRecoverConfig.setDelayCancelExceptions(Sets.newHashSet(org.apache.dubbo.remoting.TimeoutException.class));
        return defaultRecoverConfig;
    }

    @Bean("transactionRepository")
    public SpringJdbcTransactionRepository springJdbcTransactionRepository(){


        SpringJdbcTransactionRepository springJdbcTransactionRepository = new SpringJdbcTransactionRepository();

        springJdbcTransactionRepository.setDomain("CONSUMER");    //domain
        springJdbcTransactionRepository.setTbSuffix("_CONSUMER"); //配置tcc日志表名称后缀：这里为：tcc_transaction_consumer

        //tcc所需分布式事务日志数据源（也可以使用其他数据源框架）
        HikariDataSource hikariDataSource = new HikariDataSource();
        hikariDataSource.setDriverClassName("com.mysql.cj.jdbc.Driver");
        hikariDataSource.setJdbcUrl("jdbc:mysql://127.0.0.1:3306/tcc?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&serverTimezone=CTT");
        hikariDataSource.setUsername("root");
        hikariDataSource.setPassword("root");
        springJdbcTransactionRepository.setDataSource(hikariDataSource);

        return springJdbcTransactionRepository;
    }

}

Remote tcc service configuration, only need to modify the following two codes, other configurations are the same

		springJdbcTransactionRepository.setDomain("PROVIDER");
        springJdbcTransactionRepository.setTbSuffix("_PROVIDER"); //配置tcc日志表名称后缀：这里为：tcc_transaction_provider

2. service defines the three stages of tcc service
   asyncConfirm = false：是否异步处理confirm阶段，默认false，也就是同步处理
asyncCancel = false：是否异步处理cancel阶段，默认false，也就是同步处理

@Service
public class TccService{



	@DubboReference(check = false, retries = 0, timeout = 30000) //dubbo rpc远程过程调用
	private TestService testService;

 	@Override
    @Transactional
    @Compensable(confirmMethod = "commit", cancelMethod = "rollback", asyncConfirm = false, asyncCancel = false, delayCancelExceptions = {

    SocketTimeoutException.class, org.apache.dubbo.remoting.TimeoutException.class})
    public void doTry(@UniqueIdentity TransactionContext transactionContext, String accountNo, String to, BigDecimal amount) {


    	//try阶段
    	testService.remoteDoTry(transactionContext, accountNo, amount);
	}

	//如果try阶段成功，commit阶段必须成功，如果commit阶段抛出异常，则会重试commit阶段
 	@Transactional
    public void commit(TransactionContext transactionContext, String accountNo, String to, BigDecimal amount) {


    	//commit阶段
	}

 	@Transactional
    public void rollback(TransactionContext transactionContext, String accountNo, String to, BigDecimal amount) {


    	//rollback阶段
	}

Controller call:

@RestController
public class TestController {



	@Autowired
	private TccService tccService;

    @GetMapping("tcc")
    @ResponseBody
    public String tcc(String from, String to, BigDecimal amount) throws Exception {


        try{


            tccService.doTry(null, from, to, amount);
            return "success";
        } catch (Exception e){


            return "fail：" + e.getMessage();
        } finally {


            System.out.println("success finally");
        }
    }
}

4. service defines three stages of remote tcc service

 	@Override
    @Transactional
    @Compensable(confirmMethod = "remoteCommit", cancelMethod = "remoteRollback", asyncConfirm = false, asyncCancel = false, delayCancelExceptions = {

    SocketTimeoutException.class, org.apache.dubbo.remoting.TimeoutException.class})
    public void remoteDoTry(@UniqueIdentity TransactionContext transactionContext, String accountNo, BigDecimal amount) {


    	//try阶段
	}

	//如果try阶段成功，commit阶段必须成功，如果commit阶段抛出异常，则会重试commit阶段
 	@Transactional
    public void remoteCommit(TransactionContext transactionContext, String accountNo, BigDecimal amount) {


    	//commit阶段
	}

 	@Transactional
    public void remoteRollback(TransactionContext transactionContext, String accountNo, BigDecimal amount) {


    	//rollback阶段
	}

TestService interface, pay attention to the @Compensableannotation on the remote interface

	@Compensable
    void remoteDoTry(TransactionContext transactionContext, String accountNo, BigDecimal amount);

The core code has been completed, configure the startup class

@SpringBootApplication
@EnableDiscoveryClient
@EnableDubbo 			 //启动dubbo配置与注解
@EnableAspectJAutoProxy  //启动切面类
@ImportResource(locations = {

    "classpath:tcc-transaction.xml", "classpath:tcc-transaction-dubbo.xml"}) //加载框架tcc-transaction配置
public class Application {



    public static void main(String[] args) {


        SpringApplication.run(Application .class, args);
    }

}

tcc database configuration

Tcc configuration database, because the database name configured as a front tcc, and tcc service configuration table suffix _CONSUMER, remote tcc service configuration table suffix _PROVIDER, so tcc create two tables in the database, the following is sql script

sql script, fields are The same, the only difference is the table name suffix

CREATE TABLE `tcc_transaction_consumer` (
  `TRANSACTION_ID` int(11) NOT NULL AUTO_INCREMENT,
  `DOMAIN` varchar(100) DEFAULT NULL,
  `GLOBAL_TX_ID` varbinary(32) NOT NULL,
  `BRANCH_QUALIFIER` varbinary(32) NOT NULL,
  `CONTENT` varbinary(8000) DEFAULT NULL,
  `STATUS` int(11) DEFAULT NULL,
  `TRANSACTION_TYPE` int(11) DEFAULT NULL,
  `RETRIED_COUNT` int(11) DEFAULT NULL,
  `CREATE_TIME` datetime DEFAULT NULL,
  `LAST_UPDATE_TIME` datetime DEFAULT NULL,
  `VERSION` int(11) DEFAULT NULL,
  `IS_DELETE` tinyint(1) NOT NULL DEFAULT '0',
  PRIMARY KEY (`TRANSACTION_ID`),
  UNIQUE KEY `UX_TX_BQ` (`GLOBAL_TX_ID`,`BRANCH_QUALIFIER`)
) ENGINE=InnoDB AUTO_INCREMENT=378 DEFAULT CHARSET=utf8;

CREATE TABLE `tcc_transaction_provider` (
  `TRANSACTION_ID` int(11) NOT NULL AUTO_INCREMENT,
  `DOMAIN` varchar(100) DEFAULT NULL,
  `GLOBAL_TX_ID` varbinary(32) NOT NULL,
  `BRANCH_QUALIFIER` varbinary(32) NOT NULL,
  `CONTENT` varbinary(8000) DEFAULT NULL,
  `STATUS` int(11) DEFAULT NULL,
  `TRANSACTION_TYPE` int(11) DEFAULT NULL,
  `RETRIED_COUNT` int(11) DEFAULT NULL,
  `CREATE_TIME` datetime DEFAULT NULL,
  `LAST_UPDATE_TIME` datetime DEFAULT NULL,
  `VERSION` int(11) DEFAULT NULL,
  `IS_DELETE` tinyint(1) NOT NULL DEFAULT '0',
  PRIMARY KEY (`TRANSACTION_ID`),
  UNIQUE KEY `UX_TX_BQ` (`GLOBAL_TX_ID`,`BRANCH_QUALIFIER`)
) ENGINE=InnoDB AUTO_INCREMENT=378 DEFAULT CHARSET=utf8;

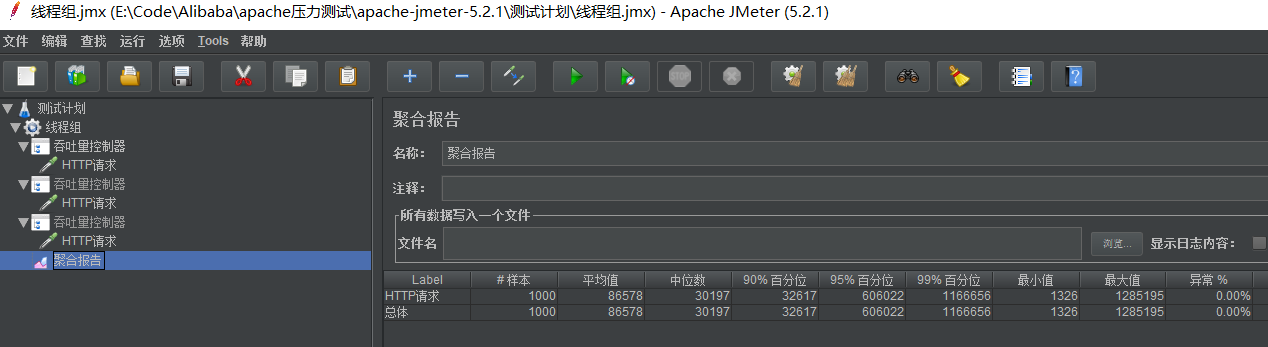

Finally, attach a picture of using the apache jmeter stress test tool: the test is 100 threads, each thread has a throughput of 10, and the test data is accurate:


调用处理次数1000次没有问题，数据库数据也没有问题 !

At this point, the tcc distributed transaction is complete. If you still have questions, you can leave a message and you will answer as soon as you see it. Helpful friends 点个赞-点个赞-点个赞, refills~
