Use of CefSharp under WPF

I have been using WPF's own WebBrowsercontrols before , but because it uses the IE kernel, it is difficult to use, and various errors are reported. So I changed to an open source browser package, CefSharp, which supports Winform and WPF, embeds the Chrome browser component and has more detailed documentation.

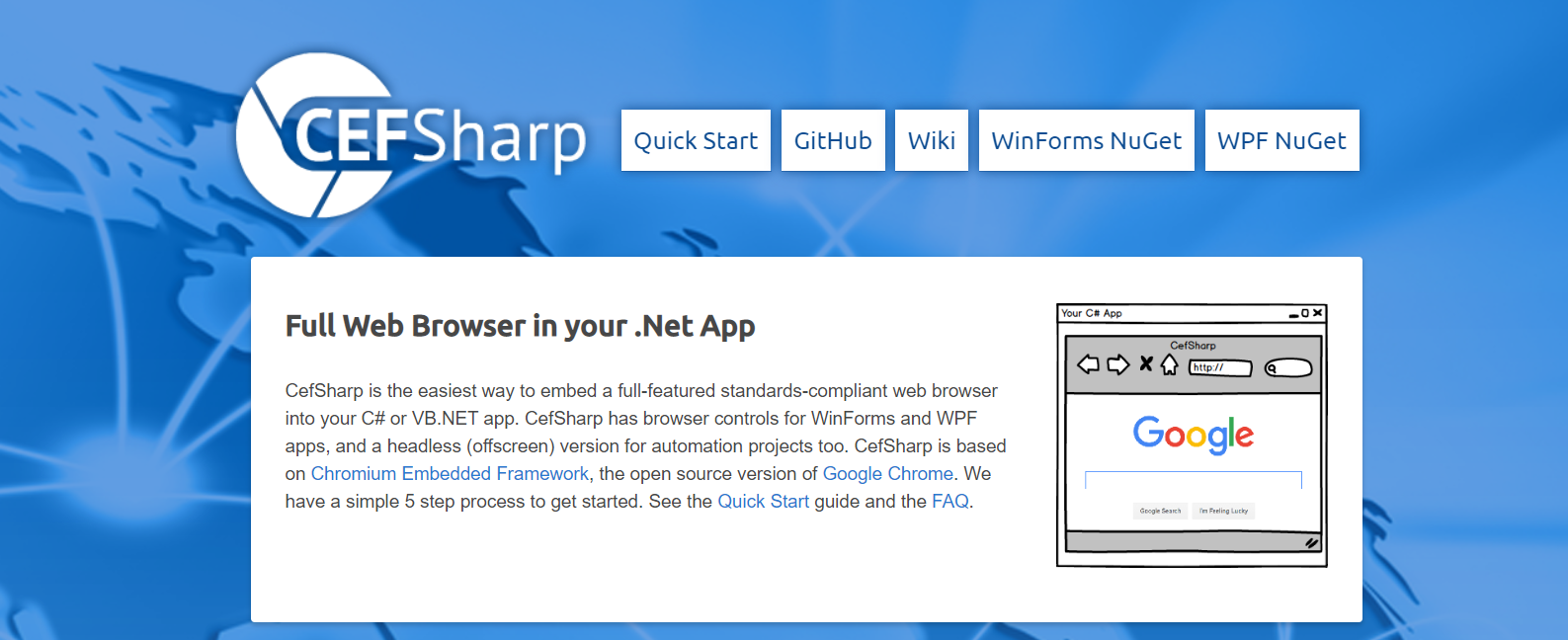

• Open source project address

• Official Chinese help document

installation

1. By Nuget installation, right-click the project -> Management Nuget Package -> Search in the open interface CefSharp, followed by the installation CefSharp.Commonand CefSharp.Wpf, as cef.redist.x64and cef.redist.x86installed automatically.

2. Configure the solution platform

   Because CefSharp does not support ANYCPU, to configure x86, x64, click the menu Generate -> Configuration Manager. Select the solution platform, click Edit, delete x64 and x86 first, and then re-create it. Reconfiguration is easier.



use

When using, you can directly add ChromiumWebBrowsercontrols in the xaml file , but the ChromiumWebBrowsercontrols consume memory, so dynamic addition in the code is also a good choice.

Add a browser in xaml

1. Insert a reference in the header of the xmal file xmlns:wpf="clr-namespace:CefSharp.Wpf;assembly=CefSharp.Wpf"and add controls as follows:

   <Grid x:Name="ctrlBrowerGrid">
       <wpf:ChromiumWebBrowser x:Name="Browser"/>
   </Grid>


2. Access URL of operation control in cs file:

   Browser.Load(“www.baidu.com”);


Dynamically add browsers

1. Add browser class:

   internal sealed class CollapsableChromiumWebBrowser : ChromiumWebBrowser
   {
       public CollapsableChromiumWebBrowser()
       {
           this.Loaded += this.BrowserLoaded;
       }

       private void BrowserLoaded(object sender, System.Windows.RoutedEventArgs e)
       {
           // Avoid loading CEF in designer
           if (DesignerProperties.GetIsInDesignMode(this))
               return;
           // Avoid NRE in AbstractRenderHandler.OnPaint
           ApplyTemplate();
           CreateOffscreenBrowser(new Size(400, 400));
       }
   }


2. Dynamically add and operate controls:

   CollapsableChromiumWebBrowser Browser = new CollapsableChromiumWebBrowser();
   //页面插入控件
   ctrlBrowerGrid.Children.Add(Browser);
   //这里不能用Load()的方法，会报错。
   Browser.Address = “www.baidu.com”;


Get Cookie and Html

1. Add cookie access class

   public class CookieVisitor : ICookieVisitor
   {
       public static string Cookies = null;
       public static string Html = null;
       public event Action<object> Action;
       public bool Visit(CefSharp.Cookie cookie, int count, int total, ref bool deleteCookie)
       {
           if(count == 0)
               Cookies = null;

           Cookies += cookie.Name + "=" + cookie.Value + ";";
           deleteCookie = false;
           return true;
       }

       public void Dispose()
       {
           if (Action != null)
               Action((Html, Cookies));
           return;
       }
   }


2. Add Cookie and Html to get callback function

   public async void RecieveCookie(object data)
   {
       (string html,string cookies) = ((string,string))data;
       return;
   }


3. Browser control to access URL and set callback

   async void LoadWebBrowser()
   {
       Browser.FrameLoadEnd += Browser_FrameLoadEnd;
       Browser.Address = "www.baidu.com";
   }

   private async void Browser_FrameLoadEnd(object sender, FrameLoadEndEventArgs e)
   {
       CookieVisitor.Html = await Browser.GetSourceAsync();
       CookieVisitor visitor = new CookieVisitor();
       visitor.Action += RecieveCookie;
       Cef.GetGlobalCookieManager().VisitAllCookies(visitor);
       return;
   }
