文章目录
1. 创建表
1.1 表之间的关系
- 用户表与角色表之间的关系：多对多
- 角色表与权限表之间的关系：多对多
1.2 用户表
| 序号 | 字段名称 | 字段类型 | 字段描述 |
|---|---|---|---|
| 1 | id | int(11) | 主键，自增长 |
| 2 | varchar(50) | 邮箱，非空，唯一 | |
| 3 | userName | varchar(50) | 用户名 |
| 4 | password | varchar(100) | 密码 |
| 5 | phoneNum | varchar(50) | 电话 |
| 6 | status | int(11) | 状态(0未开启 1开启) |
DROP TABLE IF EXISTS `users`;
CREATE TABLE `users` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`email` varchar(50) NOT NULL,
`userName` varchar(50) DEFAULT NULL,
`password` varchar(100) DEFAULT NULL,
`phoneNum` varchar(50) DEFAULT NULL,
`status` int(11) DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `email` (`email`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;
INSERT INTO `users` VALUES ('1', '[email protected]', '张三', '$2a$10$7u0aq7hSJ8xFNEFXESRgfObOZw7YxV.YVHNOiMentENOIForpkQzS', '13333333333', '1');
INSERT INTO `users` VALUES ('2', '[email protected]', '李四', '$2a$10$7u0aq7hSJ8xFNEFXESRgfObOZw7YxV.YVHNOiMentENOIForpkQzS', '12222222222', '1');
1.3 角色表
| 序号 | 字段名称 | 字段类型 | 字段描述 |
|---|---|---|---|
| 1 | id | int(11) | 主键，自增长 |
| 2 | roleName | varchar(50) | 用户名 |
| 3 | roleDesc | varchar(50) | 用户描述 |
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`roleName` varchar(50) DEFAULT NULL,
`roleDesc` varchar(50) DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
INSERT INTO `role` VALUES ('1', 'USER', '用户');
INSERT INTO `role` VALUES ('2', 'ADMIN', '管理员');
1.4 用户与角色的中间表
| 序号 | 字段名称 | 字段类型 | 字段描述 |
|---|---|---|---|
| 1 | usersId | int(11) | 用户 id(外键) |
| 2 | roleId | int(11) | 角色 id(外键) |
DROP TABLE IF EXISTS `users_role`;
CREATE TABLE `users_role` (
`usersId` int(11) NOT NULL,
`roleId` int(11) NOT NULL,
PRIMARY KEY (`usersId`,`roleId`),
KEY `roleId` (`roleId`),
CONSTRAINT `users_role_ibfk_1` FOREIGN KEY (`usersId`) REFERENCES `users` (`id`),
CONSTRAINT `users_role_ibfk_2` FOREIGN KEY (`roleId`) REFERENCES `role` (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
INSERT INTO `users_role` VALUES ('1', '1');
INSERT INTO `users_role` VALUES ('2', '2');
1.5 权限表
| 序号 | 字段名称 | 字段类型 | 字段描述 |
|---|---|---|---|
| 1 | id | int(11) | 主键，自增长 |
| 2 | permissionName | varchar(50) | 权限名 |
| 3 | url | varchar(50) | 资源路径 |
DROP TABLE IF EXISTS `permission`;
CREATE TABLE `permission` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`permissionName` varchar(50) DEFAULT NULL,
`url` varchar(50) DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;
INSERT INTO `permission` VALUES ('1', 'user', '/user/*.do');
INSERT INTO `permission` VALUES ('2', 'product', '/product/*.do');
INSERT INTO `permission` VALUES ('3', 'orders', '/orders/*.do');
INSERT INTO `permission` VALUES ('4', 'role', '/role/*.do');
INSERT INTO `permission` VALUES ('5', 'permission', '/permission/*.do');
INSERT INTO `permission` VALUES ('6', 'sysLog', '/sysLog/*.do');
1.6 角色与权限的中间表
| 序号 | 字段名称 | 字段类型 | 字段描述 |
|---|---|---|---|
| 1 | permissionId | int(11) | 权限 id(外键) |
| 2 | roleId | int(11) | 角色 id(外键) |
DROP TABLE IF EXISTS `role_permission`;
CREATE TABLE `role_permission` (
`permissionId` int(11) NOT NULL,
`roleId` int(11) NOT NULL,
PRIMARY KEY (`permissionId`,`roleId`),
KEY `roleId` (`roleId`),
CONSTRAINT `role_permission_ibfk_1` FOREIGN KEY (`permissionId`) REFERENCES `permission` (`id`),
CONSTRAINT `role_permission_ibfk_2` FOREIGN KEY (`roleId`) REFERENCES `role` (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
INSERT INTO `role_permission` VALUES ('2', '1');
INSERT INTO `role_permission` VALUES ('3', '1');
INSERT INTO `role_permission` VALUES ('1', '2');
INSERT INTO `role_permission` VALUES ('2', '2');
INSERT INTO `role_permission` VALUES ('3', '2');
INSERT INTO `role_permission` VALUES ('4', '2');
INSERT INTO `role_permission` VALUES ('5', '2');
INSERT INTO `role_permission` VALUES ('6', '2');
2. Spring Security
2.1 Spring Security 介绍
Spring Security 是 Spring 项目组中用来提供安全认证服务的框架。
安全包括两个主要操作：
- 认证：验证某个用户是否为系统中的合法主体，也就是说用户能否访问该系统。比如登陆时，校验用户名密码是否正确来完成认证过程。
- 授权：用户授权指的是验证某个用户是否有权限执行某个操作
2.2 Spring Security 快速入门
-
创建一个 maven 项目，骨架选择 web-app
-
导入依赖坐标
<dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-web</artifactId> <version>${spring.security.version}</version> </dependency> <dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-config</artifactId> <version>${spring.security.version}</version> </dependency> -
配置 web.xml
<context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:spring-security.xml</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <filter> <filter-name>springSecurityFilterChain</filter-name> <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class> </filter> <filter-mapping> <filter-name>springSecurityFilterChain</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> -
配置 spring-security.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:security="http://www.springframework.org/schema/security" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security.xsd"> <security:http auto-config="true" use-expressions="false"> <!-- intercept-url定义一个过滤规则 pattern表示对哪些 url 进行权限控制，access 属性表示在请求对应的 URL 时需要什么权限 --> <security:intercept-url pattern="/**" access="ROLE_USER"/> </security:http> <security:authentication-manager> <security:authentication-provider> <security:user-service> <!--配置用户信息--> <security:user name="user" password="{noop}user" authorities="ROLE_USER"/> <security:user name="admin" password="{noop}admin" authorities="ROLE_ADMIN"/> </security:user-service> </security:authentication-provider> </security:authentication-manager> </beans> -
测试
-
启动项目
tomcat7:run -
打开浏览器，输入
http://localhost:8090 -
自动进入登陆页面（因为我们配置了 auto-config=”true”，Spring Security 自动为我们生成了登陆页面）
http://localhost:8090/login -
输入以下内容，进入 index.jsp
User:user Password:user -
输入以下内容，报 403 错误（权限不够访问）
User:admin Password:admin -
输入其他内容，页面给出提示
User:123 Password:123
-
2.3 使用自定义页面
-
修改 spring-security.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:security="http://www.springframework.org/schema/security" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security.xsd"> <!-- 配置不过滤的资源（静态资源及登录相关） --> <security:http security="none" pattern="/login.html"/> <security:http security="none" pattern="/success.html"/> <security:http security="none" pattern="/failer.html"/> <security:http auto-config="true" use-expressions="false"> <!-- intercept-url定义一个过滤规则 pattern表示对哪些 url 进行权限控制，access 属性表示在请求对应的 URL 时需要什么权限 --> <security:intercept-url pattern="/**" access="ROLE_USER"/> <!-- 自定义登陆页面 login-page 自定义登陆页面， authentication-failure-url 用户权限校验失败之后才会跳转到这个页面， default-target-url 登陆成功后跳转的页面。 --> <security:form-login login-page="/login.html" login-processing-url="/login" username-parameter="username" password-parameter="password" authentication-failure-url="/failer.html" default-target-url="/success.html"/> <!-- 关闭 CSRF ,默认是开启的 --> <security:csrf disabled="true"/> </security:http> <security:authentication-manager> <security:authentication-provider> <security:user-service> <!--配置用户信息--> <security:user name="user" password="{noop}user" authorities="ROLE_USER"/> <security:user name="admin" password="{noop}admin" authorities="ROLE_ADMIN"/> </security:user-service> </security:authentication-provider> </security:authentication-manager> </beans> -
编写 login.html
<!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title></head> <body> <form action="login" method="post"> <table> <tr> <td>用户名：</td> <td><input type="text" name="username"/></td> </tr> <tr> <td>密码：</td> <td><input type="password" name="password"/></td> </tr> <tr> <td colspan="2" align="center"> <input type="submit" value="登录"/> <input type="reset" value="重置"/> </td> </tr> </table> </form> </body> </html> -
编写 success.html
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <title>Title</title> </head> <body> <h2>success</h2> </body> </html> -
编写 failer.html
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <title>Title</title> </head> <body> <h2>failer</h2> </body> </html> -
测试
-
启动项目
tomcat7:run -
打开浏览器，输入
http://localhost:8090 -
自动进入 login.html
http://localhost:8090/login.html -
输入以下内容，进入 success.html
User:user Password:user -
输入以下内容，进入 success.html
User:admin Password:admin -
输入其他内容，进入 failer.html
User:123 Password:123
-
2.4 Spring Security 使用数据库认证
在 Spring Security 中如果想要使用数据进行认证操作，有很多种操作方式，这里我们介绍使用 UserDetails，UserDetailsService 来完成操作。
-
UserDetails
UserDetails 是一个接口，作用是封装当前进行认证的用户信息，但由于其是一个接口，所以我们可以对其进行实现
-
UserDetailsService
UserDetailsService 是一个接口，作用是规范用于认证的方法，但由于其是一个接口，所以我们可以对其进行实现
3. 用户操作
3.1 用户登录与退出

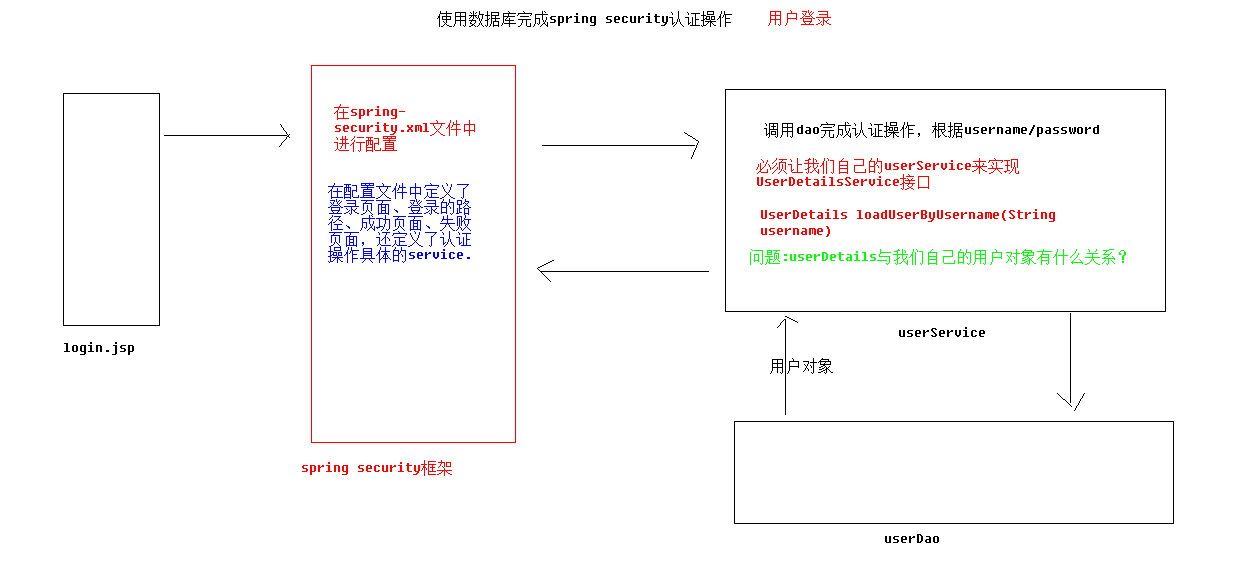

3.1.1 用户登录流程分析
3.1.2 实现用户登录操作
-
导入 Spring Security 依赖
<dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-web</artifactId> <version>${spring.security.version}</version> </dependency> <dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-config</artifactId> <version>${spring.security.version}</version> </dependency> <dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-core</artifactId> <version>${spring.security.version}</version> </dependency> <dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-taglibs</artifactId> <version>${spring.security.version}</version> </dependency> -
配置 web.xml
<!-- 配置 Spring 的监听器 --> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 设置配置文件的路径 --> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath*:spring-security.xml</param-value> </context-param> <!-- 配置 spring-security --> <filter> <filter-name>springSecurityFilterChain</filter-name> <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class> </filter> <filter-mapping> <filter-name>springSecurityFilterChain</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> -
配置 spring-security.xml（相当于代替了控制层的代码）
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:security="http://www.springframework.org/schema/security" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security.xsd"> <!-- 配置不拦截的资源 --> <security:http pattern="/login.jsp" security="none"/> <security:http pattern="/failer.jsp" security="none"/> <security:http pattern="/css/**" security="none"/> <security:http pattern="/img/**" security="none"/> <security:http pattern="/plugins/**" security="none"/> <!-- 配置具体的规则 auto-config="true" 不用自己编写登录的页面，框架提供默认登录页面 use-expressions="false" 是否使用 SPEL 表达式（没学习过） --> <security:http auto-config="true" use-expressions="false"> <!-- 配置具体的拦截的规则 pattern="请求路径的规则" access="访问系统的人，必须有 ROLE_USER 或者 ROLE_ADMIN 的角色" --> <security:intercept-url pattern="/**" access="ROLE_USER,ROLE_ADMIN"/> <!-- 定义跳转的具体的页面 --> <security:form-login login-page="/login.jsp" login-processing-url="/login.do" default-target-url="/index.jsp" authentication-failure-url="/failer.jsp" authentication-success-forward-url="/pages/main.jsp"/> <!-- 关闭跨域请求 --> <security:csrf disabled="true"/> <!-- 退出 --> <security:logout invalidate-session="true" logout-url="/logout.do" logout-success-url="/login.jsp" /> </security:http> <!-- 切换成数据库中的用户名和密码 --> <security:authentication-manager> <security:authentication-provider user-service-ref="userService"> </security:authentication-provider> </security:authentication-manager> </beans> -
编写实现类
/** * 用户实体类 */ public class UserInfo implements Serializable { private Integer id; // 主键 private String email; // 邮箱 private String username; // 用户名 private String password; // 密码 private String phoneNum; // 电话 private Integer status; // 状态(0未开启 1开启) private String statusStr; // 状态字符串 private List<Role> roles; // 角色 public Integer getId() { return id; } public void setId(Integer id) { this.id = id; } public String getEmail() { return email; } public void setEmail(String email) { this.email = email; } public String getUsername() { return username; } public void setUsername(String username) { this.username = username; } public String getPassword() { return password; } public void setPassword(String password) { this.password = password; } public String getPhoneNum() { return phoneNum; } public void setPhoneNum(String phoneNum) { this.phoneNum = phoneNum; } public Integer getStatus() { return status; } public void setStatus(Integer status) { this.status = status; } public String getStatusStr() { if(status != null){ if(status == 0){ statusStr = "未开启"; } if(status == 1){ statusStr = "开启"; } } return statusStr; } public void setStatusStr(String statusStr) { this.statusStr = statusStr; } public List<Role> getRoles() { return roles; } public void setRoles(List<Role> roles) { this.roles = roles; } @Override public String toString() { return "UserInfo{" + "id=" + id + ", email='" + email + '\'' + ", username='" + username + '\'' + ", password='" + password + '\'' + ", phoneNum='" + phoneNum + '\'' + ", status=" + status + ", statusStr='" + statusStr + '\'' + ", roles=" + roles + '}'; } }/** * 角色实体类 */ public class Role implements Serializable { private Integer id; // 主键 private String roleName; //角色名 private String roleDesc; // 角色描述 private List<Permission> permissions; // 权限 private List<UserInfo> users; // 角色 public Integer getId() { return id; } public void setId(Integer id) { this.id = id; } public String getRoleName() { return roleName; } public void setRoleName(String roleName) { this.roleName = roleName; } public String getRoleDesc() { return roleDesc; } public void setRoleDesc(String roleDesc) { this.roleDesc = roleDesc; } public List<Permission> getPermissions() { return permissions; } public void setPermissions(List<Permission> permissions) { this.permissions = permissions; } public List<UserInfo> getUsers() { return users; } public void setUsers(List<UserInfo> users) { this.users = users; } @Override public String toString() { return "Role{" + "id=" + id + ", roleName='" + roleName + '\'' + ", roleDesc='" + roleDesc + '\'' + ", permissions=" + permissions + ", users=" + users + '}'; } }/** * 权限实体类 */ public class Permission implements Serializable { private Integer id; // 主键 private String permissionName; // 权限名 private String url; // 资源路径 private List<Role> roles; // 角色 public Integer getId() { return id; } public void setId(Integer id) { this.id = id; } public String getPermissionName() { return permissionName; } public void setPermissionName(String permissionName) { this.permissionName = permissionName; } public String getUrl() { return url; } public void setUrl(String url) { this.url = url; } public List<Role> getRoles() { return roles; } public void setRoles(List<Role> roles) { this.roles = roles; } @Override public String toString() { return "Permission{" + "id=" + id + ", permissionName='" + permissionName + '\'' + ", url='" + url + '\'' + ", roles=" + roles + '}'; } } -
编写持久层接口
@Repository public interface UserDao { /** * 根据用户名查询用户信息 * @param userName * @return * @throws Exception */ @Select("select * from users where userName = #{userName}") @Results({ @Result(id = true, property = "id", column = "id"), @Result(property = "email", column = "email"), @Result(property = "username", column = "username"), @Result(property = "password", column = "password"), @Result(property = "phoneNum", column = "phoneNum"), @Result(property = "status", column = "status"), @Result(property = "roles", column = "id", many = @Many(select = "com.zt.dao.RoleDao.findById")) }) UserInfo findByUsername(String userName) throws Exception; }public interface RoleDao { /** * 根据用户 ID 查询用户角色 * * @param id * @return */ @Select("select * from role where id in (select roleId from users_role where usersId = #{id})") List<Role> findById(Integer id) throws Exception; } -
编写业务层接口和实现类
public interface UserService extends UserDetailsService { }@Service("userService") public class UserServiceImpl implements UserService { @Autowired private UserDao userDao; @Override public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException { UserInfo userInfo = null; try { userInfo = userDao.findByUsername(username); } catch (Exception e) { e.printStackTrace(); } // 将自己的用户对象封装为一个 UserDetails User user = new User(userInfo.getUsername(), "{noop}" + userInfo.getPassword(), userInfo.getStatus() == 1, true, true, true, getAuthorities(userInfo.getRoles())); return user; } // 返回一个 List 集合，集合中装的是角色信息 public List<SimpleGrantedAuthority> getAuthorities(List<Role> roles){ ArrayList<SimpleGrantedAuthority> authorities = new ArrayList<>(); for (Role role : roles) { authorities.add(new SimpleGrantedAuthority("ROLE_"+role.getRoleName())); } return authorities; } } -
在 webapp 下添加 login.jsp，failer.jsp
3.1.3 实现用户退出操作
-
配置 spring-security.xml
<!-- 退出 --> <security:logout invalidate-session="true" logout-url="/logout.do" logout-success-url="/login.jsp" /> -
给注销按钮链接赋值
${pageContext.request.contextPath}/logout.do
3.2 查询所有用户

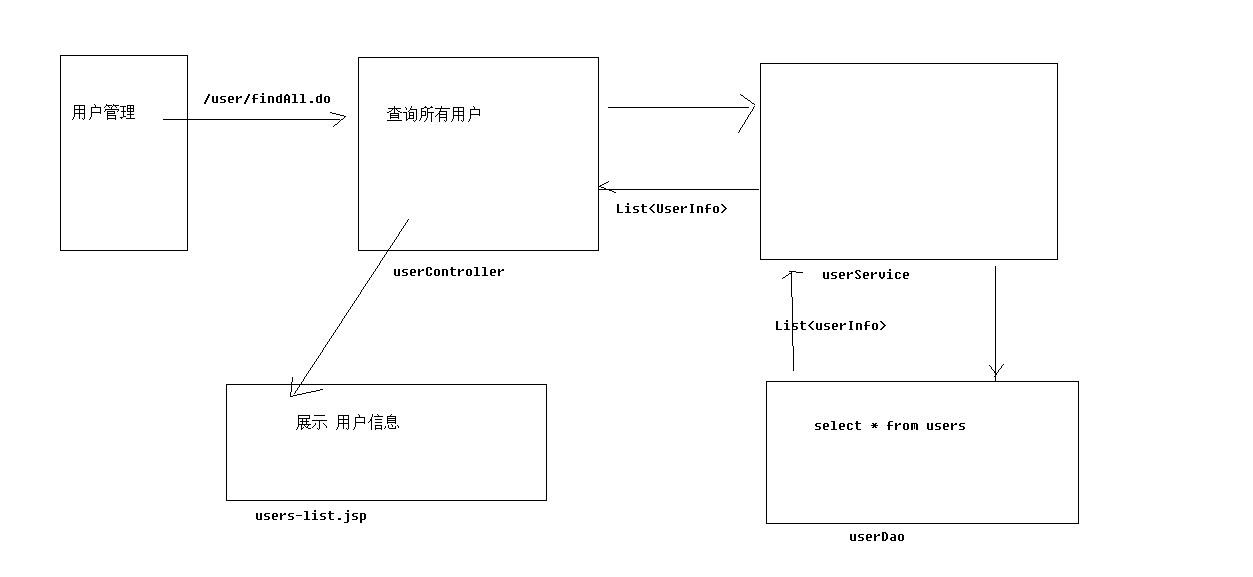

3.2.1 查询所有用户流程分析
3.2.2 实现查询所有用户操作
-
编写持久层接口
package com.zt.dao; import com.zt.domain.UserInfo; import org.apache.ibatis.annotations.Many; import org.apache.ibatis.annotations.Result; import org.apache.ibatis.annotations.Results; import org.apache.ibatis.annotations.Select; import org.springframework.stereotype.Repository; import java.util.List; @Repository public interface UserDao { /** * 查询所有用户信息 * @return * @throws Exception */ @Select("select * from users") List<UserInfo> findAll() throws Exception; } -
编写业务层接口和实现类
public interface UserService extends UserDetailsService { /** * 查询所有用户 * @return * @throws Exception */ List<UserInfo> findAll() throws Exception; }@Service("userService") public class UserServiceImpl implements UserService { @Autowired private UserDao userDao; /** * 查询所有用户 * @return * @throws Exception */ @Override public List<UserInfo> findAll() throws Exception { return userDao.findAll(); } } -
编写控制层
@Controller @RequestMapping("/user") public class UserController { @Autowired private UserService userService; /** * 查询所有用户 * @return * @throws Exception */ @RequestMapping("/findAll") public ModelAndView findAll() throws Exception{ ModelAndView modelAndView = new ModelAndView(); List<UserInfo> users = userService.findAll(); modelAndView.addObject("userList",users); modelAndView.setViewName("user-list"); return modelAndView; } } -
编写 JSP 页面
在 pages 包中创建 user-list.jsp
3.3 添加用户

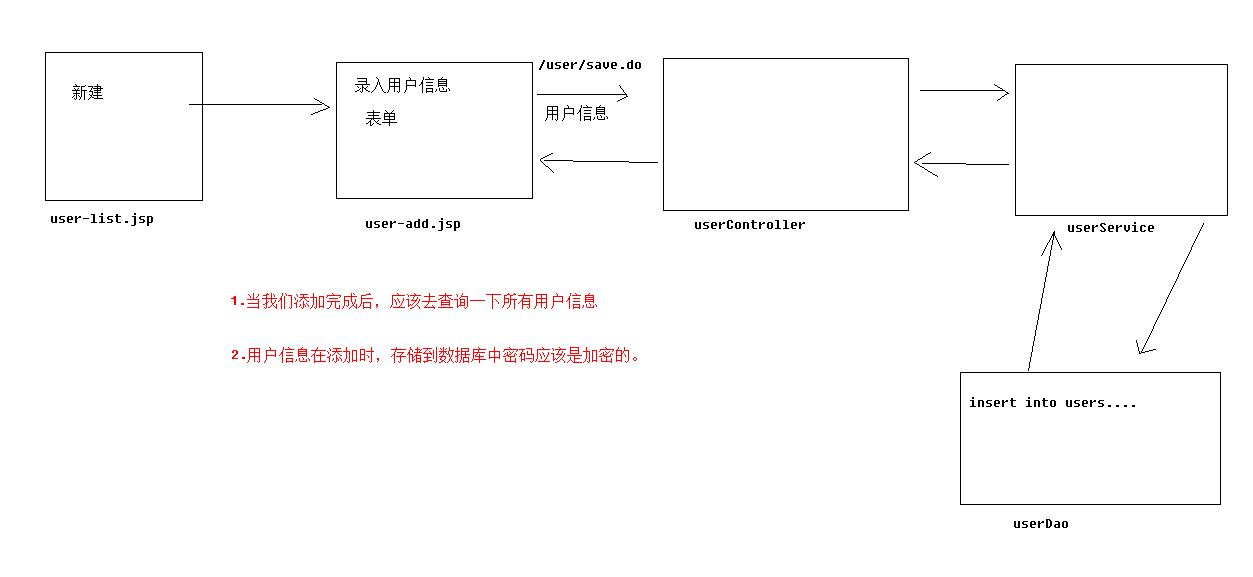

3.3.1 添加用户流程分析
3.3.2 实现添加用户操作
-
配置 spring-security.xml
<!-- 配置加密类 --> <bean id="passwordEncoder" class="org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder"/> -
编写持久层接口
package com.zt.dao; import com.zt.domain.UserInfo; import org.apache.ibatis.annotations.*; import org.springframework.stereotype.Repository; import java.util.List; @Repository public interface UserDao { /** * 添加用户 * @param userInfo * @throws Exception */ @Insert("insert into users(email,userName,password,phoneNum,status) values(#{email},#{username},#{password},#{phoneNum},#{status})") void save(UserInfo userInfo) throws Exception; } -
编写业务层接口和实现类
public interface UserService extends UserDetailsService { /** * 添加用户 * @param userInfo * @throws Exception */ void save(UserInfo userInfo) throws Exception; }@Service("userService") public class UserServiceImpl implements UserService { @Autowired private UserDao userDao; @Autowired private PasswordEncoder passwordEncoder; /** * 添加用户 * * @param userInfo * @throws Exception */ @Override public void save(UserInfo userInfo) throws Exception { // 对密码进行加密 userInfo.setPassword(passwordEncoder.encode(userInfo.getPassword())); userDao.save(userInfo); } } -
编写控制层
@Controller @RequestMapping("/user") public class UserController { @Autowired private UserService userService; /** * 添加用户 * @param userInfo * @return * @throws Exception */ @RequestMapping("/save.do") public String save(UserInfo userInfo) throws Exception{ userService.save(userInfo); return "redirect:findAll.do"; } } -
编写 JSP 页面
在 pages 包中创建 user-add.jsp
3.3.3 解决密码加密后用户登录问题
-
提出问题
添加用户后，由于密码进行了加密，当我们用添加的用户进行登录时，登陆失败了
-
分析问题
这是因为我们数据库中存储的密码是加密后的，我们读取时并没有对其解密，所以与输入密码不一致
-
解决问题
-
配置 spring-security.xml
<!-- 切换成数据库中的用户名和密码 --> <security:authentication-manager> <security:authentication-provider user-service-ref="userService"> <!-- 配置加密的方式 --> <security:password-encoder ref="passwordEncoder"/> </security:authentication-provider> </security:authentication-manager> -
删除 UserServiceImpl 中的 “{noop}”
@Service("userService") public class UserServiceImpl implements UserService { @Autowired private UserDao userDao; @Override public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException { UserInfo userInfo = null; try { userInfo = userDao.findByUsername(username); } catch (Exception e) { e.printStackTrace(); } // 将自己的用户对象封装为一个 UserDetails User user = new User(userInfo.getUsername(), userInfo.getPassword(), userInfo.getStatus() == 1, true, true, true, getAuthorities(userInfo.getRoles())); return user; } // 返回一个 List 集合，集合中装的是角色信息 public List<SimpleGrantedAuthority> getAuthorities(List<Role> roles) { ArrayList<SimpleGrantedAuthority> authorities = new ArrayList<>(); for (Role role : roles) { authorities.add(new SimpleGrantedAuthority("ROLE_" + role.getRoleName())); } return authorities; } }
-
3.4 查询用户详情

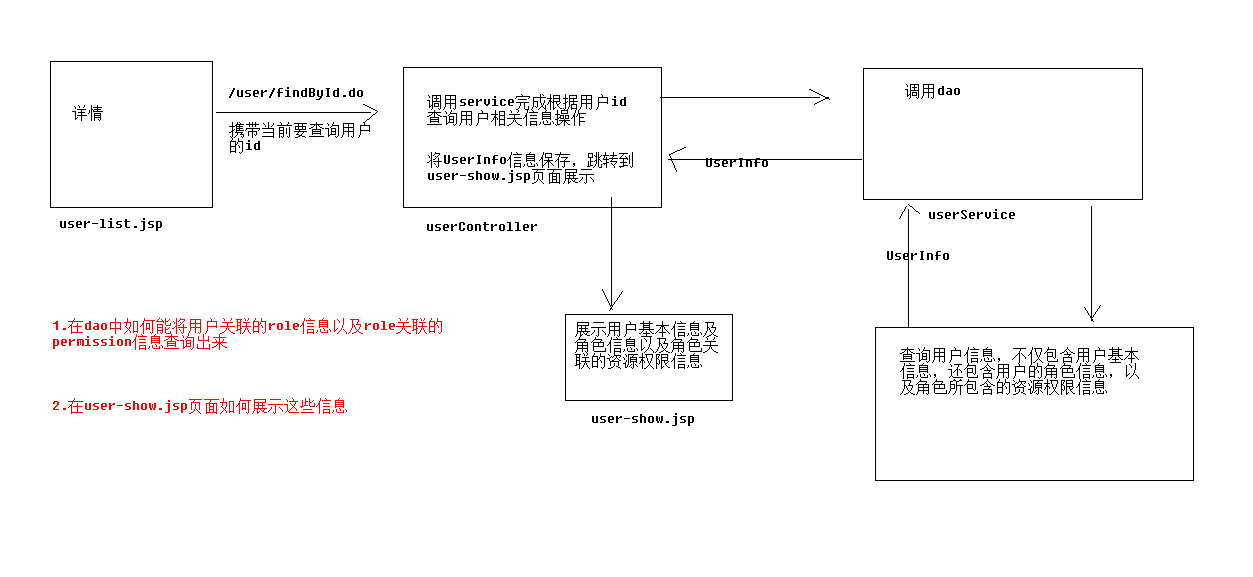

3.4.1 查询用户详情流程分析
3.4.2 实现查询用户详情操作
-
编写持久层接口
@Repository public interface UserDao { /** * 查询单个用户详细信息 * * @param id * @return * @throws Exception */ @Select("select * from users where id=#{id}") @Results({ @Result(id = true, property = "id", column = "id"), @Result(property = "email", column = "email"), @Result(property = "username", column = "username"), @Result(property = "password", column = "password"), @Result(property = "phoneNum", column = "phoneNum"), @Result(property = "status", column = "status"), @Result(property = "roles", column = "id", many = @Many(select = "com.zt.dao.RoleDao.findById")) }) UserInfo findById(Integer id) throws Exception; }@Repository public interface RoleDao { /** * 根据用户 ID 查询角色 * * @param id * @return */ @Select("select * from role where id in (select roleId from users_role where usersId = #{id})") @Results({ @Result(id = true, property = "id", column = "id"), @Result(property = "roleName", column = "roleName"), @Result(property = "roleDesc", column = "roleDesc"), @Result(property = "permissions", column ="id",many = @Many(select = "com.zt.dao.PermissionDao.findById")) }) List<Role> findById(Integer id) throws Exception; }@Repository public interface PermissionDao { /** * 根据角色 ID 查询权限 * @param id * @return * @throws Exception */ @Select("select * from permission where id in (select permissionId from role_permission where roleId = #{id})") List<Permission> findById(Integer id) throws Exception; } -
编写业务层接口和实现类
public interface UserService extends UserDetailsService { /** * 查询单个用户详细信息 * @param id * @return * @throws Exception */ UserInfo findById(Integer id) throws Exception; }@Service("userService") public class UserServiceImpl implements UserService { @Autowired private UserDao userDao; /** * 查询单个用户详细信息 * @param id * @return * @throws Exception */ @Override public UserInfo findById(Integer id) throws Exception { return userDao.findById(id); } } -
编写控制层
@Controller @RequestMapping("/user") public class UserController { @Autowired private UserService userService; /** * 查询单个用户详细信息 * @param id * @return * @throws Exception */ @RequestMapping("/findById.do") public ModelAndView findById(Integer id) throws Exception{ ModelAndView modelAndView = new ModelAndView(); UserInfo user = userService.findById(id); modelAndView.addObject("user",user); modelAndView.setViewName("user-show"); return modelAndView; } } -
编写 JSP 页面
在 pages 包中创建 user-show.jsp
4. 角色操作
4.1 查询所有角色
4.1.1 查询所有角色流程分析
4.1.2 实现查询所有角色操作
-
编写持久层接口
@Repository public interface RoleDao { /** * 查询所有角色 * @return * @throws Exception */ @Select("select * from role") List<Role> findAll() throws Exception; } -
编写业务层接口和实现类
public interface RoleService { /** * 查询所有角色 * @return * @throws Exception */ List<Role> findAll() throws Exception; }@Transactional @Service("roleService") public class RoleServiceImpl implements RoleService { @Autowired private RoleDao roleDao; /** * 查询所有角色 * @return * @throws Exception */ @Override public List<Role> findAll() throws Exception { return roleDao.findAll(); } } -
编写控制层
@Controller @RequestMapping("/role") public class RoleController { @Autowired private RoleService roleService; /** * 查询所有角色 * @return * @throws Exception */ @RequestMapping("/findAll.do") public ModelAndView findAll() throws Exception { ModelAndView modelAndView = new ModelAndView(); List<Role> roleList = roleService.findAll(); modelAndView.addObject("roleList",roleList); modelAndView.setViewName("role-list"); return modelAndView; } } -
编写 JSP 页面
在 pages 包中创建 role-list.jsp
4.2 添加角色

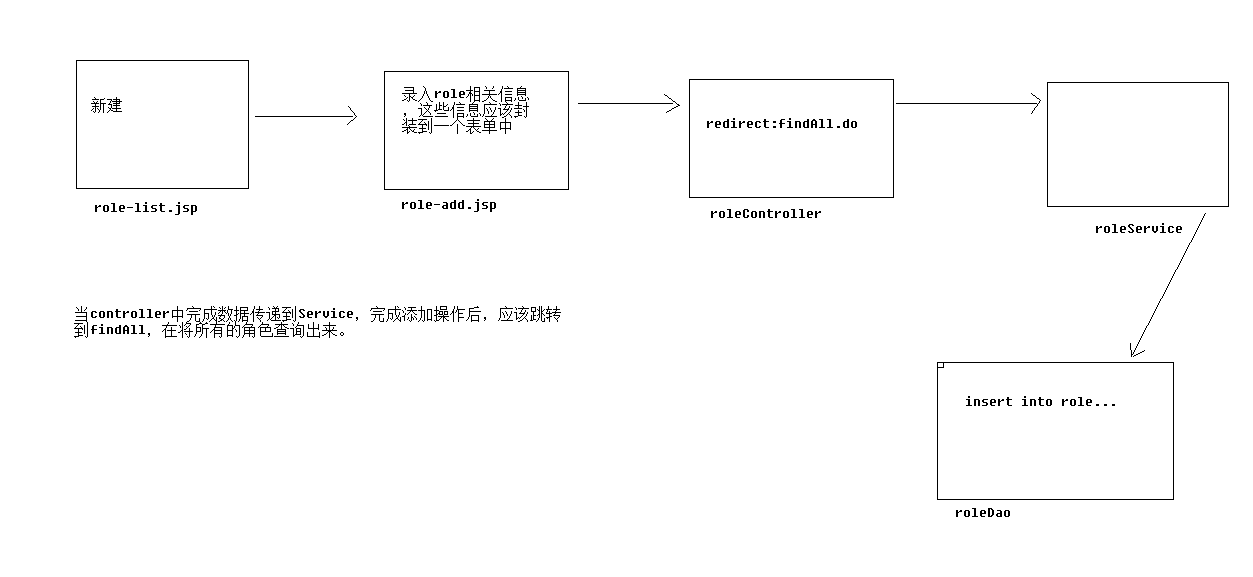

4.2.1 添加角色流程分析
4.2.2 实现添加角色操作
-
编写持久层接口
@Repository public interface RoleDao { /** * 添加角色 * @param role * @throws Exception */ @Insert("insert into role(roleName,roleDesc) values(#{roleName},#{roleDesc})") void save(Role role) throws Exception; } -
编写业务层接口和实现类
public interface RoleService { /** * 添加角色 * @param role * @throws Exception */ void save(Role role) throws Exception; }@Transactional @Service("roleService") public class RoleServiceImpl implements RoleService { @Autowired private RoleDao roleDao; /** * 添加角色 * @param role * @throws Exception */ @Override public void save(Role role) throws Exception { roleDao.save(role); } } -
编写控制层
@Controller @RequestMapping("/role") public class RoleController { @Autowired private RoleService roleService; /** * 添加角色 * @param role * @return * @throws Exception */ @RequestMapping("/save.do") public String save(Role role) throws Exception { roleService.save(role); return "redirect:findAll.do"; } } -
编写 JSP 页面
在 pages 包中创建 user-add.jsp
4.3 查询角色详情
4.3.1 实现查询角色详情操作
-
编写持久层接口
@Repository public interface RoleDao { /** * 查询角色详情 * * @param id * @return */ @Select("select * from role where id=#{id}") @Results({ @Result(id = true, property = "id", column = "id"), @Result(property = "roleName",column = "roleName"), @Result(property = "roleDesc",column = "roleDesc"), @Result(property = "permissions", column = "id", many = @Many(select = "com.zt.dao.PermissionDao.findById")) }) Role findByRoleId(Integer id) throws Exception; } -
编写业务层接口和实现类
public interface RoleService { /** * 查询角色详情 * @param id * @return * @throws Exception */ Role findById(Integer id) throws Exception; }@Transactional @Service("roleService") public class RoleServiceImpl implements RoleService { @Autowired private RoleDao roleDao; /** * 查询角色详情 * @param id * @return * @throws Exception */ @Override public Role findById(Integer id) throws Exception { return roleDao.findByRoleId(id); } } -
编写控制层
@Controller @RequestMapping("/role") public class RoleController { @Autowired private RoleService roleService; /** * 查询角色详情 * @param id * @return * @throws Exception */ @RequestMapping("/findById.do") public ModelAndView findById(Integer id) throws Exception { ModelAndView modelAndView = new ModelAndView(); Role role = roleService.findById(id); modelAndView.addObject("role",role); modelAndView.setViewName("role-show"); return modelAndView; } } -
编写 JSP 页面
在 pages 包中创建 role-show.jsp
4.4 删除角色
4.4.1 实现删除角色操作
-
编写持久层接口
@Repository public interface RoleDao { /** * 删除角色所拥有的所有权限 * @param id * @throws Exception */ @Delete("delete from role_permission where roleId = #{id}") void deleteFromRole_PermissionByRoleId(Integer id) throws Exception; /** * 删除用户所拥有的这种角色 * @param id * @throws Exception */ @Delete("delete from users_role where roleId = #{id}") void deleteFromUsers_RoleByRoleId(Integer id) throws Exception; /** * 删除角色 * @param id * @throws Exception */ @Delete("delete from role where id = #{id}") void deleteRole(Integer id) throws Exception; } -
编写业务层接口和实现类
public interface RoleService { /** * 删除角色 * @param id * @throws Exception */ void deleteRole(Integer id) throws Exception; }@Transactional @Service("roleService") public class RoleServiceImpl implements RoleService { @Autowired private RoleDao roleDao; /** * 删除角色 * @param id * @throws Exception */ @Override public void deleteRole(Integer id) throws Exception { roleDao.deleteFromRole_PermissionByRoleId(id); roleDao.deleteFromUsers_RoleByRoleId(id); roleDao.deleteRole(id); } } -
编写控制层
@Controller @RequestMapping("/role") public class RoleController { @Autowired private RoleService roleService; /** * 删除角色 * @param id * @return * @throws Exception */ @RequestMapping("/deleteRole.do") public String deleteRole(Integer id) throws Exception { roleService.deleteRole(id); return "redirect:findAll.do"; } }
5. 权限操作
5.1 查询所有权限
5.1.1 实现查询所有权限操作
-
编写持久层接口
@Repository public interface PermissionDao { /** * 查询所有权限 * @return * @throws Exception */ @Select("select * from permission") List<Permission> findAll() throws Exception; } -
编写业务层接口和实现类
public interface PermissionService { /** * 查询所有权限 * @return * @throws Exception */ List<Permission> findAll() throws Exception; }@Transactional @Service("permissionService") public class PermissionServiceImpl implements PermissionService { @Autowired private PermissionDao permissionDao; /** * 查询所有权限 * @return * @throws Exception */ @Override public List<Permission> findAll() throws Exception { return permissionDao.findAll(); } } -
编写控制层
@Controller @RequestMapping("/permission") public class PermissionController { @Autowired private PermissionService permissionService; /** * 查询所有权限 * @return * @throws Exception */ @RequestMapping("/findAll.do") public ModelAndView findAll() throws Exception { ModelAndView modelAndView = new ModelAndView(); List<Permission> permissionList = permissionService.findAll(); modelAndView.addObject("permissionList",permissionList); modelAndView.setViewName("permission-list"); return modelAndView; } } -
编写 JSP 页面
在 pages 包中创建 permission-list.jsp
5.2 添加权限
5.2.1 实现添加权限操作
-
编写持久层接口
@Repository public interface PermissionDao { /** * 添加权限 * @param permission * @throws Exception */ @Insert("insert into permission(permissionName,url) values(#{permissionName},#{url})") void save(Permission permission) throws Exception; } -
编写业务层接口和实现类
public interface PermissionService { /** * 添加权限 * @throws Exception */ void save(Permission permission) throws Exception; }@Transactional @Service("permissionService") public class PermissionServiceImpl implements PermissionService { @Autowired private PermissionDao permissionDao; /** * 添加权限 * @param permission * @throws Exception */ @Override public void save(Permission permission) throws Exception { permissionDao.save(permission); } } -
编写控制层
@Controller @RequestMapping("/permission") public class PermissionController { @Autowired private PermissionService permissionService; /** * 添加权限 * @param permission * @return * @throws Exception */ @RequestMapping("/save.do") public String save(Permission permission) throws Exception { permissionService.save(permission); return "redirect:findAll.do"; } } -
编写 JSP 页面
在 pages 包中创建 permission-add.jsp
5.3 删除权限
5.3.1 实现删除权限操作
-
编写持久层接口
@Repository public interface PermissionDao { /** * 删除角色所拥有的该权限 * @param id */ @Delete("delete from role_permission where permissionId = #{id}") void deleteFromRole_PermissionByPermissionId(Integer id) throws Exception; /** * 删除权限 * @param id */ @Delete("delete from permission where id = #{id}") void deletePermission(Integer id) throws Exception; } -
编写业务层接口和实现类
public interface PermissionService { /** * 删除权限 * @param id * @throws Exception */ void deletePermission(Integer id) throws Exception; }@Transactional @Service("permissionService") public class PermissionServiceImpl implements PermissionService { @Autowired private PermissionDao permissionDao; /** * 删除权限 * @param id * @throws Exception */ @Override public void deletePermission(Integer id) throws Exception { permissionDao.deleteFromRole_PermissionByPermissionId(id); permissionDao.deletePermission(id); } } -
编写控制层
@Controller
@RequestMapping("/permission")
public class PermissionController {
@Autowired
private PermissionService permissionService;
/**
* 删除权限
* @param id
* @return
* @throws Exception
*/
@RequestMapping("/deletePermission.do")
public String deletePermission(Integer id) throws Exception {
permissionService.deletePermission(id);
return "redirect:findAll.do";
}
}
6. 权限关联与控制
6.1 用户关联角色

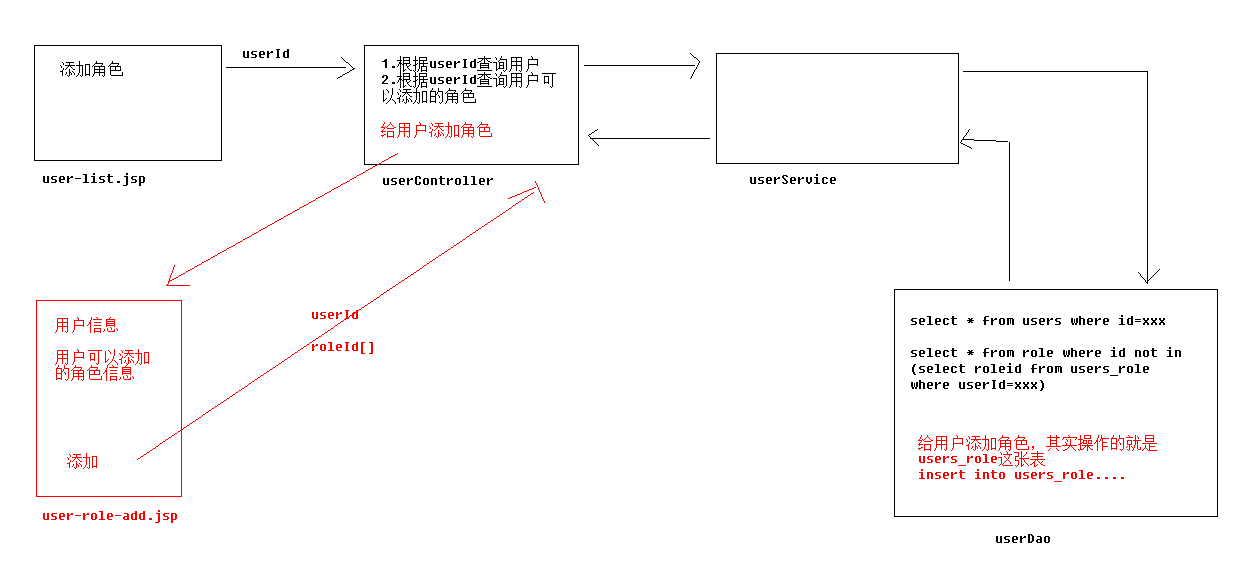

6.1.1 用户关联角色流程分析
- 先查询出这个用户没有的角色信息
- 给用户添加角色就是向 users_role 插入数据
6.1.2 实现用户关联角色操作
-
编写持久层接口
@Repository public interface UserDao { /** * 获取可以添加的角色信息 * * @param id * @return */ @Select("select * from role where id not in (select roleId from users_role where usersId = #{id})") List<Role> findOtherRole(Integer id) throws Exception; /** * 给用户添加角色 * * @param userId * @param id * @throws Exception */ @Insert("insert into users_role values(#{userId},#{id})") void addRoleToUser(@Param("userId") Integer userId, @Param("id") Integer id) throws Exception; } -
编写业务层接口和实现类
public interface UserService extends UserDetailsService { /** * 获取可以添加的角色信息 * @param id * @return * @throws Exception */ List<Role> findOtherRole(Integer id) throws Exception; /** * 给用户添加角色 * @param userId * @param ids */ void addRoleToUser(Integer userId, Integer[] ids) throws Exception; }@Transactional @Service("userService") public class UserServiceImpl implements UserService { @Autowired private UserDao userDao; /** * 获取可以添加的角色信息 * * @param id * @return * @throws Exception */ @Override public List<Role> findOtherRole(Integer id) throws Exception { return userDao.findOtherRole(id); } /** * 给用户添加角色 * * @param userId * @param ids */ @Override public void addRoleToUser(Integer userId, Integer[] ids) throws Exception{ for (Integer id : ids) { userDao.addRoleToUser(userId, id); } } } -
编写控制层
@Controller @RequestMapping("/user") public class UserController { @Autowired private UserService userService; /** * 查找要添加角色的用户，及可以添加的角色 * * @param id 用户 id * @return * @throws Exception */ @RequestMapping("/findUserByIdAndAllRole.do") public ModelAndView findUserByIdAndAllRole(Integer id) throws Exception { ModelAndView modelAndView = new ModelAndView(); UserInfo user = userService.findById(id); List<Role> roleList = userService.findOtherRole(id); modelAndView.addObject("user", user); modelAndView.addObject("roleList", roleList); modelAndView.setViewName("user-role-add"); return modelAndView; } /** * 给用户添加角色 * @param userId * @param ids * @return */ @RequestMapping("/addRoleToUser.do") public String addRoleToUser(Integer userId, Integer[] ids) throws Exception { userService.addRoleToUser(userId, ids); return "redirect:findAll.do"; } } -
编写 JSP 页面
在 pages 包中创建 user-role-add.jsp
6.2 角色关联权限
6.2.1 角色关联权限流程分析
- 先查询出这个角色没有的权限信息
- 给角色添加权限就是向 role_permission 插入数据
6.2.2 实现角色关联权限操作
-
编写持久层接口
@Repository public interface RoleDao { /** * 获取可以添加的权限信息 * * @param id * @return * @throws Exception */ @Select("select * from permission where id not in (select permissionId from role_permission where roleId = #{id})") List<Permission> findOtherPermission(Integer id) throws Exception; /** * 给角色添加权限 * * @param roleId * @param id */ @Insert("insert into role_permission values(#{id}, #{roleId})") void addPermissionToRole(@Param("roleId") Integer roleId, @Param("id") Integer id) throws Exception; } -
编写业务层接口和实现类
public interface RoleService { /** * 获取可以添加的权限信息 * @param id * @return * @throws Exception */ List<Permission> findOtherPermission(Integer id) throws Exception; /** * 给角色添加权限 * @param roleId * @param ids * @throws Exception */ void addPermissionToRole(Integer roleId, Integer[] ids) throws Exception; }@Transactional @Service("roleService") public class RoleServiceImpl implements RoleService { @Autowired private RoleDao roleDao; /** * 获取可以添加的权限信息 * @param id * @return * @throws Exception */ @Override public List<Permission> findOtherPermission(Integer id) throws Exception { return roleDao.findOtherPermission(id); } /** * 给角色添加权限 * @param roleId * @param ids * @throws Exception */ @Override public void addPermissionToRole(Integer roleId, Integer[] ids) throws Exception { for (Integer id : ids) { roleDao.addPermissionToRole(roleId,id); } } } -
编写控制层
@Controller @RequestMapping("/role") public class RoleController { @Autowired private RoleService roleService; /** * 查找要添加权限的角色，及可以添加的权限 * * @param id * @return */ @RequestMapping("/findRoleByIdAndAllPermission.do") public ModelAndView findRoleByIdAndAllPermission(Integer id) throws Exception { ModelAndView modelAndView = new ModelAndView(); Role role = roleService.findById(id); List<Permission> permissionList = roleService.findOtherPermission(id); modelAndView.addObject("role", role); modelAndView.addObject("permissionList", permissionList); modelAndView.setViewName("role-permission-add"); return modelAndView; } /** * 给角色添加权限 * @param roleId * @param ids * @return * @throws Exception */ @RequestMapping("/addPermissionToRole.do") public String addPermissionToRole(Integer roleId, Integer[] ids) throws Exception { roleService.addPermissionToRole(roleId, ids); return "redirect:findAll.do"; } } -
编写 JSP 页面
在 pages 包中创建 role-permission-add.jsp
6.3 服务器端方法级权限控制
在服务器端我们可以通过 Spring Security 提供的注解来对方法进行权限控制。Spring Security 在方法的权限控制上支持三种类型的注解，JSR-250 注解、@Secured 注解和支持表达式的注解。
下面介绍 JSR-250 注解的使用，其他两种注解与之类似。
6.3.1 JSR-250 注解的使用
-
导入 JSR-250 的依赖
<dependency> <groupId>javax.annotation</groupId> <artifactId>jsr250-api</artifactId> <version>1.0</version> </dependency> -
在 spring-security.xml 中开启 JSR-250 注解
<!--开启 JSR-250 注解使用--> <security:global-method-security jsr250-annotations="enabled"/> -
在 controller 中指定的方法上使用 JSR-250 注解
/** * 查询所有用户 * * @return * @throws Exception */ @RequestMapping("/findAll.do") @RolesAllowed("ADMIN") public ModelAndView findAll() throws Exception { ModelAndView modelAndView = new ModelAndView(); List<UserInfo> users = userService.findAll(); modelAndView.addObject("userList", users); modelAndView.setViewName("user-list"); return modelAndView; }
6.4 页面端权限控制
6.4.1 authentication 标签
-
作用
获取当前正在操作的用户信息
-
使用步骤
-
导入依赖
<dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-taglibs</artifactId> <version>${spring.security.version}</version> </dependency> -
配置 spring-security.xml
<!--开启表达式的权限控制--> <bean id="webexpressionHandler" class="org.springframework.security.web.access.expression.DefaultWebSecurityExpressionHandler"/> -
在 jsp 页面导入
<%@taglib uri="http://www.springframework.org/security/tags" prefix="security"%> -
在 JSP 中获取正在操作的用户信息
<security:authentication property="principal.username"></security:authentication>
-
6.4.2 authorize 标签
-
作用
用于控制页面上的标签是否有权限显示
-
使用步骤
-
导入依赖
<dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-taglibs</artifactId> <version>${spring.security.version}</version> </dependency> -
配置 spring-security.xml
<!--开启表达式的权限控制--> <bean id="webexpressionHandler" class="org.springframework.security.web.access.expression.DefaultWebSecurityExpressionHandler"/> -
在 jsp 页面导入
<%@taglib uri="http://www.springframework.org/security/tags" prefix="security"%> -
在 JSP 中控制页面上的标签是否有权限显示
<security:authorize access="hasRole('ADMIN')"></security:authorize>
-
